NZXT
NZXT H7 Flow RGB Mid-Tower ATX Airflow Case with RGB Fans CMH72FBR1
(No reviews yet)
Write a Review
- SKU:
- 20823155
- MPN:
- 285865
- Availability:
- Usually ships in 1-2 business days. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/25/2025 04:42:06 AM PST
- Stock Update:
- 12/25/2025 04:42:06 AM PST
Description
This item is brand-new, factory sealed.

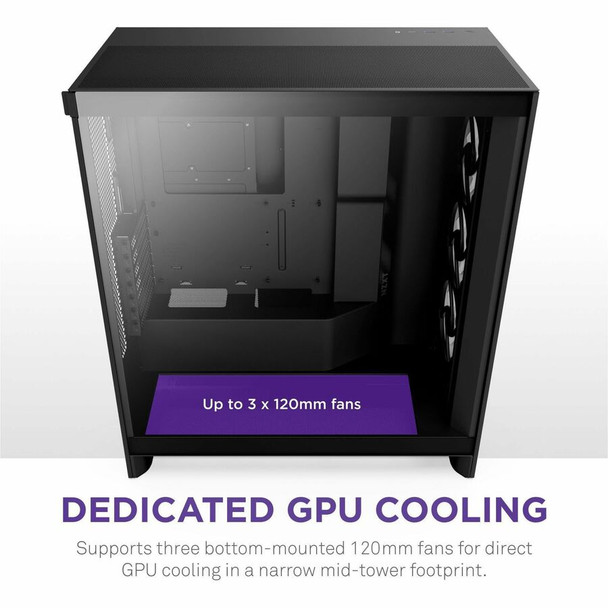

The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.-Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
-Comes equipped with a F360 RGB Core single-frame fan for exceptional out-of-the-box cooling and RGB lighting.
-High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
-Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.

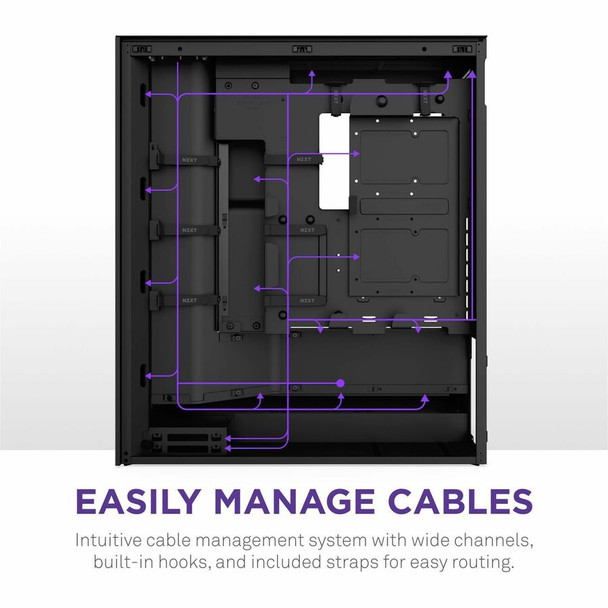

-Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
-Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.

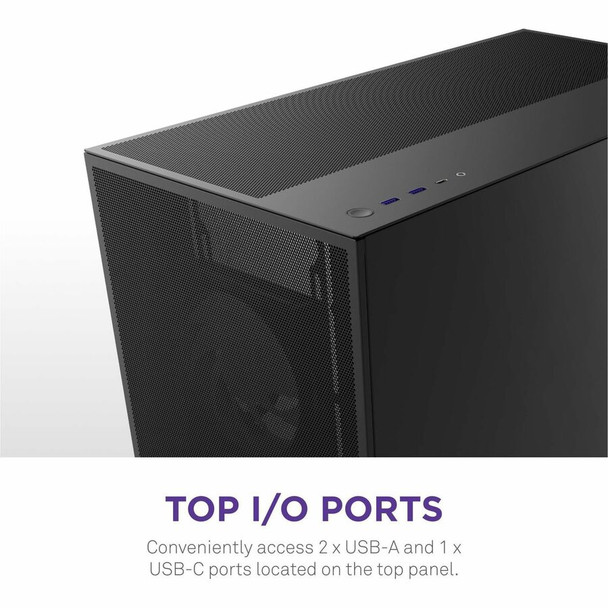

-Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.

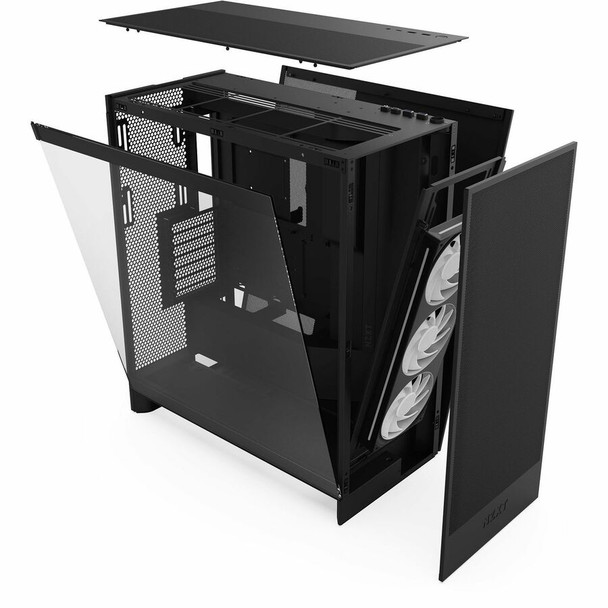

-Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Inside the Box
-H7 Flow RGB1
-F360 RGB Core (pre-installed, case version)1
-Installation Accessories1
-Manual1 Key Specs
Motherboard Support:E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX
Enclosure Type:Mid-Tower
Case Material:SGCC Steel, Dark Tinted Tempered Glass (Black) Compatibility and Clearance
CPU Cooler Height:Up to 185mm
GPU Length:Up to 410 mm
PSU Length:Up to 200 mm
Cable Management:Up to 34.5 mm
Top Mounted 140mm / 280mm Radiator and Fan Combined Thickness:Up to 57 mm Front I/O Ports
USB 3.2 Gen 1 Type-A:2
USB 3.2 Gen 2x2 Type-C (20 Gbps):1
Headset Audio Jack:1 Expansion Slots
Standard:7
Vertical:0 Drive Bays
2.5":2+2
3.5":2 Fan Support
Front:3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included)
Top:3 x 120 mm / 2 x 140 mm
Bottom:3 x 120 mm
Rear:1 x 120 mm / 1 x 140 mm
Filters:High-Performance Mesh Radiator Support
Front:Up to 420 mm
Top:Up to 360mm
Rear:Up to 140mm Fan Specs
Model:F360 RGB Core Fan (Case Version)
Speed:1,700 +/- 200 RPM
Airflow:50.1 CFM
Static:1.27 mm-H2O
Noise:23.3 dBA
Fan Connector:3-pinItem Dimension (L"xW"xH")
26 x 13 x 23
Weight
56.00lbs
Warranty Information
2 Years
Specs
| Physical Characteristics | |
| Product Material |
|
| Form Factor | Mid-tower |
| Weight (Approximate) | 24.54 lb |
| Cooler Type | Fan Cooler |
| Product Color | Matte Black |
| Height | 21.4" |
| Color Family | Black |
| Maximum GPU Length | 16.14" |
| Maximum PSU Length | 7.87" |
| Width | 9.6" |
| Depth | 18.4" |
| Maximum CPU Cooler Height | 7.28" |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Interfaces/Ports | |
| Total Number of Audio Out Ports | 1 |
| USB Port Details |
|
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Front USB | Yes |
| Total Number of USB Ports | 3 |
| Total Number of Audio In Ports | 1 |
| Bays | |
| Number of Internal 2.5" Bays | 4 |
| Number of Internal 3.5" Bays | 2 |
| General Information | |
| Brand Name | NZXT |
| Manufacturer Website Address | http://www.nzxt.com |
| Marketing Information | The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint. Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint. Comes equipped with a F360 RGB Core single-frame fan for exceptional out-of-the-box cooling and RGB lighting. High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust. Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential. Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing. Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear. Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel. Tool-less access to the front, top, and side panels makes building and upgrading a breeze. |
| Product Type | Computer Case |
| Product Name | H7 Flow RGB Mid-Tower ATX Airflow Case with RGB Fans |
| Manufacturer | NZXT Corporation |
| Manufacturer Part Number | CM-H72FB-R1 |
| Product Model | CM-H72FB-R1 |
| Product Line | H7 Flow |
| Packaged Quantity | 1 |
| Technical Information | |
| Motherboard Supported |
|
| Installed Fan Size | 4.72" |
| Number of Fans Supported | 10 |
| Features |
|
| Fan Size Supported | 4.72" |
| Number of Fans Installed | 3 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
NZXT H7 Flow RGB Mid-Tower ATX Airflow Case with RGB Fans CMH72FBR1
$183.49
