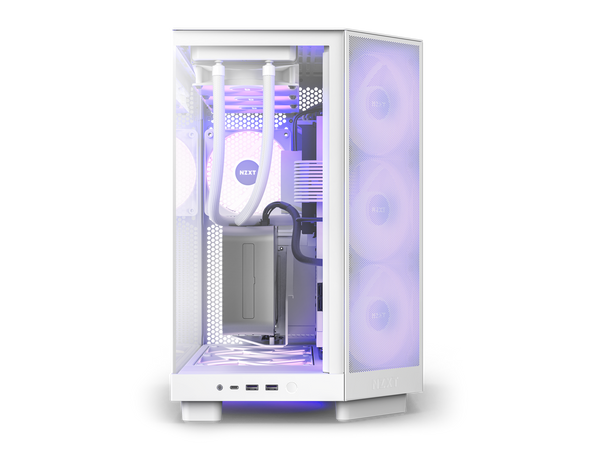

NZXT H6 Flow RGB Compact Dual-Chamber Mid-Tower Airflow Case with RGB Fans CCH61FWR1
(No reviews yet)
Write a Review
- SKU:
- 20539188
- MPN:
- cc-h61fw-r1
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/19/2025 04:41:14 AM PST
- Stock Update:
- 12/19/2025 04:41:14 AM PST
Description
This item is brand-new, factory sealed.
Experience peak performance and vibrant RGB within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow's panoramic glass showcases the interior while freeing up space for improved airflow.Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
Includes three pre-installed 120mm RGB fans (Case Version) positioned at an ideal angle for optimal out-of-the-box cooling and vibrant RGB lighting.
The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
An intuitive cable management system simplifies the build process by using wide channels and straps.
Tool-free access to the top and side panels makes upgrading quick and convenient.
Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance.
Inside the Box
H6 Flow RGB:1
F120 RGB Core (Case Version):3
Installation Accessories:1
User Guide:1 Key Specs
Motherboard Support:ATX, Micro-ATX, Mini-ITX
Enclosure Type:Mid-Tower
Case Material:SGCC Steel, Ultra-Clear Tempered Glass Compatibility and Clearance
CPU Cooler Height:163 mm / 6.42 in
GPU Length:365 mm / 14.37 in
PSU Length:200 mm / 7.87 in
Cable Management:91 mm / 3.58 in
Top Radiator:30 mm / 1.18 in Front I/O Ports
USB 3.2 Gen 1 Type-A:2
USB 3.2 Gen 2x2 Type-C (20 Gbps):1
Headset Audio Jack:1 Expansion Slots
Standard:7
Vertical:0 Drive Bays
2.5":2
3.5":1 Fan Support
Front-Right:3 x 120 mm (3 x F120 RGB Core case version included)
Top:3 x 120 mm / 2 x 140 mm
Bottom:2 x 140 mm
Rear:1 x 120 mm
Filters:High-Performance Mesh Radiator Support
Top:Up to 360 mm
Rear:Up to 120 mm Fan Specs
Model:F120 RGB Core Fan (Case Version)
Speed:1300 +/- 130 RPM
Airflow:55.17 CFM
Static:1.27 mm H2O
Noise:26.1 dBA
Fan Connector:3-pinItem Dimension (L"xW"xH")
20 x 15 x 21
Weight
46.00 lbs
Warranty Information
2 Years
Specs
| Physical Characteristics | |
| Product Material |
|
| Form Factor | Mid-tower |
| Weight (Approximate) | 20.72 lb |
| Cooler Type | Fan Cooler |
| Product Color | White |
| Height | 17.1" |
| Color Family | White |
| Maximum GPU Length | 14.37" |
| Maximum PSU Length | 7.87" |
| Width | 11.3" |
| Depth | 16.3" |
| Maximum CPU Cooler Height | 6.42" |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Interfaces/Ports | |
| Total Number of Audio Out Ports | 1 |
| USB Port Details |
|
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Front USB | Yes |
| Total Number of USB Ports | 3 |
| Total Number of Audio In Ports | 1 |
| Bays | |
| Number of Internal 2.5" Bays | 2 |
| Number of Internal 3.5" Bays | 1 |
| General Information | |
| Brand Name | NZXT |
| Manufacturer Website Address | http://www.nzxt.com |
| Marketing Information | Experience peak performance and vibrant RGB within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow's panoramic glass showcases the interior while freeing up space for improved airflow. Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components. Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic. Includes three pre-installed 120mm RGB fans positioned at an ideal angle for optimal out-of-the-box cooling and vibrant RGB lighting. The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust. An intuitive cable management system simplifies the build process by using wide channels and straps. Tool-free access to the top and side panels makes upgrading quick and convenient. Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance. |
| Product Type | Computer Case |
| Product Name | H6 Flow RGB Compact Dual-Chamber Mid-Tower Airflow Case with RGB Fans |
| Manufacturer | NZXT Corporation |
| Manufacturer Part Number | CCH61FWR1 |
| Product Line | H6 Flow |
| Technical Information | |
| Motherboard Supported |
|
| Installed Fan Size | 4.72" |
| Number of Fans Supported | 8 |
| Features |
|
| Number of Fans Installed | 3 |
