Description
This item is brand-new, factory sealed.

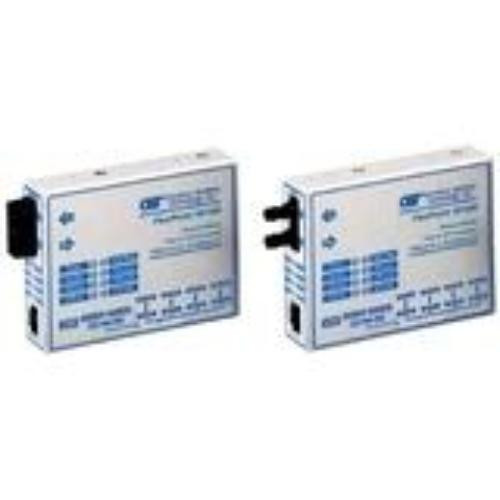

The FlexPoint 10/100 is a modular 10BASE-T or 100BASE-TX RJ-45 to 100BASE-FX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension.
The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance supported by the attached device. An override switch provides manual control over the 10/100 operation of the RJ-45 port and the Half/Full-Duplex operation of both the fiber and RJ-45 ports.
- The FlexPoint 10/100 is a 10BASE-T or 100BASE-TX to100BASE-FX fiber media converter
- The RJ-45 port supports auto or manual negotiation
- Extends network distances up to 120km
- Supports 100BASE-FX fixed-fiber (SC, ST or LC) and 100BASE-FX SFP transceivers
- Labeled status LEDs and switches for quick and easy installation
- Auto MDI/MDI-X crossover
- Available in AC and DC models
- Wall-mount or rack-mount on a 5-Module shelf or in a 14-Module power-redundant FlexPoint
- Powered Chassis
- Completely software independent with no installation of drivers required
- Standard (0 to +50C), wide (-40 to +60C) and extended (-40C to +75C) temperature ranges
- Peace-of-mind reliability backed by a lifetime warranty and free 24/7 technical support
Package Contents:
- FlexPoint 10/100
- US Power Supply - 110-120VAC / 60Hz
- User Manual
Features
Package Contents:
Yes
United States
- FlexPoint 10/100 ST Single-Mode 30km US AC Powered US Power Supply - 120Volt / 60Hz
- User Manual
Certifications & Standards:
- EIA/TIA 568A/B
- UL
- CE
- FCC Class A
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX and 100BASE-FX
Additional Information:
Input Voltage:
- 5-32VDC via 2.5mm barrel (0.5A @ 9VDC)
- 5VDC via Molex connector (0.8A @ 5VDC)
- 100-120VAC/60Hz (0.06A @ 120VAC)
Environmentally Friendly:
Yes
Country of Origin:
United States
Specs
| Power Description | |
| Input Voltage | 120 V AC |
| Physical Characteristics | |
| Form Factor |
|
| Weight (Approximate) | 6 oz |
| Height | 1" |
| Width | 3" |
| Depth | 4" |
| Warranty | |
| Limited Warranty | Lifetime |
| Interfaces/Ports | |
| ST Port Type | Duplex |
| Network (RJ-45) | Yes |
| Total Number of Ports | 2 |
| Number of Network (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| General Information | |
| Brand Name | Omnitron Systems |
| Package Type | Retail |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Marketing Information | The FlexPoint 10/100 is a modular 10BASE-T or 100BASE-TX copper to 100BASE-FX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension. The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance supported by the attached device. An override switch provides manual control over the 10/100 operation of the RJ-45 port and the Half/Full-Duplex operation of both the fiber and RJ-45 ports. When configured for auto-negotiation, the RJ-45 port automatically detects and sets MDI/MDI-X crossover. When configured for manual operation, the FlexPoint 10/100 features a manual switch to provide the MDI/MDI-X crossover. The fiber port supports fixed-fiber connectors (SC, ST or LC) and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. The FlexPoint 10/100 supports multimode, single-mode, single-mode single-fiber, in standard and CWDM wavelengths. Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration to legacy devices or specific network requirements. The LEDs report the availability of power, port activity and link status, speed and duplex modes. |
| Product Type | Transceiver/Media Converter |
| Product Name | FlexPoint 10/100 ST Single-Mode 30km US AC Powered |
| Manufacturer | Omnitron Systems |
| Manufacturer Part Number | 4343-1 |
| Product Model | 4343-x |
| Product Series | 10/100 |
| Product Line | FlexPoint |
| Media & Performance | |
| Maximum Distance Supported | 30 km |
| Media Type Supported |
|
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Network & Communication | |
| Ethernet Technology |
|
| Network Technology |
|
