Panduit

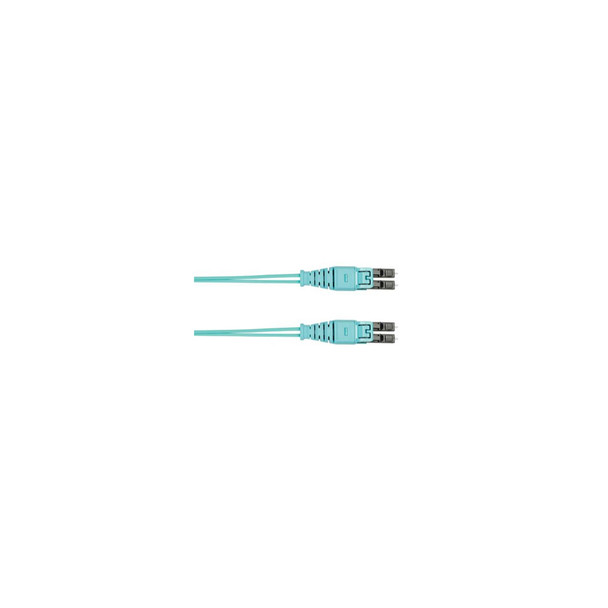

Panduit Opti-Core Push-Pull LC Duplex Fiber Optic Patch Cords (fz2erq1q1nnm003)
(No reviews yet)
Write a Review
- SKU:
- 18243931
- MPN:
- fz2erq1q1nnm003
- Availability:
- Out of stock
- Stock Update:
- 10/28/2022 08:06:47 AM PST
- Stock Update:
- 10/28/2022 08:06:47 AM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.
Panduit UTP28X100BU- Patch Cords Are Tested To Support Network Transmission Speeds Up To 10 Gb/S For Link Lengths Up To 300 Meters With An 850Nm Source Per Ieee 802.3Ae 10 Gbe Standard
- Pass All Tia/Eia-568-B.3 Performance Requirements
- Insertion Loss Per Connection: 0.10Db Typical; 0.30Db Maximum
- Include Color-Specific Keys With Positive And Negative Keying Features To Visually And Mechanically Distinguish Connections To Prevent Unauthorized Mating With Unlike Keyed Or Non-Keyed Adapters
- Brand Name: Panduit
- Cable Length: 9.84 feet feet
- Ean: 0074983120048
- Global Trade Identification Number: 00074983120048
- Model Number: FZ2ERQ1Q1NNM003
- Number of Items: 1
- Part Number: FZ2ERQ1Q1NNM003
- Specification Met: Ieee , Eia , Tia
- UNSPSC Code: 26121600
- UPC: 074983120048
- Package Dimensions: ?9.5 x 5 x 1.5 inches; 1.28 Ounces
- Item Weight: ?1.28 ounces
- Manufacturer: ?Panduit Corp.
2 fiber OM4 patch cord, LC push pull to LC push pull, 16mm jacket, riser (OFNR) rated, Ultra IL, 3m.. Patch Cords Are Tested To Support Network Transmission Speeds Up To 10 Gb/S For Link Lengths Up To 300 Meters With An 850Nm Source Per Ieee 802.3Ae 10 Gbe Standard
Features
Environmentally Friendly:
Yes
Restriction of Hazardous Substances (RoHS)
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Physical Characteristics | |
| Product Color | Aqua |
| Color Family | Green |
| General Information | |
| Brand Name | Panduit |
| Manufacturer Website Address | http://www.panduit.com |
| Marketing Information | Push-Pull LC Duplex Fiber Optic Patch Cords containing the custom push-pull strain relief boot and duplex clip, allow users easy accessibility when deploying very high density LC patch fields in data center applications. Available in riser (OFNR), and low smoke zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances and OM4, OM3 or OS1/OS2 fiber types to meet the demands of today's highest speed applications |
| Product Type | Network Cable |
| Product Name | Opti-Core Push-Pull LC Duplex Fiber Optic Patch Cords |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | FZ2ERQ1Q1NNM003 |
| Product Line | Opti-Core |
| Packaged Quantity | 1 |
| Technical Information | |
| Connector on Second End Details | 2 x LC Network - Male |
| Cable Type | Fiber Optic |
| Connector on First End Details | 2 x LC Network - Male |
| Connector Type on First End | LC Network - Male |
| Connector Type on Second End | LC Network - Male |
| Cable Length | 9.84 ft |
| Cable Characteristic | Patch Cable |
| Device Supported | Network Device |
| Fiber Optic Mode | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
