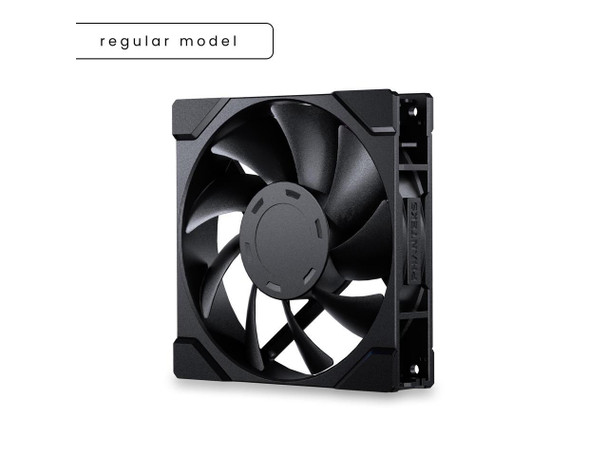

Phanteks PHF120M25 M25-120 Gen2 120mm PWM Fan Black PHF120M25_G2_BBK01

This item is brand-new, factory sealed.

M25G2-120
High Value Daisy-Chained Fan
The Phanteks M25 Gen2 comes packed with features previously only seen in the highest-end fans. Its daisy-chain unified fan frame easily interlocks with the next fan to link multiple fans together into one.
With its blades designed specifically for high airflow performance on radiators and heat sinks, the M25 Gen2 excels where it matters. Delivering low temperatures with a clean look to elevate your system.
Single Cable Solution
Daisy-Chain cables can be routed neatly on the rear side of the fans.
Designed for high cooling performance on radiators and heat sinks.
Daisy-Chain Unified Fan Design
Easily connect multiple fans with a streamlined setup, minimizing clutter.
Connect fans easily by sliding and locking with a screw.
Sleek aesthetic, included screw covers provide a polished and professional look.General
Model No.
PH-F120M25_G2_BBK01
Frame Size
120 x 120 x 25 mm 4.72 x 4.72 x 0.98 in
Blade Geometry
Nine blades design
Color
Black
Connector
4-Pin PWM
Cable Length
120 mm 4.72 in Daisy-chainTechnical Details
Bearing Type
Hydraulic bearing
Rated Voltage
12V
Noise Level
35.13 dBA
Max. Airflow
72.72 CFM
Max. Air Pressure
2.51 mm H2O
Speed
350-2000 +/- 10% RPM
MTFB
40.000 hours
Max Current
0.30A
Max Power
2.76W
Operating Voltage Range
DC 6 - 13.2V
LED Number
-
LED Rated Current
-Single Pack
Scope of Delivery
1x M25G2-120 fan
Accessories
1x PWM extension cable 500 mm
4x Screw cover corner
2x Screw cover bridge
Screws
5x Fan screwItem Dimension (L"xW"xH")
6 x 5 x 2

Weight
1 lb

Warranty Information
3 Years Limited
