Pioneer

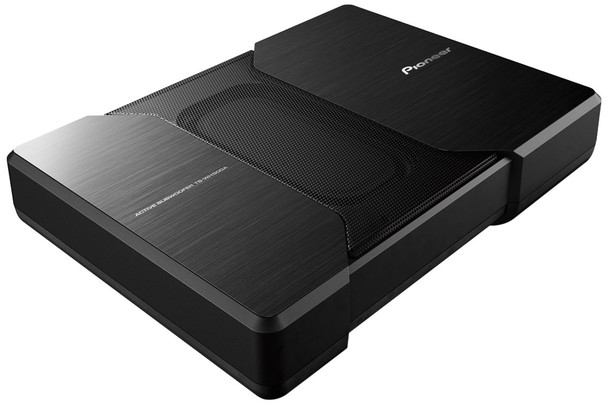

Pioneer Ts-wh500a Subwoofer System - 50 W Rms - Vehicle Mount - Black - 20 Hz - 200 Hz - No (tswh500a)
- SKU:
- 18259882
- MPN:
- tswh500a
- Availability:
- Usually ships the same or next business day. In stock at our NJ warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 05/10/2024 01:12:09 AM PST
- Stock Update:
- 05/10/2024 01:12:09 AM PST
Description
This item is brand-new, factory sealed.
150 Watts Max Power (50 Watts Nominal)Proprietary New Speaker Design Technology
Just 2-3/8-in height for easy installation
What is HVT?
HVT stands for Horizontal Vertical Transforming technology which transforms horizontal movement into vertical movement of a woofer diaphragm to produce true, powerful and wide-range bass.
The TS-WH500A amplified subwoofer system is a truly groundbreaking approach in loudspeaker design. HVT technology uses a unique linkage mechanism, which allows the magnet and voice coil of the dual motor structure to be positioned horizontally to the left and the right side of vertically moving dual speaker diaphragms. Combined, the two diaphragms have an effective surface area equal to a conventional 8-in subwoofer and fire in a bipolar arrangement, increasing output while also canceling destructive vibrations within the enclosure. The result of this innovative technology is a subwoofer system with significantly reduced physical depth, while maintaining greater excursion and linearity for superior bass reproduction, natural sound quality and higher output.
Easy Installation
The result of this innovative technology is a uniquely compact speaker with the most compact enclosure in the industry that combines woofer surface area equal to most other compact active subwoofer systems with greater maximum excursion for superior performance and sound quality. The HVT subwoofer will fit easily in a wide range of vehicle applications (compact and subcompact vehicles, hybrid vehicles, trucks and SUVs, etc.) without sacrificing performance or sound quality.
Clear Sound, Less Noise
Compared to a traditional subwoofer, the TS-WH500A produces less vibration and less noise. The subwoofer offers wider low range frequency reproduction for well-balanced bass from various musical instruments. The voice coil and diaphragm work in symmetry to cancel unnecessary vibrations and reduce noise which instead would travel through the vehicle's body.
What's in the Box
Amplified subwoofer
Wiring harness (Power with in-line fuse holder/ Ground/ Remote turn-on with in-line fuse holder/ RCA input)
RCA to speaker wire adapter
10 amp ATO fuse (installed in the power wire fuse holder)
0.5 amp glass fuse (installed in the remote turn-on wire fuse holder)
Wired remote control with attached 18' cable
1 Cable bracket
2 Mounting brackets
Two 5/8-in Self-tapping screws
Two M5x7mm Machine screws
Two M3x8mm Machine screws
1-in x 1-1/2-in Adhesive backed hook and loop fastener
* System Type: Powered
* Sensitivity (1W/1m) : 98dB
* Frequency Range: 20 Hz to 200 Hz
* Warranty: 1 Year
* Continuous Power handling (RMS) - Watts: 50 Watts
* Maximum Peak Power Handling - Watts: 150 Watts
* Speaker Grill: Fully Covered Steel Mesh Grille
* Built In Amp: Yes
* Amp Max Power Output: 150 Watts
* Amp DIN: 70 Watts
* Input Level (@ Gain Max) RCA: 100mV+100mV/20 kOhm
* Input Level (@ Gain Max) Speaker Line: 2V+2V/5 kOhm
* Power Source: DC 14.4 V
* Amp Max Current Consumption: 7 A
* Amp Grounding: Negative
Build
* Shape: Special
* Size: 7-1/8-in x 3-7/8-in
* Cone Material: IMPP - Composite
* Cone Special Feature: Both sides
* Surround Material: Rubber
* Surround Type: Rolled
* Basket Material: Stamped Metal
* Magnet Material: Ferrite
* Magnet Weight: 10.7 oz x2
* Voice Coil Type: Single Voice x2
* Voice Coil Bobbin: Glass imide
* Voice Coil wire: Copper
* Damper: Poly cotton
Features
Compatibility:
Automobile
Automobile
Specs
Physical Characteristics | |
Weight (Approximate) | 10 lb |
Product Color | Black |
Mount Type | Vehicle Mount |
Height | 2.4" |
Width | 13.4" |
Surround Material | Rubber |
Depth | 9.9" |
Warranty | |
Limited Warranty | 1 Year |
Interfaces/Ports | |
FireWire/i.LINK | No |
Apple Dock/Lightning Connector | No |
Battery Information | |
Battery Rechargeable | No |
General Information | |
Brand Name | Pioneer |
Manufacturer Website Address | http://www.onkyo.com |
Marketing Information | What is HVT? HVT stands for Horizontal Vertical Transforming technology which transforms horizontal movement into vertical movement of a woofer diaphragm to produce true, powerful and wide-range bass. The TS-WH500A amplified subwoofer system is a truly groundbreaking approach in loudspeaker design. HVT technology uses a unique linkage mechanism, which allows the magnet and voice coil of the dual motor structure to be positioned horizontally to the left and the right side of vertically moving dual speaker diaphragms. Combined, the two diaphragms have an effective surface area equal to a conventional 8" subwoofer and fire in a bipolar arrangement, increasing output while also canceling destructive vibrations within the enclosure. The result of this innovative technology is a subwoofer system with significantly reduced physical depth, while maintaining greater excursion and linearity for superior bass reproduction, natural sound quality and higher output. |
Product Type | Subwoofer System |
Product Name | 8 ¼" HVT Sealed Active Subwoofer |
Manufacturer | Onkyo & Pioneer Corporation |
Manufacturer Part Number | TS-WH500A |
Product Model | TS-WH500A |
Packaged Quantity | 1 |
Network & Communication | |
Wireless LAN | No |
Bluetooth | No |
Technical Information | |
Minimum Frequency Response | 20 Hz |
Maximum Frequency Response | 200 Hz |
Woofer Driver Material | Polypropylene |
Woofer Driver Size | 8" |
Maximum Subwoofer Impedance | 4 Ohm |
Audio | |
PMPO Output Power | 150 W |
Subwoofer Type | Active |
RMS Output Power | 50 W |
