Platinum Tools ezEX 38 - ezEX-RJ45 Cat5e Connector (0184-0931)
(No reviews yet)
Write a Review
- SKU:
- 20018049
- MPN:
- 0184-0931
- Availability:
- Usually ships the same or next business day. In stock at our MN warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 05/14/2026 03:22:51 AM PST
- Stock Update:
- 05/14/2026 03:22:51 AM PST
Description
This item is brand-new, factory sealed.

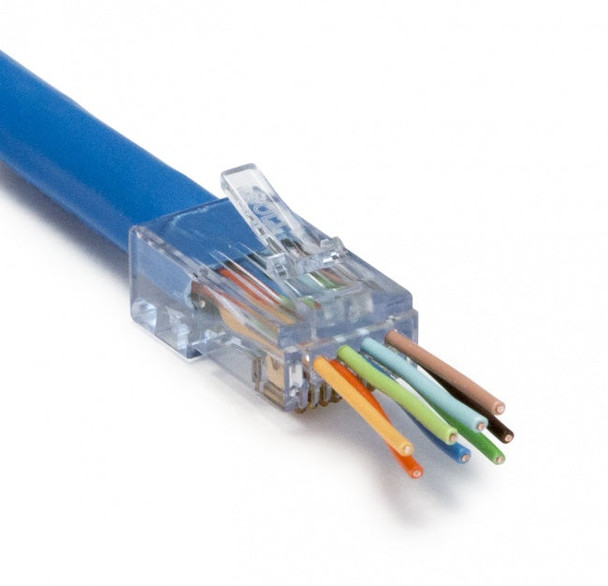

The patented ezEX38 connectors feature a unique integrated Hi-Lo stagger load bar and allows big' conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. These connectors are used with Cat5e (Sm. Cat6) cabling and is recommended for PoE/PoE+ and Data applications. These connectors are also available in shielded (STP) internal ground style. The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C).
- Hi-Lo stagger to isolate each conductor
- Simple one piece/pass through design, no bars or liners
- Insulation Diameter (Conductor) Size range: .033" - .038" (0.84 -0.97mm)
- Max Outer Diameter: .290" (7.36mm)
- 50 micron gold plated contacts
- 5e/6/6A compliant
- Solid or Stranded 24-22 AWG
- TIA, TAA, RoHS, UL & FCC compliant
- Typically used with Cat5e (Sm. 6)
- Shielded (STP) Internal Ground available
- Made in the USA
- US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
Features
TAA Compliant:
Yes
Yes
Platinum Tools:
Restriction of Hazardous Substances (RoHS)
United States
Yes
Environmentally Friendly:
Yes
Compatibility:
Platinum Tools:
- Crimp Frame + EXO-EX Die: P/N 100061C
- EXO Crimp Frame (Frame only w/o crimp die): P/N 100060C
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
United States
Specs
| General Information | |
| Brand Name | Platinum Tools |
| Manufacturer Website Address | http://www.platinumtools.com |
| Marketing Information | The patented ezEX38 connectors feature a unique integrated Hi-Lo stagger load bar and allows big' conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. These connectors are used with Cat5e (Sm. Cat6) cabling and is recommended for PoE/PoE+ and Data applications. These connectors are also available in shielded (STP) internal ground style. The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C). Hi-Lo stagger to isolate each conductor Simple one piece/pass through design, no bars or liners Insulation Diameter (Conductor) Size range: .033" - .038" (0.84 -0.97mm) Max Outer Diameter: .290" (7.36mm) 50 micron gold plated contacts 5e/6/6A compliant Solid or Stranded 24-22 AWG TIA, TAA, RoHS, UL & FCC compliant Typically used with Cat5e (Sm. 6) Shielded (STP) Internal Ground available Made in the USA US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents. |
| Packing | Jar |
| Product Type | Network Connector |
| Product Name | ezEX 38 - ezEX-RJ45 Cat5e Connector |
| Manufacturer | NSI Industries |
| Manufacturer Part Number | 202038J |
| Product Line | ezEX |
| Packaged Quantity | 100 |
| Technical Information | |
| Contact Plating | Gold |
| Connector Type | RJ-45 Network - Male |
| Connector Details | 1 x RJ-45 Male Network |
| Features |
|
| Shielding | No |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Platinum Tools ezEX 38 - ezEX-RJ45 Cat5e Connector (0184-0931)
$87.98
