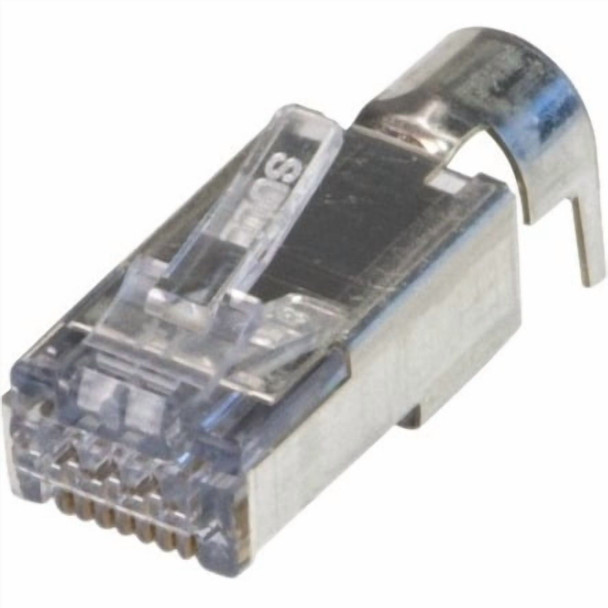

Platinum Tools Llc 105029 Ezex48 Shielded Rj45 External Ground Connectors 100/bag.

This item is brand-new, factory sealed.

Platinum Tools ezEX48 shielded RJ45 connectors with external ground feature a Hi-Lo stagger to isolate each connector. A simple to use one-piece design. For use with Cat6a cable. These connectors allow the conductors to pass through the front of the connector and must be used in conjunction with crimp tool 100061C. This product comes in a 100 piece bag. This product is RoHS2 and UL compliant Details Hi-Lo stagger to isolate each conductor Simple one piece/pass through design, no bars or liners Shielded 6/6A compliant Insulation Diameter (Conductor) - Size range: 0.043? 0.048? (1.09 1.22mm) Max Outer Diameter: 0.305? (7.75mm) Solid or Stranded 23-22 AWG 50 micron gold plated contacts TAA, TIA, RoHS, UL & FCC compliant Made in the USA
100 PIECES CRIMP PLUGS: RJ45 External Ground Connector Crimp plugs come in a 100-piece bag to connect with your Cat6 or Cat6a cables. An economic pack for your office or home Ethernet cables. PROFESSIONAL DESIGN: The ezEX48 Cat6a Shielded Crimp Plug has 50-micron gold-plated contacts that are easy to use and a one-piece pass-through design with no bars or liners. It is designed to work with both solid and stranded wire of 23 and 22 AWG. It can operate at temperatures ranging from -40C to 85C. Cat6a shielded crimp plugs have a 0.305 (7.75mm) maximum outer diameter. WIDE USAGE: RJ45 external ground connectors allow the conductors to pass through the front of the connector and must be used in conjunction with a crimp tool. It features hi-lo stagger to isolate each connector. The purpose of ezEX48 Cat6a shielded crimp plugs is to reduce the distance between wire twists and contacts in order to improve the integrity and clarity of the signal. Using it, sequence verification can be performed more easily, resulting in a reduction in waste.
