Powerdsine

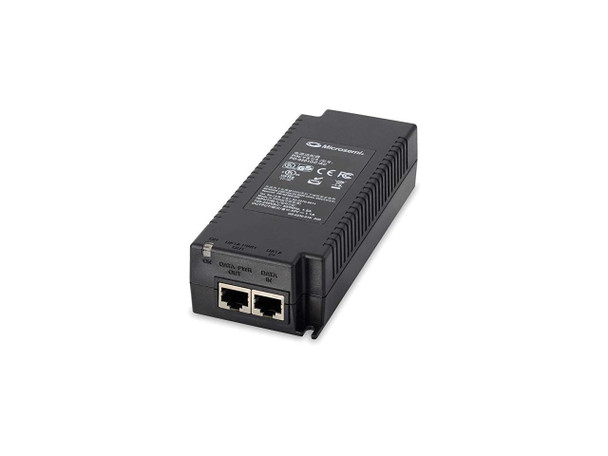

Microsemi 1 port, 60W, IEEE 802.3bt-compliant indoor PoE midspan (pd-9501gc-ac-us)
- SKU:
- 18020342
- MPN:
- pd-9501gc-ac-us
- Availability:
- Out of stock
- Stock Update:
- 04/12/2023 04:36:46 AM PST
- Stock Update:
- 04/12/2023 04:36:46 AM PST
Description
This item is brand-new, factory sealed.
Microchip Technology - PD-9501GC/AC-US - Microsemi 1 port, 60W, IEEE 802.3bt-compliant indoor PoE midspan - The single port PoE midspan provides up to 60 Watts of power over Ethernet and offers a IEEE- The single port PoE midspan provides up to 60 Watts of power over Ethernet and offers a IEEE 802
- Package Dimensions: 8 x 5 x 3 inches
- Manufacturer: Microchip Technology
The single port PoE midspan provides up to 60 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9501GC is designed specifically to power IEEE 802.11n and IEEE 802.3bt access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals. Package Contents: 1-Port, IEEE 802.3bt 60W PoE Midspan Power Cord Product Type: PoE Injector Product Type: PoE Injector Input Voltage: 230 V AC Input Voltage: 120 V AC Manufacturer Part Number: PD-9501GC/AC-US Limited Warranty: 1 Year Weight (Approximate): 11.29 oz Network Technology: 10/100/1000Base-T Certifications & Standards: CE IEEE 802.3bt (PoE) Length: 5.9 Manufacturer: Microchip Technology Inc. Product Model: PD-9501GC Product Name: 1-Port, IEEE 802.3bt 60W PoE Midspan Brand Name: Microsemi Output Ports: 1 Product Series: PD-9500GC Brand Name: Microsemi Input Ports: 1 10/100/1000Base-T Output Ports: 1 10/100/1000Base-T Height: 1.5 Width: 2.4 Environmentally Friendly: Yes Environmental Certification: REACH Environmental Certification: WEEE Environmental Certification: RoHS Maximum Output Power: 60 W Maximum Output Voltage: 55 V DC
Features
- 1-Port, IEEE 802.3bt 60W PoE Midspan
- Power Cord
Certifications & Standards:
- CE
- IEEE 802.3bt (PoE)
Environmental Certification:
RoHS
WEEE
REACH
Additional Information:
Power over Ethernet Output:
- Pin Assignment and Polarity:
- Data Pairs 1/2 (-) and 3/6 (+)
- Spare Pairs 7/8 (-) and 4/5 (+)
- User Port Power: 60W over 4-pairs (Guaranteed)
- Connectors: Shielded RJ-45, EIA 568A and 568B
Reliability: MTBF: 240,000 hrs. @ 25ºC
Thermal Rating: 34.2 BTU/Hr (@100Vac)
Environmental Conditions:
- Operating Ambient Temperature: 32ºF to 104ºF (0ºC to 40ºC)
- Operating Humidity: Maximum 95%, Non-condensing
- Storage Temperature: -4ºF to 158ºF (-20ºC to 70ºC)
- Storage Humidity: Maximum 95%, Non-condensing
Environmentally Friendly:
Yes
Country of Origin:
China
Specs
| Power Description | |
| Maximum Frequency | 60 Hz |
| Minimum Frequency | 50 Hz |
| Maximum Output Voltage | 55 V DC |
| Maximum Output Power | 60 W |
| Input Voltage |
|
| Maximum Input Current | 1.50 A |
| Physical Characteristics | |
| Weight (Approximate) | 11.29 oz |
| Length | 5.9" |
| Height | 1.5" |
| Width | 2.4" |
| Warranty | |
| Limited Warranty | 1 Year |
| Interfaces/Ports | |
| Output Ports | 1 x 10/100/1000Base-T |
| Input Ports | 1 x 10/100/1000Base-T |
| General Information | |
| Brand Name | Microchip |
| Manufacturer Website Address | http://www.microchip.com |
| Marketing Information | The single port PoE midspan provides up to 60 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9501GC is designed specifically to power IEEE 802.11n and IEEE 802.3bt access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals. |
| Product Type | PoE Injector |
| Product Name | 1-Port, IEEE 802.3bt 60W PoE Midspan |
| Manufacturer | Microchip Technology Inc. |
| Manufacturer Part Number | PD-9501GC/AC-US |
| Product Model | PD-9501GC |
| Product Series | PD-9500GC |
