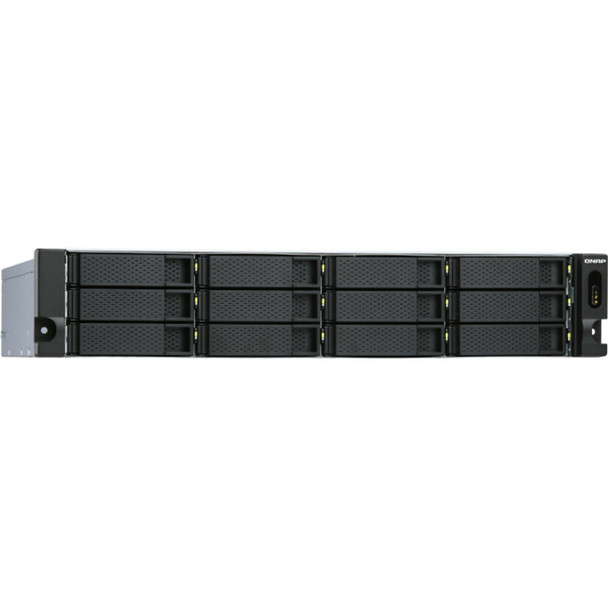

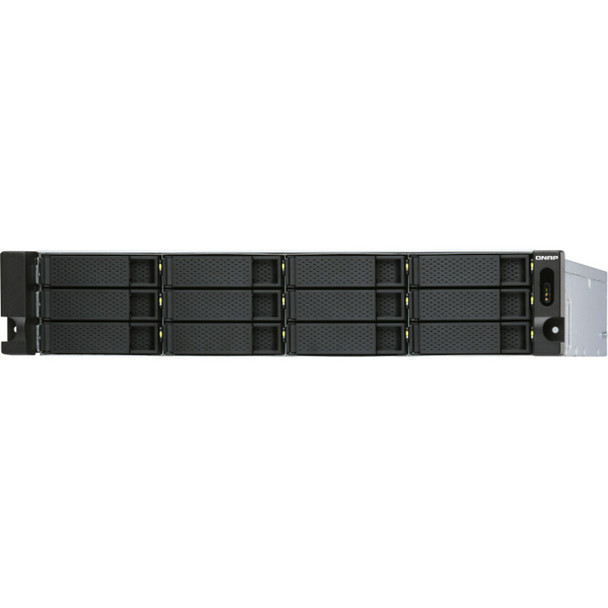

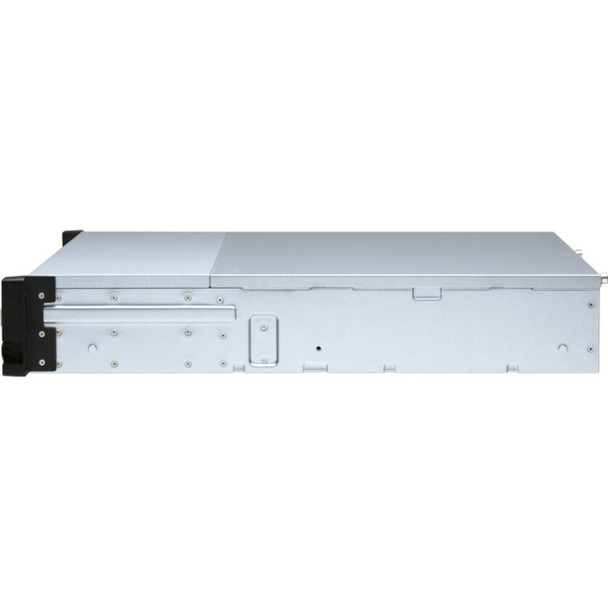

QNAP TL-R1200S-RP Drive Enclosure SATA/600 - Mini-SAS Host Interface - 2U Rack-mountable (242409)

This item is brand-new, factory sealed.

TL-R1200S-RP Rackmount JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows and Ubuntu computers and servers. The TL-R1200S-RP features twelve 3.5-inch SATA 6Gb/s drive bays, TL-R1200S-RP comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.


High-capacity TL SATA JBOD not only can expand NAS storage, but also Windows and Ubuntu computers and servers.

SFF-8088 (or SFF-8644) connection cable supports four SATA 6Gb/s channels per cable (24Gb/s in total) and provides faster data transfer speeds than eSATA and USB.

The 250W redundant power supply can ensure maximum system uptime.


High-performance of TL SATA JBOD

The TL SATA JBOD supports multi-lane SATA 6Gb/s transfer, and each SATA lane directly connects to a single SATA drive to help improve performance. With the 1-1 high-speed channel, the TL SATA JBOD delivers excellent transfer performance.

Note: The SFF ports and drive slots order: SFF port 1 to HDD slot 1-4, SFF port 2 to HDD slot 5-8, SFF port 3 to HDD slot 9-12, SFF port 4 to SDD slot 1-4 (TL-D1600S)


Flexible Storage Configuration and Management

The TL-R1200S-RP provides software-controlled storage configuration for greater management flexibility. You can configure RAID and monitor JBOD enclosure and disk health with Storage & Snapshots when connected to a QTS or QuTS hero NAS, or with the QNAP JBOD Manager utility when connected to a computer.


Use the Storage & Snapshots Manager in QTS or QuTS hero to configure the TL-R1200S-RP as a storage enclosure for your QNAP NAS. The NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. With TL-R1200S-RP, you can easily expand storage capacity. Drive Bay
12 x 3.5-inch SATA 6Gb/s, 3Gb/s Drive Compatibility
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives Audio Alert On/Off Switch
Yes Form Factor
2U Rackmount Host Interface
3 x SFF-8088 LED Indicators
HDD 1-12, Status, Link, Fan error Buttons
Power switch Max. number of HDDs/SSDs supported
12 Hard Drive Type
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives Operating temperature
0 - 40 ^oC (32^oF - 104^oF) Storage Temperature
-20 - 70^oC (-4^oF - 158^oF) Relative Humidity
5-95% RH non-condensing, wet bulb: 27^oC (80.6^oF) Power Supply Unit
250W(x2) PSU, 100 - 240V Power Consumption: Operating Mode, Typical
73.7 W
Tested fully polulated with Seagate ST6000NM0024 hard drives. Fan Mode Switch
Yes (Auto, high, medium, low) Fan
2 x 70mm, 12VDC Sound Level
33.7 db(A) System Warning
Buzzer Kensington Security Slot
YesItem Dimension (L inchxW inchxH inch)
29 x 22 x 11

Weight
51.00 lb

Warranty Information
3 years

Package Contents:

• TL-R1200S-RP Drive Enclosure with Redundant Power Supply
• 2 x Power Cords
• 3 x Mini SAS Cables (SFF-8644 to SFF-8088)
• 36 x Flat Head Screws (for 2.5" HDD)
• 48 x Flat Head Screws (for 3.5" HDD)
• QXP SATA Expansion Card
• Quick Installation Guide (QIG)
