QNAP TS-432PXU-2G SAN/NAS Storage System - Annapurna Labs Alpine AL-324 Quad-core (4 Core) 1.70 GHz - 4 x HDD (TS432PXU2GUS)

(No reviews yet) Write a Review
SKU:
18062417
MPN:
247584
Availability:
Usually ships the same or next business day. In stock at our CA warehouse.
Shipping:
Calculated at Checkout
Stock Update:
12/18/2025 06:29:33 PM PST
  • Main

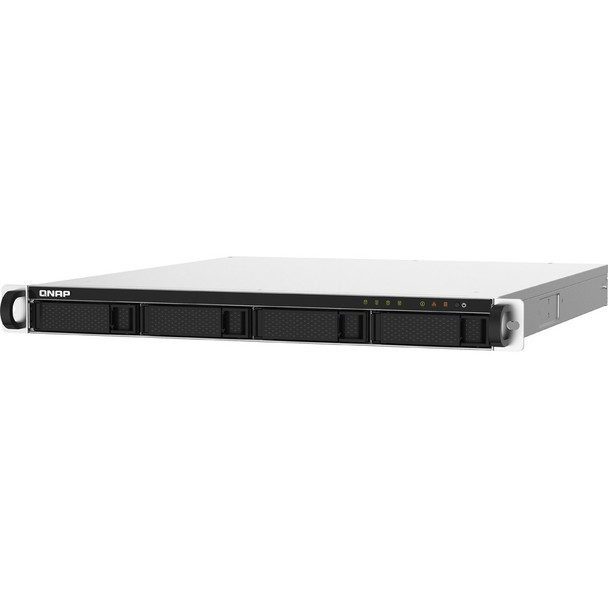

  • Top
  • Right
  • Rear
  • Left
  • Front
$743.68
Buy more, get it as low as $
Stock Update:
12/18/2025 06:29:33 PM PST

Description

This item is brand-new, factory sealed.

Specifications

  • Mfr Part Number: TS-432PXU-2G-US
  • Hardware:
    • CPU: AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57 quad-core 1.7GHz processor
    • CPU Architecture: 64-bit ARM
    • Floating Point Unit: Yes
    • Encryption Engine: Yes
    • System Memory: 2 GB UDIMM DDR4 (1 x 2 GB)
    • Maximum Memory: 16 GB (1 x 16 GB)
    • Memory Slot: 1 x Long-DIMM DDR4
    • Flash Memory: 512 MB (Dual boot OS protection)
    • Drive Bay: 4 x 3.5" SATA 6Gb/s, 3Gb/s
    • Drive Compatibility:
      - 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
    • Hot-swappable: Yes
    • M.2 SSD Slot: Optional via a PCIe adapter
    • SSD Cache Acceleration Support: Yes
    • LAN Port:
      -       2 x 2.5 Gigabit Ethernet Port (2.5G/1G/100M) (also support 10M)
      - 10 Gigabit Ethernet Port: 2 x 10GbE SFP+
    • Wake on LAN (WOL): Yes
    • Jumbo Frame: Yes
    • PCIe Slot: 1-Slot 1: PCIe Gen 2 x2
    • USB: 4 x USB 3.2 Gen 1 port
    • LED Indicators: HDD 1-4, Status, LAN, Storage expansion
    • Buttons: Power, Reset
    • Operating temperature: 0 - 40 C (32F - 104F)
    • Storage Temperature: -20 - 70C (-4F - 158F)
    • Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
    • Sound Level: 38 db(A)
    • System Warning: Buzzer
    • Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 700
  • Operating System: QTS 4.4.3 (embedded Linux)
  • Supported File Systems:
    • Internal hard drive (EXT4)
    • External hard drive (EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT)
  • Network & Virtual Switch:
    • TCP/IP: Dual stack (IPv4 and IPv6)
    • Jumbo frame
    • Port trunking (Link aggregation)
      - failover
      - Load balancing
    • DHCP server and client
    • RADVD
    • USB & PCIe Wi-Fi adapter
    • Virtual switch
      - Network Address Translation (NAT)
      - Spanning Tree Protocol (STP)
      - Software-Defined Switch mode
    • Static Route
    • NCSI (Network Connectivity Status Indicator)
    • DDNS settings (Customize & Multiple Service)
  • Security:
    • Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
    • Host access control for shared folders (CIFS/SMB)
    • AES 256-bit volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)
    • 256-bit external drive encryption (AES)
    • Importing of SSL certificates from Lets Encrypt
    • Instant alerts through email, SMS, push service, and audio
    • 2-step verification
  • Storage Management:
    • Supported RAID types: RAID 0, 1, 5, 6, 10, JBOD, Single
    • RAID Hot Spare and Global Hot Spare
    • RAID Rebuild Speed Customization
    • Online RAID capacity expansion
    • Online RAID level migration
    • SSD RAID Over-provisioning
    • SSD RAID Performance evaluation (with SSD Profiling Tool)
    • SSD TRIM for RAID 0,1,10
    • Bitmap support
    • Disk auto S.M.A.R.T. data migration
    • Disk bad block scan and S.M.A.R.T test.
    • Disk bad block recovery
    • Disk secure data erase
    • Ironwolf Health Management
    • Storage pools
    • Qtier Data Tiering Technology
      - Automatic or scheduled data tiering
      - IO-aware auto tiering
      - Shared folder tiering on demand
    • Flexible volumes and LUNs with thin provisioning and space reclaiming
      - If the NAS has less than 4GB RAM, then the maximum volume capacity is 144TB.
      - If the NAS has at least 4GB RAM, then the maximum volume capacity is 250TB.
    • Online volume expansion
    • Volume type conversion
    • Volume shrink
    • Storage space utilization
    • Snapshots - The maximum number of snapshots varies depending on installed memory.
      - Volume and LUN snapshots
      - Snapshot Dashboard
      - Snapshot Manager
      - Snapshot local restore and revert
      - Snapshot Clone
      - Snapshot Replica and Snapshot Vault
      - Snapshot remote restore and revert
      - Unified Snapshot Directory
      - Support for Windows Previous Versions (CIFS/SMB)
      - Snapshot Agent for Microsoft Windows and VMware vSphere
    • Storage expansion using QNAP expansion units
    • JBOD enclosure roaming
    • SSD read-only and read-write cache
    • SSD write-only cache
  • Form Factor: 1U Rackmount
  • Power Supply Unit: 250W PSU, 100 - 240V
  • Power Consumption-Operating Mode, Typical: 39.558 W
  • Fan: 2 x 40mm, 12VDC
  • Dimensions (HxWxD): 1.73 17.28 19.65 inch
  • Weight (Net): 14.4 lbs
  • All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers


Package Contents:
  • TS-432PXU-2G SAN/NAS Storage System
  • 1 x Ethernet Cable
  • 1 x Power Cord
  • 16 x Flat Head Screws (for 3.5" HDD)
  • 12 x Flat head Screws (for 2.5" HDD)
  • Quick Installation Guide (QIG)

Features

Package Contents:
  • TS-432PXU-2G SAN/NAS Storage System
  • 1 x Ethernet Cable
  • 1 x Power Cord
  • 16 x Flat Head Screws (for 3.5" HDD)
  • 12 x Flat head Screws (for 2.5" HDD)
  • Quick Installation Guide (QIG)



Country of Origin:
Taiwan



Specs

Controllers
RAID SupportedYes
Controller TypeSerial ATA/600
RAID Levels0, 1, 5, 6, 10, Hot Spare, JBOD
Management & Protocols
Protocols
  • TCP/IP
  • IPv4
  • IPv6
  • DHCP
  • NAT
  • STP
  • DDNS
  • HTTP
  • HTTPS
  • WEBDAV
  • SSL
  • SSH
  • Telnet
  • FTP
  • CIFS/SMB
  • AFP
  • iSCSI
  • SMTP
  • SNMP
  • NFS
  • SFTP
  • TFTP
  • SSL/TLS
  • FXP
  • MTP
  • RSync
  • RTSP
  • PPTP
  • L2TP
  • IPSec
  • UPnP
Power Description
Maximum Power Supply Wattage250 W
Physical Characteristics
Form FactorRack-mountable
Weight (Approximate)14.40 lb
Height1.7"
Width17.3"
Depth19.6"
Rack Height1U
Warranty
Limited Warranty2 Year
I/O Expansions
Total Number of Expansion Slots3
Number of Total Expansion Bays4
Number of 2.5"/3.5" Bays4
Expansion Slot Type
  • PCI Express 2.0 x2
  • SFP+
Memory
Standard Memory2 GB
Memory TechnologyDDR4 SDRAM
General Information
Brand NameQNAP
Manufacturer Website Addresshttp://www.qnap.com
Marketing InformationQuad-core 1.7GHz rackmount NAS with dual 10GbE SFP+ and dual 2.5GbE ports for SMB IT environments
With 10GbE SFP+ and 2.5GbE network ports, the TS-432PXU delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 ?2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity. The TS-432PXU supports file backup and synchronization, secure snapshot protection, and Google G Suite™ and Microsoft 365® enterprise account backup services, while providing instant recovery whenever needed. Coupled with the support for cloud gateways, building a hybrid cloud storage solution has never been easier.
Two 10GbE SFP+ and two 2.5GbE RJ45 network ports accelerate file sharing.
HBS (Hybrid Backup Sync) backs up and syncs data to other NAS, servers and cloud storage for comprehensive disaster recovery planning.
Boxafe provides an extra layer of protection by backing up emails, cloud drives, contacts, and calendars of Google™ G Suite and Microsoft 365®.
Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.
Expand the application potential of the TS-432PXU by installing a compatible PCIe card.
Increase the storage capacity of the TS-432PXU with QNAP TR RAID expansion enclosures or TL JBOD.
Higher performance x faster throughput
The TS-432PXU is powered by an Annapurna Labs Alpine AL-324 ARM® Cortex®-A57 quad-core 1.7 GHz processor with 2GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance. With two 10GbE SFP+ and two 2.5GbE network ports, the TS-432PXU provides incredible bandwidth to fulfil high-speed file access, backup/restoration and media transfer, while also allowing the flexible allocation of network resources for individual applications and services.
Upgrade your network to increase team efficiency
QNAP provides various high-speed network solutions at attainable price points. The QSW network switches provide managed and unmanaged 10GbE and 2.5GbE options for building high-speed networks. QNAP also offers 10GbE / 5GbE / 2.5GbE network expansion cards and a USB to 5GbE adapter for Windows® / Linux® devices, allowing all of your workstations to take advantage of high-speed networks.
Boost NAS performance with SSDs
As SSDs become more affordable, using SSDs on NAS can improve performance without requiring a heavy investment. The TS-432PXU supports SSD cache technology, Qtier™ auto-tiering storage, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.
Balance performance and capacity
Boost NAS performance by enabling SSD caching. Coupled with Qtier™ auto-tiering technology, you can find the perfect storage configuration between high-performance SSD and high-capacity HDD while balancing performance and cost.
Learn more?SSD caching, Qtier auto-tiering
Extend SSD lifespan
SSD Extra Over-provisioning allows for adding 1~60% reserved space to avoid performance degradation, helping to increase system stability and extend SSD lifespan.
Product TypeSAN/NAS Storage System
Product NameTS-432PXU-2G SAN/NAS Storage System
ManufacturerQNAP Systems
Manufacturer Part NumberTS-432PXU-2G-US
Product ModelTS-432PXU-2G
Product SeriesTS-x32PXU
Processor & Chipset
Processor CoreQuad-core (4 Core)
Processor ModelAL-324
Processor TypeAlpine
Processor Speed1.70 GHz
Storage
Number of Hard Drives Supported4
Flash Memory Capacity512 MB
Number of Hard Drives Installed0
Number of Solid State Drive Installed0
Number of Solid State Drive Supported4
Interfaces/Ports
Network (RJ-45)Yes
Total Number of USB Ports4
Number of USB 3.2 Gen 1 Ports4
Number of Network (RJ-45) Ports2
Network & Communication
Ethernet Technology10 Gigabit Ethernet
