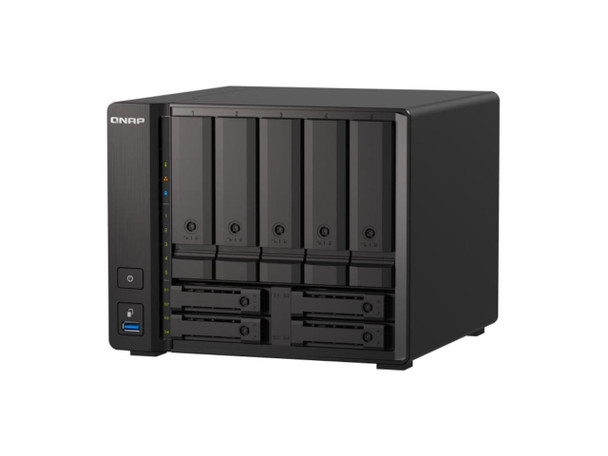

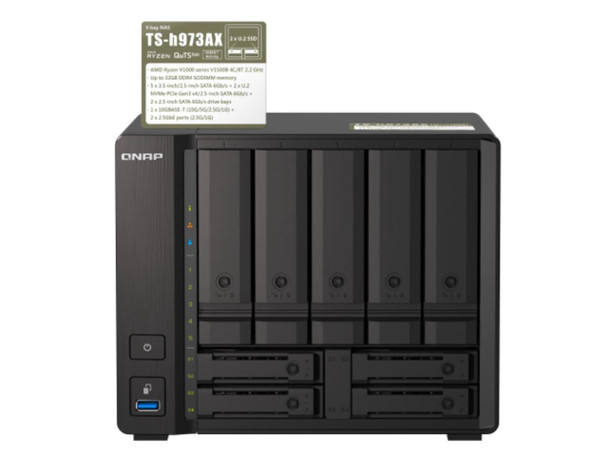

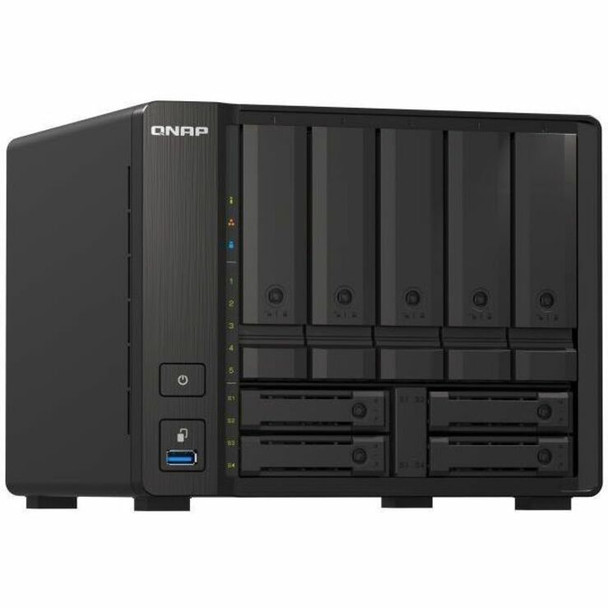

QNAP TS-H973AX-32G-US SAN/NAS Storage System

This item is brand-new, factory sealed.

Featuring an AMD Ryzen V1000 series V1500B quad-core processor and 10GbE/2.5GbE connectivity, the 9-bay TS-h973AX packs a high-capacity hybrid storage infrastructure into a compact physical footprint. With five 3.5-inch SATA 6Gbps drive bays, two 2.5-inch U.2 NVMe SSD slots (Slot 1 and 2 support both U.2 NVMe and SATA SSDs ), and two 2.5-inch SATA 6Gbps SSD slots, the TS-h973AX can benefit from SSD caching to boost IOPS-intensive applications. With the ZFS-based QuTS hero operating system, the TS-h973AX ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync to satisfy mission-critical file servers, virtualization servers, collaborative video editing, and efficient data backup and recovery with business-class performance, job reliability, and lower overall cost.
Install high-performance U.2 NVMe PCIe Gen 3 x4 SSDs or SATA 6Gb/s SSDs in the dedicated SSD slots for cache acceleration and improved random I/O.
One 10GBASE-T Multi-Gig and two 2.5GbE LAN ports accelerate virtualization, intensive file access, large backup/restoration tasks, and media transfer.
Experience a business-class backup center, supporting backup/restore of cloud data and VMs (including Google Workspace, Microsoft 365, VMware and Hyper-V).
Host multiple virtual machines and containers to run a wide range of applications on the TS-h973AX.
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
Flexibly scale your total storage capacity to match your business growth by connecting USB expansion enclosures (TR series JBOD).
CPU
AMD Ryzen Embedded V1500B quad-core eight threads 2.2 GHz processorCPU Architecture
64-bit x86Floating Point Unit
YesEncryption Engine
Yes (AES-NI)System Memory
32 GB SO-DIMM DDR4 (2 x 16 GB)Maximum Memory
64 GB (2 x 32 GB)Memory Slot
2 x SO-DIMM DDR4
Support ECC memoryFlash Memory
5GB (Dual boot OS protection)Drive Bay
5 x 3.5-inch + 4 x 2.5-inchDrive Compatibility
3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
2.5-inch bays:
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
2.5-inch U.2 NVMe PCIe Gen3 x4 solid state drives (2.5-inch Bay number 1 and number 2)Hot-swappable
YesSSD Cache Acceleration Support
Yes2.5 Gigabit Ethernet Port (2.5G/1G/100M)
25 Gigabit Ethernet Port (5G/2.5G/1G/100M)
Optional via the QNA-UC5G1T USB to 5GbE network adapter10 Gigabit Ethernet Port
1 x 10GBASE-T (10G/5G/2.5G/1G/100M)Jumbo Frame
YesUSB 3.2 Gen 2 (10Gbps) Port
1 x Type-C USB 3.2 Gen 2
3 x Type-A USB 3.2 Gen 2Form Factor
TowerLED Indicators
HDD 1-5, SSD 1-4, Power/Status, LAN, USBButtons
Power, Reset, USB Copy

Package Contents:

• TS-H973AX-32G-US SAN/NAS Storage System
• 1 x 10GBASE-T Ethernet cable
• 1 x Power Cord
• Power Adapter
• 24 x Flat head screw (for 3.5" HDD)
• 32 x vFlat head screw (for 2.5" HDD)
• 2 x Drive tray keys
• Quick Installation Guide (QIG)
