Qnap

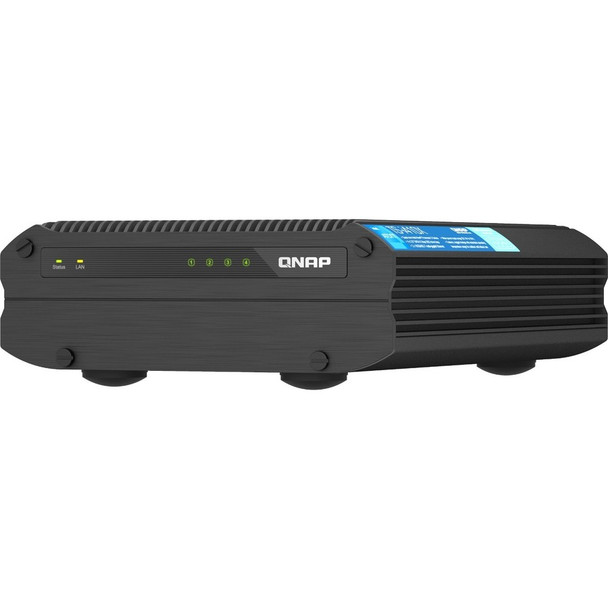

Qnap TS-I410X-8G-US Ts-i410x 4-bay Fanless Cfan 2.5in Sata Slots 2 X 10gbe 1 X Hdmi
- SKU:
- 21595744
- MPN:
- ts-i410x-8g-us
- Availability:
- Out of stock
- Stock Update:
- 06/22/2026 06:11:08 AM PST
- Stock Update:
- 06/22/2026 06:11:08 AM PST
Description
This item is brand-new, factory sealed.
With a fanless design and rock-solid chassis, the TS-i410X industrial grade NAS is designed for harsh environments. The TS-i410X can operate in temperatures of -40 ~ 70 Celsius (-40°F ~ 158°F) while its 9V ~ 36V DC wide-range power supply is ideal for factories, warehouses, transportation, and other rugged operating environments.
- 10GbE connectivity
Two 10GBASE-T/NBASE-T RJ45 ports accelerate virtualization tasks, high speed backup/recovery, file sharing, and video transmission.
- 4K HDMI output
Supports 4K playback and real-time transcoding.
- Optimized SSD performance and lifespan
Install SATA 6Gb/s SSDs and activate SSD caching for increased IOPS performance.
- Virtualization applications
Host multiple virtual machines and containers to run a wide range of applications and microservices.
- Data backup and recovery
Protect PC/Macs, virtual machines, software containers, and cloud data.
- Hybrid cloud applications
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.
Available Models | TS-i410X-8G
-
Intel® Atom® x6425E 4-core/4-thread processor, burst up to 3.0 GHz, 8 GB on board (non-expandable)
Quad cores up to 3.0 GHz with AES-NI accelerated encryption
The TS-i410X is powered by Intel® Atom® x6425E quad-core processor (burst up to 3.0 GHz) and equipped with 8 GB dual-channel memory. With hardware-accelerated AES-NI encryption, the TS-i410X also provides unmatched encryption performance while ensuring the safety of sensitive business data stored in the NAS. The TS-i410X has four 2.5-inch SATA 6Gb/s SSD slots for allocating SSDs (industrial SSDs are recommended) to greatly boost IOPS to meet the performance requirements of demanding applications.
Industrial-grade hardened hardware design with 9V ~ 36V DC wide-range power supply
With a fanless design and rock-solid chassis and compliant with the military-grade MIL-STD-810H the TS-i410X can operate in -40 ~ 70 Celsius (-40°F ~ 158°F) environments. It can be used as a set-top box, or used with the optional VESA 75 wall-mount to provide installation flexibility. With the 9V ~ 36V DC wide-range power supply, the TS-i410X is suitable for industrial and transportation applications with a variety of input voltage requirements.
Use with industrial wide temperature SSDs
When using industrial wide temperature SSDs, adjust the disk warning setting to 85°C (185°F) in the Storage & Snapshots to match the upper limit of SSD operating temperature. (The default temperature is 70°C for SSDs)
Package Contents:
- TS-I410X-8G SAN/NAS Storage System
- 1 x 10GBASE-T Ethernet Cable
- 1 x Power Cord
- 16 x Flat Head Screws (for 2.5" HDD)
- Quick Installation Guide (QIG)
- AC Adapter
Features
- TS-I410X-8G SAN/NAS Storage System
- 1 x 10GBASE-T Ethernet Cable
- 1 x Power Cord
- 16 x Flat Head Screws (for 2.5" HDD)
- Quick Installation Guide (QIG)
- AC Adapter
Specs
| Controllers | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Management & Protocols | |
| Protocols |
|
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Physical Characteristics | |
| Form Factor | Tower |
| Weight (Approximate) | 5.60 lb |
| Height | 2.6" |
| Width | 7.1" |
| Depth | 10" |
| Warranty | |
| Additional Warranty Information | <p>The TS-i410X is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.</p> |
| Limited Warranty | 3 Year |
| I/O Expansions | |
| Number of 2.5" Bays | 4 |
| Number of Total Expansion Bays | 4 |
| Memory | |
| Standard Memory | 8 GB |
| General Information | |
| Brand Name | QNAP |
| Manufacturer Website Address | http://www.qnap.com |
| Marketing Information | With a fanless design and rock-solid chassis, the TS-i410X industrial grade NAS is designed for harsh environments. The TS-i410X can operate in temperatures of -40 ~ 70 Celsius (-40°F ~ 158°F) while its 9V ~ 36V DC wide-range power supply is ideal for factories, warehouses, transportation, and other rugged operating environments. 10GbE connectivity Two 10GBASE-T/NBASE-T RJ45 ports accelerate virtualization tasks, high speed backup/recovery, file sharing, and video transmission. 4K HDMI output Supports 4K playback and real-time transcoding. Optimized SSD performance and lifespan Install SATA 6Gb/s SSDs and activate SSD caching for increased IOPS performance. Virtualization applications Host multiple virtual machines and containers to run a wide range of applications and microservices. Data backup and recovery Protect PC/Macs, virtual machines, software containers, and cloud data. Hybrid cloud applications Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS. Available Models | TS-i410X-8G Intel® Atom® x6425E 4-core/4-thread processor, burst up to 3.0 GHz, 8 GB on board (non-expandable) Quad cores up to 3.0 GHz with AES-NI accelerated encryption The TS-i410X is powered by Intel® Atom® x6425E quad-core processor (burst up to 3.0 GHz) and equipped with 8 GB dual-channel memory. With hardware-accelerated AES-NI encryption, the TS-i410X also provides unmatched encryption performance while ensuring the safety of sensitive business data stored in the NAS. The TS-i410X has four 2.5-inch SATA 6Gb/s SSD slots for allocating SSDs (industrial SSDs are recommended) to greatly boost IOPS to meet the performance requirements of demanding applications. Industrial-grade hardened hardware design with 9V ~ 36V DC wide-range power supply With a fanless design and rock-solid chassis and compliant with the military-grade MIL-STD-810H the TS-i410X can operate in -40 ~ 70 Celsius (-40°F ~ 158°F) environments. It can be used as a set-top box, or used with the optional VESA 75 wall-mount to provide installation flexibility. With the 9V ~ 36V DC wide-range power supply, the TS-i410X is suitable for industrial and transportation applications with a variety of input voltage requirements. Use with industrial wide temperature SSDs When using industrial wide temperature SSDs, adjust the disk warning setting to 85°C (185°F) in the Storage & Snapshots to match the upper limit of SSD operating temperature. (The default temperature is 70°C for SSDs) |
| Product Type | SAN/NAS Storage System |
| Product Name | TS-I410X-8G SAN/NAS Storage System |
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | TS-I410X-8G-US |
| Product Model | TS-I410X-8G |
| Processor & Chipset | |
| Processor Core | Quad-core (4 Core) |
| Processor Manufacturer | Intel |
| Processor Model | x6425E |
| Processor Type | Atom |
| Processor Speed | 2 GHz |
| Storage | |
| Number of Hard Drives Supported | 4 |
| Flash Memory Capacity | 4 GB |
| Number of Hard Drives Installed | No |
| Number of Solid State Drive Installed | No |
| Number of Solid State Drive Supported | 4 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI | Yes |
| Number of USB 3.2 Gen 2 Ports | 4 |
| Total Number of USB Ports | 4 |
| Number of Network (RJ-45) Ports | 2 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Software | |
| Operating System | QTS 5.0.0 |
