Rocstor Y10G008-B1 Truereach 4k@30zhz Hdmi Extender Over Cat6/cat6a/cat7 Ethernet Cable - 4k 30hz U

This item is brand-new, factory sealed.

4K@30Hz HDMI Video Extender up to 130ft Point to Point Extender AC Adapter

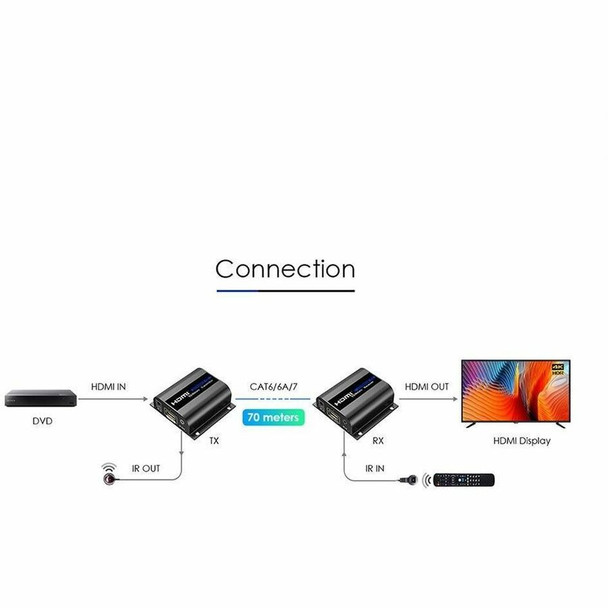

Elevate your audiovisual experience with the Rocstor TrueReach Point to Point 4K @ 30Hz HDMI Extender. Designed to deliver exceptional performance and reliability, this advanced extender allows you to extend HDMI signals over long distances without compromising on video quality. With zero latency and a transmission distance of up to 70 meters, the TrueReach HDMI Extender ensures seamless, high-definition content delivery.



Immerse yourself in stunning visuals with support for 4K resolution at 30Hz with HDR. Whether youre setting up a home theater, digital signage system, or professional presentation space, the TrueReach HDMI Extender guarantees vivid colors, crisp details, and an immersive viewing experience.



The TrueReach extender is equipped with convenient features such as IR pass-back and EDID passthrough, enabling you to control your HDMI source devices from the remote display location. This eliminates the need for additional equipment or complex installations, providing you with a streamlined setup and enhanced usability.



Thanks to its compatibility with Cat6, Cat6A, and Cat7 network cables, the Rocstor TrueReach adapts to various cable types effortlessly. Its adaptive technology automatically adjusts parameters to optimize display performance, ensuring a stable and reliable connection. Enjoy the flexibility to extend your HDMI signals while maintaining the highest level of video quality and signal integrity.Technical
Transmitter-TX
Receiver-RX
HDMI compliance
1.3
HDCP compliance
1.4
Video bandwidth
225MHz(10.2Gbps)
Video support
800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080
480i at 60Hz, 480p at 60Hz, 576i at 50Hz, 576p at 50Hz, 720p at 50/60Hz, 1080i at 50/60Hz, 1080p at 24/25/30/50/60Hz Audio support
PCM, LPCM, DTS-HD, DTS
InputTMDS signal
1.2Vp-p
EDID through
Support

IR passbackSupport
IR frequance RangeKHz
20-60KHz

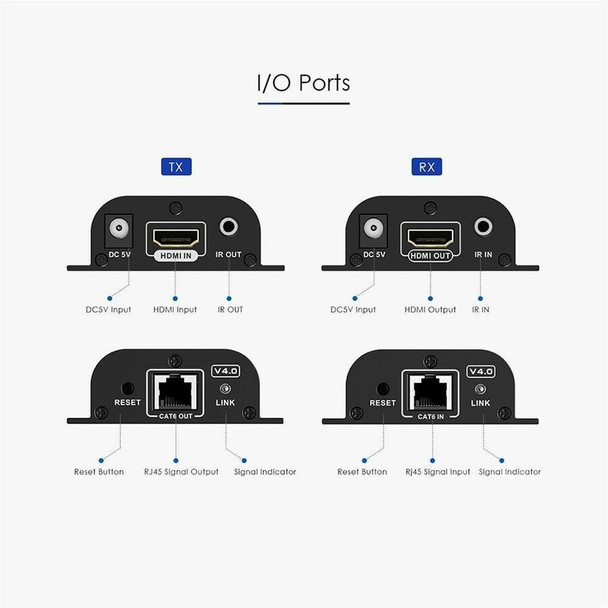

Input
1xHDMI
1xRJ45, 1x3.5mm(IR)
Output
1xRJ45, 1x3.5mm(IR)
1xHDMI
HDMI conector
Type A, Female, 19-pin
RJ-45 connectorRJ-45

Mechanical
Transmitter-TX
Receiver-RX
Housing
Metal enclosure
Fixedness
wall-mounting case with screws
Power supply
5V/500mA
Consumption
< 1.5W
<1.5W
Operation temperaure
-20 to 6^oC
Storage temperature
-30 to 70^oC
Relative humidity
0-90%(non-condensing)Item Dimension (L inchxW inchxH inch)
15 x 10 x 1

Weight
2 lbs

Warranty Information
1 Year
