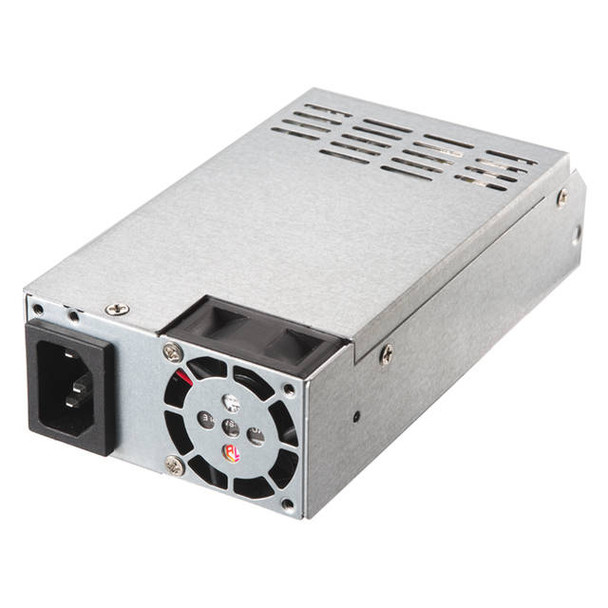

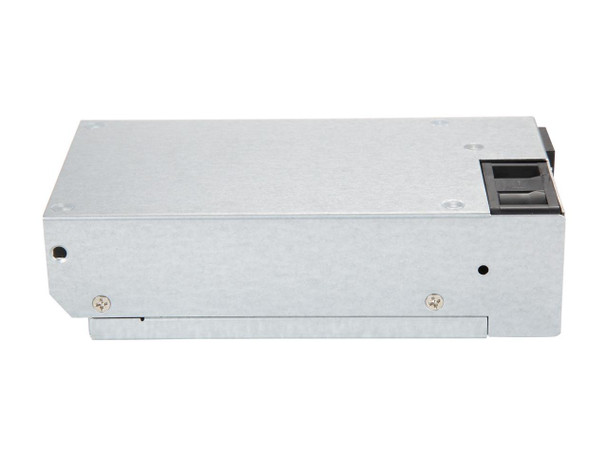

Seasonic SSP-300SUB 300W 80 PLUS Bronze Flex ATX Power Supply w/ Active PFC F0 & Fully Modular

This item is brand-new, factory sealed.

SSP-300SUB Active PFC F0

The Seasonic industrial level switch mode power supplies offer a reliable source for a wide range of setups. Our fully modular Flex ATX range with its full range AC input comes in 200 W, 250 W and 300 W versions and is the ideal choice for workstations, standard or advanced servers and various automation or communication applications. Their super low nose fan control makes them a pleasant companion in any industrial system.


Features

SATA-ready

Fully modular

High efficiency and reliability

Low ripple and noise

Super low noise fan control

Short circuit protection on all outputs

Over voltage protection

Over power protection

Fanless Mode (up to 30 % system load)
Input frequency
47 - 63 HzInrush current at cold sta
100 A max.Efficiency (at normal input voltage)
more than or equal 85 %Line regulation
+/- 1 % (typical)Load regulation
+/- 5 % (typical)Cross regulation
+/- 5 % (typical)Ripple / noise
1 %MTBF, full load at 25 ^oC ambient (excl. DC fan)
more than 100,000 hoursPower Factor Correction
95 % (typical)DC Outputs
+3.3 V /14 A /110 W
+5 V /17 A /110 W
+12 V1 /18 A /252 W
+12 V2 /18 A /252 W
-12 V /0.8 A /9.6 W
+5 Vsb /2 A /10 W
Total continuous power: 300 W
Input Type: Full rangeItem Dimension (L"xW"xH")
6 x 4 x 2

Weight
2.4 lbs

Warranty Information
3 Years
