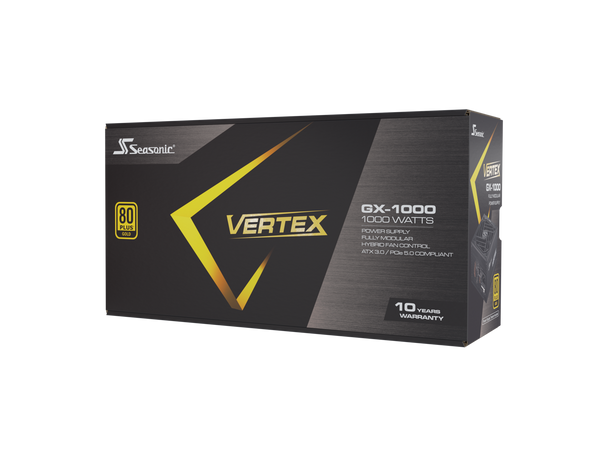

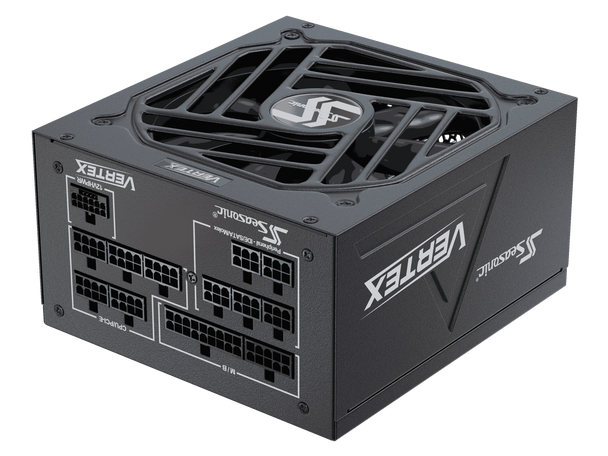

Seasonic VERTEX1000G VERTEX GX 1000W 80+ Gold Fully Modular Power Supply

This item is brand-new, factory sealed.

ATX 12 V

Fully Modular

80 PLUS Gold Certified


The new VERTEX Series units will provide 1200 W / 1000 W / 850 W and 750 Watts of true power in both Platinum and Gold levels of efficiency, with all the best features you can expect from a Seasonic power supply:

Full modularity for the best cable management options:

- Added 12VHPWR cable to comply with the new graphic cards

- 135mm Fluid Dynamic Bearing (FDB) fan for quiet operation

- Seasonic Hybrid Silent Fan Control for optimal cooling

- Complete protection features: OPP / OVP / UVP / SCP / OCP / OTP


80 PLUS GOLD

The Vertex GX Series achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.


ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)

Seasonics latest Vertex Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.


PREMIUM HYBRID FAN CONTROL

Seasonics vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.


FLUID DYNAMIC FAN BEARING

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan. 80PLUS
Gold Cybenetics Efficiency Level
TBA Cybenetics Noise Level
TBA Form Factor
Intel ATX 12 V Fan Information
Fan Size
135 mm Fan Control
Premium Hybrid Fan Control Fan Bearing
Fluid Dynamic Bearing Life Expectancy
50,000 hours at 40 ^oC, 15 % - 65 % RH Cable Information
Modularity
Fully Modular Cable type
Flat black cables Electrical Features
Operating Temperature
0 - 50 ^oC (derating from 100 % to 80 % from 40 ^oC to 50 ^oC) MTBF at 25 ^oC, excl. fan
150,000 hours AC Input
Full Range Protection
OPP, OVP, UVP, OCP, OTP, SCP Safety and Environmental
Safety and EMC
cTUVus, TUV, CB, CCC, BSMI, EAC, CE Environmental Compliance
Energy Star, RoHS, WEEE, ErP Lot 6, REACH Power Output
AC Input
Voltage: 100 V - 240 V
Current: 13 - 6.5 A
Frequency: 50 Hz - 60 Hz DC Output
Rail / Maximum Power
+3.3 V / 25A / 125 W
+5 V / 25 A / 125 W
+12 V / 83 A / 996 W
-12 V / 0.3 A / 3.6 W
+5 VSB / 3A / 15 W Total continuous power
1000 WItem Dimension (L inchxW inchxH inch)
11 x 11 x 3

Weight
6.02 lb

Warranty Information
10 years
