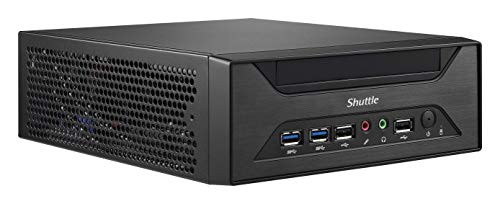

Shuttle XPC slim XH310R Barebone System - Slim PC - Socket H4 LGA-1151 - 1 x Processor Support (226876)

This item is brand-new, factory sealed.

Compact 4K PC with High Scalability for Diverse Applications


The compact, versatile XH310R series is the latest addition to our 3-liter Slim family with performance thats scalable to meet your diverse needs. With a height of only 7.8 cm, the models support 8th gen Intel processors based on the new chip, up to 32 GB of DDR4 memory, 2 x GigaLAN, HDMI 2.0a, DisplayPort, VGA, RS232 as well as NVMe SSD and WLAN module. If required, 12V DC input is available for more diversified applications. Also, for large storage requirements, users have the option to create a three-drive space by replacing the ODD. The series sets itself apart from other models, does fear no challenge in serving as Office PC, Signage Player, Kiosk Player, Surveillance Client or any other situation.


Intel 8th Generation Processors

Based on the new H310 chipset, the XH310R series is ready for 8th Gen Intel processors in the LGA 1151v2 package. With up to 6 cores of processing power, the platform supports up to 32GB (16GB x 2) of DDR4 memory, integrated UHD graphics and PCIe controllers to deliver outstanding performance onboard.


4K UHD Experience with HDMI 2.0a

The XH310R series features HDMI 2.0a output to provide 4K (4096 x 2160) resolution at up to 60FPS as well as the transmission of HDR video, allowing viewers to enjoy the vivid streaming, higher contrast ratio, and more accurate color from HDR-compatible displays.


Dual Display Productivity

Expand your application with dual displays through a flexible selection on HDMI, DisplayPort, and VGA outputs. Convenient connectivity eliminates the need for an additional upgrade and provides the benefits for dynamic signage and multitasking.
FORM FACTOR
Mini-ITX MB
3.5 L chassis
PROCESSOR
Support Intel Coffee Lake-S Core i3/i5/i7, Pemtium, Celeron LGA1151v2 CPU max. TDP 65W
CHIPSET
Intel H310 Express chipset
MEMORY
2 x DDR4 SODIMM slots,16GB per DIMM (Max 32GB)
DDR4 2400/2666 MHz
VIDEO OUTPUT
HDMI + Display + D-Sub (VGA) port dual display
AUDIO
Realtek ALC662 5.1 channel High Definition Audio
ETHERNET
Intel i211x2 Dual Lan
100Mb/s and 1Gb/s operation
Support Wake-On-LAN function
Support Teaming function
STORAGE INTERFACE
SATA 6.0Gb/s interface
ONBOARD CONNECTORS
(3) SATA connectors
(1) 1x4 pin USB 2.0 header
(2) 4pin fan connectors
(1) eDP connectors
(1) 4 pin 12V DC connectors
(1) SATA connector w/power (5V)
(1) SATA connector w/power (12V)
(1) Auto power on header
(1) RS232 voltage switch
(4) RS232 connectors
(1) Battery connector

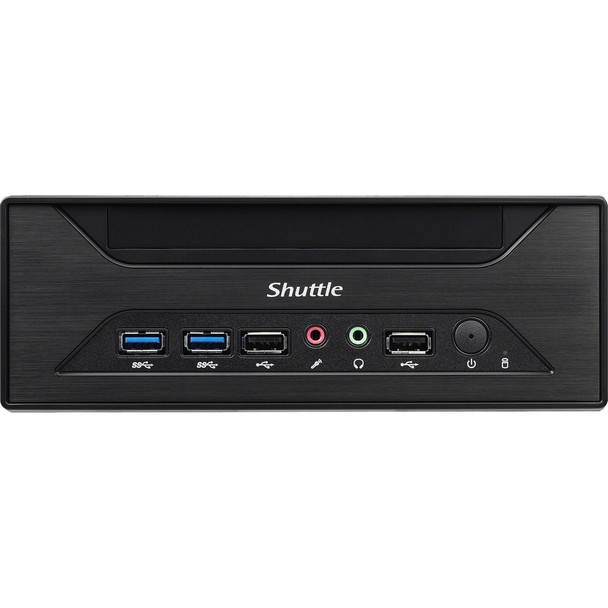

FRONT PANEL
(2) USB 2.0 ports
(2) USB 3.1 Gen1 ports
(1) Microphone-In
(1) Earphone-Out
(1) Power-On button
(1) Power LED
(1) HDD LED

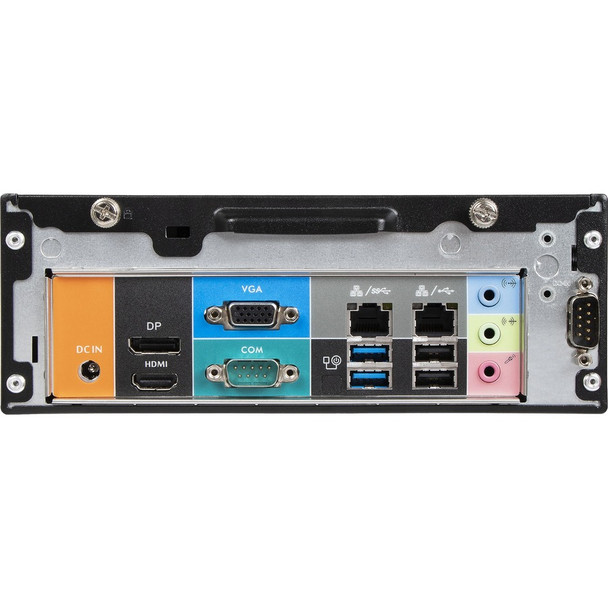

BACK PANEL
(2) RJ45 Gigabit LAN port
(1) Display port
(1) HDMI
(1) D-Sub (VGA) port
(2) USB 2.0 ports
(2) USB 3.1 Gen1 ports
(1) RS232
(1) RS232/RS422/RS485
(1) Line in port
(1) Line out port
(1) MIC in port
(1) Clear CMOS button
(1) DC in
(1) Kensington lock
(2) Wireless Antenna fixture
DRIVE BAYS
(1) 2.5" HDD / SSD bay
(1) Slim ODD bay. User can install either 1 Slim ODD or (1) 2.5" HDD/SSD
POWER
Input:100- 240V AC
Output: 19V/4.74A or 12V/7.5A DC
90W 19V Adapter bundled
ACCESSORIES
XPC Multilanguage Quick User Guide
XPC DVD Driver
1xPower cord
1xSATA cable (pre-install for HDD)
1xSATA cable (pre-install for ODD)
1x4 pin to SATA power cable
Screws
EXPANSION SLOT
(1) M.2 2280 Type M key socket
(1) M.2 2230 Type E Key socket
OS SUPPORT
Windows 10 64 bit O.S
Linux
REMARK
1. PCH4 3.5" HDD rack accessory can support
XH310/XH310V.
Item Dimension (L"xW"xH")
15 x 6 x 11
Weight
8.00 LB
Warranty Information
3 Year


Package Contents:

• XPC Slim XH310R Barebone System
• External Power Adapter with 1.7m AC Power Cord (with protective-earth contacts)
• Multi-language Installation Guide (EN, DE, FR, ES, JP, KR, SC, TC)
• DVD with Windows 10 Driver Software and Manuals in PDF Format
• Pre-installed SATA and Power Cables for One 2.5" Drive and One Slimline Drive
• Protector Cap for the CPU Socket (do not use if heat-pipe or fan is mounted)
• CPU Heatpipe Cooling System with Heatsink Compound
• 2 x Screws for Installation of Two M.2 Cards
• 8 x Screws for Installation of Two 2.5" Drives
• 2 x Screws for Installation of an Optional Slimline Drive
