Shuttle Computer

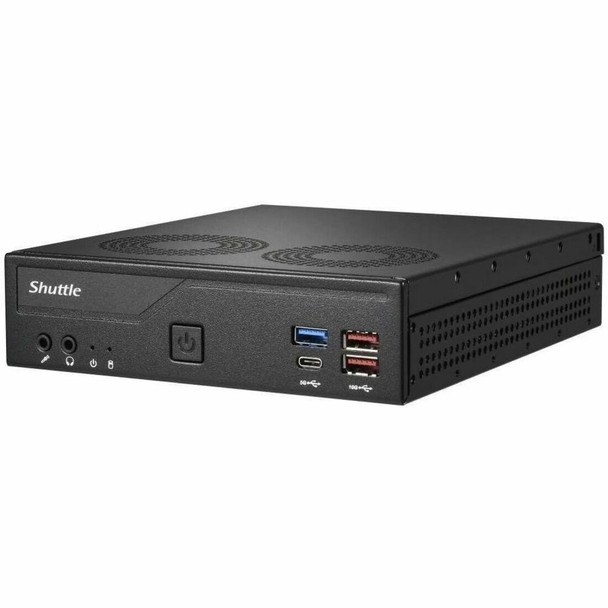

Shuttle Computer 294499 XPC Slim Barebone Desktop System
(No reviews yet)
Write a Review
- SKU:
- 21196294
- MPN:
- 294499
- Availability:
- Usually ships the same or next business day. In stock at our SC warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 08/05/2026 03:46:06 AM PST
- Stock Update:
- 08/05/2026 03:46:06 AM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.
Embracing Modern Versatility | Your Gateway to Comprehensive Computing PowerThe Shuttle XPC Slim DH770 is a 1.3-liter Barebone Mini-PC featuring the H770 chipset, designed to support Intel 12th, 13th, and 14th generation LGA1700 processors with a maximum TDP of up to 65W.
Thanks to Intel UHD graphics and dual DDR5-5600 support, the DH770 delivers enhanced graphics performance, faster memory access, and robust multitasking capabilities. It excels in AIoT Edge tasks, crystal-clear video streaming, and various demanding applications. Its compact design houses a wide array of I/O interfaces, including HDMI 2.0, DisplayPort 1.4, USB 3.2, COM (RS232/422/485), SATA 3.0, M.2 SSD, dual 2.5G LAN, and WLAN expansion. Whether utilized for a 4-display TV wall, interactive digital signage, NVR stations, or automation control, the DH770 offers exceptional versatility and reliability across various industries.
Supports the Latest Intel 14th Gen Processor
Harness the power of the latest 10nm architecture and H770 chipset with the DH770, supporting Intel Raptor Lake Refresh (14th Gen) Processors. Its performance hybrid architecture extends core technology, integrates Intel graphic technology, enhances core efficiency, and delivers intelligent workload optimization while enabling the next-generation immersive visual and creative experience.
Upgrade to 14th Gen Intel CPU Now!
? Up to 24 cores: 8 performance cores and 16 efficient cores
? Supports Intel Thread Director for optimal multitasking
? Maximized 32 threads and peak clock speed up to 5.8GHz via 120W power
? Advanced connectivity options like Wi-Fi 7FORM FACTOR
1.3L chassisPROCESSOR
Support Intel 12th/13th/14th Generation Core i3/i5/i7/i9, Pentium, Celeron LGA1700 CPU max. TDP 65WCHIPSET
Intel H770 Express chipsetMEMORY
2 x DDR5 SODIMM slots,32GB per DIMM (Max 64GB)
DDR5 5600 MHzVIDEO OUTPUT
HDMI 2.0 x 2+ DisplayPort x 2, Quad video outputs
4K playback (Dual channel memory recommended)
Integrated in CPUAUDIO
Realtek ALC 888S High Definition AudioETHERNET
(2)Intel 2.5GbE LAN
Supports 10/100/1000 Mb/Sec.
Support wake ON LAN (WOL) featureSTORAGE INTERFACE
SATA 6.0Gb/s interface
NVMe interface
Support SATA RAID 0,1ONBOARD CONNECTORS
(1) 4pin fan connector
(1) VGA(For PVG01 use)
(1) 1x4 pin USB header(For WWN03 use)
(1) SATA connector w/power
(1) Front audio header
(1) Auto power on header
(1) RS232 voltage switchFRONT PANEL
(2) USB 3.2 Gen1 ports
(Include Type C x1)
(2) USB 3.2 Gen2 ports
(1) Microphone-In
(1) Line-Out
(1) Power-On button
(1) Power LED
(1) HDD LEDBACK PANEL
(2) RJ45 LAN port w/LED
(2) HDMI port
(2) Display port
(2) USB 3.2 Gen1 ports
(2) USB 3.2 Gen2 ports
(1) RS232
(1) RS232/RS422/RS485
(1) External 4pin header
(1) DC-in
(2) Wireless Antenna fixture
(1) Kensington lockDRIVE BAYS
(1) 2.5" HDD / SSD bayPOWER
120W Power Adapter
Input:100- 240V AC
19V 6.32AACCESSORIES
XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA Screw pack
Power cord
Thermal Grease
HDD Screw pack
120W adapterEXPANSION SLOT
(1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socketOS SUPPORT
Windows 11 64 bit O.S
LinuxREMARK
RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide.OPERATING TEMPERATURE
0oC-50oCItem Dimension (L"xW"xH")
11 x 6 x 11
Weight
7 lbs
Warranty Information
3 years
Features
Energy Star:
Yes
Yes
Specs
| Controllers | |
| Controller Type |
|
| Power Description | |
| Thermal Design Power | 65 W |
| Maximum Power Supply Wattage | 120 W |
| Frequency |
|
| Input Voltage |
|
| Processor | |
| Processor Supported |
|
| Processor Socket | Socket LGA-1700 |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H770 |
| Physical Characteristics | |
| Form Factor | Slim PC |
| Weight (Approximate) | 2.87 lb |
| Product Color | Black |
| Height | 1.7" |
| Color Family | Black |
| Width | 6.5" |
| Depth | 7.5" |
| I/O Expansions | |
| Number of 2.5" Bays | 1 |
| Number of M.2 Interfaces | 2 |
| Number of Total Expansion Bays | 1 |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Maximum Memory Supported | 64 GB |
| Total Number of Memory Slots | 2 |
| Memory Standard | DDR5-5600/PC5-44800 |
| Display & Graphics | |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology | DDR5 SDRAM |
| General Information | |
| Brand Name | Shuttle |
| Manufacturer Website Address | http://www.us.shuttle.com |
| Marketing Information | ROBUST 1.3-LITRE SLIM PC SUPPORTS INTEL CORE PROCESSORS WITH SOCKET LGA1700 AND FOUR UHD DISPLAYS The Shuttle XPC slim Barebone DH770 with H770 chipset houses the performance of Intel's 12th/13th/14th generation Core desktop processors (codenamed Alder Lake-S and Raptor Lake-S [Refresh]) for socket LGA1700 in a compact 1.3-litre format. The DH770 allows for four Ultra HD displays to be operated at the same time via 2x HDMI and 2x DisplayPort. It also offers Dual Intel 2.5G LAN, four USB 3.2 Gen 2 and COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry. |
| Product Type | Barebone System |
| Product Name | XPC slim DH770 Barebone System |
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | DH770 |
| Product Model | DH770 |
| Product Line | XPC slim |
| Storage | |
| Supported Storage Drive Interfaces |
|
| Supported Storage Drive Types |
|
| Interfaces/Ports | |
| USB Type-C Detail | 1x USB 3.2 Gen 1 Type C |
| Network (RJ-45) | Yes |
| USB Type-C (Front) | Yes |
| DisplayPort | Yes |
| Number of USB 2.0 Ports | 0 |
| Number of USB 3.2 Gen 2 Ports | 4 |
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| HDMI (Rear) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Operating System | |
| Operating System Supported |
|
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Shuttle Computer 294499 XPC Slim Barebone Desktop System
$548.08
