Shuttle Computer

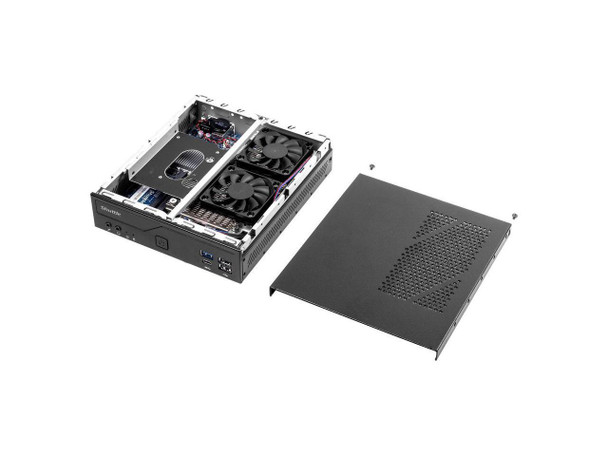

Shuttle XPC slim DH610S Barebone System - Slim PC - Socket LGA-1700 - 1 x Processor Support
(No reviews yet)
Write a Review
- SKU:
- 19908409
- MPN:
- dh610s
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/13/2025 12:06:29 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $423.29 each 423.29 |
- Stock Update:
- 12/13/2025 12:06:29 AM PST
Description
This item is brand-new, factory sealed.
1-liter Entry-level PC Packed in Enhanced 13th Gen FeaturesShuttle XPC Slim DH610S supports Intel 13th Gen LGA1700 Alder Lake processors and integrated UHD graphics 700 series. With a built-in HDMI 2.0 and a DisplayPort, users can easily configure two 4K displays. Multiple I/O ports are included, the model provides four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, an Intel 1GbE LAN, and two M.2 expansion slots to deliver exceptional productivity and a reliable operation. It is affordable and a perfect option for simple digital signage, office, and thin-client use.
Intel 13th Gen processor
Based on the H610 chipset, DH610S is designed for 13th Gen Intel Raptor Lake processors and supports up to 64GB (32GBx2) of DDR4-3200 memory, providing powerful computing capacity. Intel UHD Graphics 700 series is integrated to deliver outstanding performance.
Multiple Displays Productivity
DH610S supports two independent displays via a built-in HDMI 2.0b and a DisplayPort output. Moreover, an optional accessory PVG01 can be chosen to offer an optional VGA port, providing productivity benefits for multitasking and digital signage applications.
Strong Expansion Capacity with M.2
With a native M.2 2280/2260/2242 Type M slot and an M.2 2230 Type E slot, DH610S offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
*M.2 2280 key M supports SATA 3.0 and PCIe 3.0 x 4 storage interfaces.
Excellent and Flexible Connectivity
DH610S features flexible connectivity options for four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, and an Intel 1GbE Lan that support Wake on LAN functions.FORM FACTOR
1.3L chassis
PROCESSOR
Support Intel 12/13th LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor
(BIOS v2.01 and updated version support Raptor Lake (13th) CPU)
CHIPSET
Intel H610 Express chipset
MEMORY
2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB)
DDR4 up to 3200 MHz
VIDEO OUTPUT
HDMI 2.0 x 1 + DisplayPort x 1, Dual video outputs
4K playback (Dual channel memory recommended)
Integrated in CPU
AUDIO
Realtek High Definition Audio
ETHERNET
(1)Intel I219 GbE Lan
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function
STORAGE INTERFACE
SATA 6.0Gb/s interface
ONBOARD CONNECTORS
(1) 4pin fan connector
(1) VGA(For PVG01 use)
(1) 1x4 pin USB header(For WWN03 use)
(1) SATA connector w/power
(1) Front audio header
(1) Auto power on header
FRONT PANEL
(2) USB 3.2 Gen1 ports
(Include Type C x1)
(2) USB 2.0 ports
(1) Microphone-In
(1) Line-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
BACK PANEL
(1) RJ45 Gigabit LAN port w/LED
(1) HDMI port
(1) Display port
(2) USB 3.2 Gen1 ports
(2) USB 2.0 ports
(1) External 4pin header
(1) DC-in
(2) Wireless Antenna fixture
(1) Kensington lock
DRIVE BAYS
(1) 2.5" HDD / SSD bay
POWER
120W Power Adapter
Input:100 - 240V AC
19V 6.32A
ACCESSORIES
XPC Multilanguage Quick User Guide
XPC DVD Driver
Power cord
Thermal Grease
HDD Screw pack
120W adapter
EXPANSION SLOT
(1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socket
OS SUPPORT
Windows 10/11 64 bit O.S
Linux
OPERATING TEMPERATURE
0oC - 50oCItem Dimension (L inchxW inchxH inch)
11 x 6 x 10
Weight
5 lbs
Warranty Information
3 Years
Features
Package Contents:
Yes
Energy-related Products Directive (ErP)
Yes
Restriction of Hazardous Substances (RoHS)
- XPC slim DH610S Barebone System
- Multi-Language User Guide (EN, DE, FR, ES, JP, KR, SC, TC)
- 4 x Screws M3 x 4 mm (to mount a 2.5" storage device into the bay)
- 2 x Screws M3 x 5 mm (silver colour, to mount two M.2 cards)
- Driver DVD (Windows 64-bit)
- Serial ATA Cable for 2.5" Drive Including Power Cable
- External 120 W Power Adapter with Power Cord
- Protection Cap for CPU Socket (do not use if heatpipe or fan is mounted)
- Heatsink Compound
Environmentally Friendly:
Yes
Energy Efficiency Compliance:
Energy-related Products Directive (ErP)
Energy Star:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Controllers | |
| Controller Type | Serial ATA/600 |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Frequency |
|
| Input Voltage |
|
| Processor | |
| Processor Supported |
|
| Processor Socket | Socket LGA-1700 |
| Number of Processors Supported | 1 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H610 |
| Physical Characteristics | |
| Form Factor | Slim PC |
| Weight (Approximate) | 2.87 lb |
| Product Color | Black |
| Height | 1.7" |
| Color Family | Black |
| Width | 6.5" |
| Depth | 7.5" |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Maximum Memory Supported | 64 GB |
| Total Number of Memory Slots | 2 |
| Memory Standard | DDR4-3200/PC4-25600 |
| Display & Graphics | |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology | DDR4 SDRAM |
| General Information | |
| Brand Name | Shuttle |
| Manufacturer Website Address | http://www.us.shuttle.com |
| Marketing Information | Robust 1.3-litre Slim PC supports Intel Core Gen. 12 processors "Alder Lake-S" and two UHD displays The Shuttle XPC slim Barebone DH610S with H610 chipset houses the performance of Intel's 12th generation Core desktop processors (codenamed Alder Lake-S) for socket LGA1700 in a compact 1.3-litre format. The DH610S allows for two Ultra HD displays to be operated at the same time via HDMI and DisplayPort. It also offers Intel LAN, eight USB ports and Audio ports. The slim metal chassis provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry. |
| Product Type | Barebone System |
| Product Name | XPC slim DH610S Barebone System |
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | DH610S |
| Product Model | DH610S |
| Product Line | XPC slim |
| Interfaces/Ports | |
| Number of SATA Interfaces | 1 |
| USB Type-C Detail | 1 x USB 3.2 Gen 1 Type-C |
| USB Type-C (Front) | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| HDMI (Rear) | Yes |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Operating System | |
| Operating System Supported |
|
