Shuttle Computer
Shuttle XPC slim DS50U3 Barebone System - Slim PC - 1 x Processor Support - 1 Core i3 13th Gen i3-1315U 1.20 GHz Dual-core [2 Core]
- SKU:
- 21250779
- MPN:
- ds50u3
- Availability:
- Usually ships the same or next business day. In stock at our TX warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 08/04/2026 09:16:39 PM PST
- Stock Update:
- 08/04/2026 09:16:39 PM PST
Description
This item is brand-new, factory sealed.
FANLESS SLIMPC WITH INTEGRATED ULV PROCESSOR IN INDUSTRIAL DESIGN
The DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5" drive and two M.2-2280 SSD cards. Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.
Features
Yes
Specs
| Controllers | |
| Controller Type |
|
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Frequency |
|
| Input Voltage |
|
| Processor | |
| Processor Core | Dual-core (2 Core) |
| Number of Processors Installed | 1 |
| 64-bit Processing | Yes |
| Processor Generation | 13th Gen |
| Processor Model | i3-1315U |
| Maximum Turbo Speed | 4.50 GHz |
| Processor Type | Core i3 |
| Number of Processors Supported | 1 |
| Processor Speed | 1.20 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Physical Characteristics | |
| Form Factor | Slim PC |
| Weight (Approximate) | 3.53 lb |
| Product Color | Black |
| Height | 1.6" |
| Color Family | Black |
| Width | 6.5" |
| Depth | 7.9" |
| I/O Expansions | |
| Number of M.2 Interfaces | 3 |
| Number of Total Expansion Bays | 1 |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Maximum Memory Supported | 64 GB |
| Memory Standard | DDR5-5200/PC5-41600 |
| Display & Graphics | |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology | DDR5 SDRAM |
| General Information | |
| Brand Name | Shuttle |
| Manufacturer Website Address | http://www.us.shuttle.com |
| Marketing Information | FANLESS SLIMPC WITH INTEGRATED ULV PROCESSOR IN INDUSTRIAL DESIGN The DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5" drive and two M.2-2280 SSD cards. Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia. |
| Product Type | Barebone System |
| Product Name | XPC slim DS50U3 Barebone System |
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | DS50U3 |
| Product Model | DS50U3 |
| Product Series | DS50U |
| Product Line | XPC slim |
| Storage | |
| Supported Storage Drive Interfaces |
|
| Supported Storage Drive Types |
|
| Interfaces/Ports | |
| Number of SATA Interfaces | 1 |
| Network (RJ-45) | Yes |

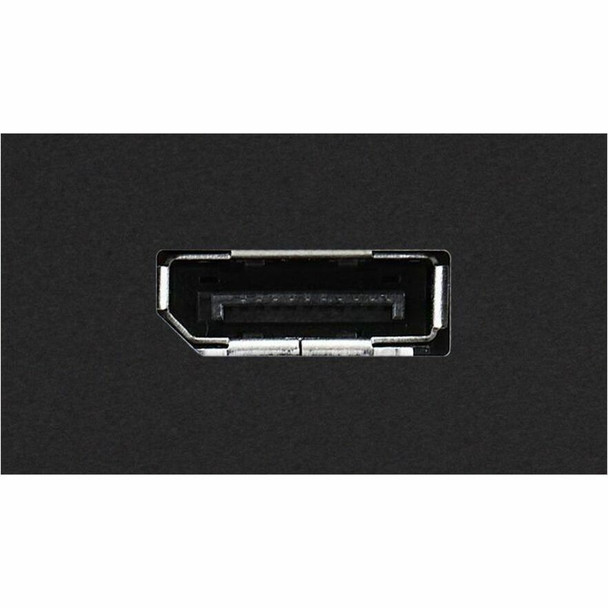

| DisplayPort | Yes |

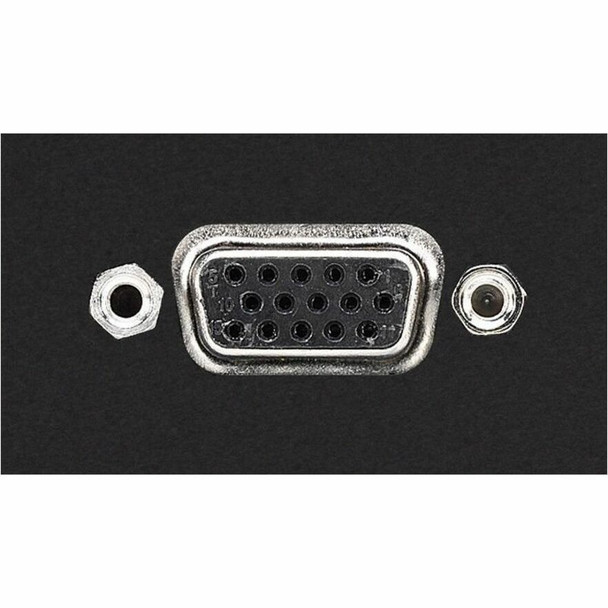

| Number of VGA Ports | 1 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Ports | 4 |

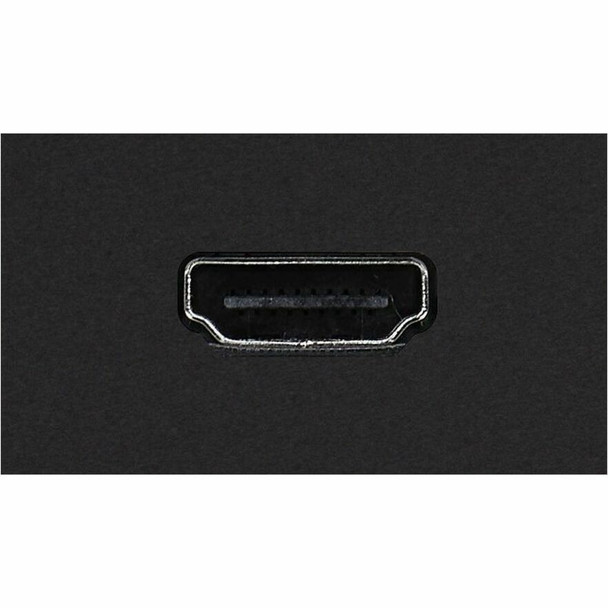

| HDMI (Rear) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network & Communication | |
| Ethernet Technology |
|
| Operating System | |
| Operating System Supported |
|
