Shuttle Computer

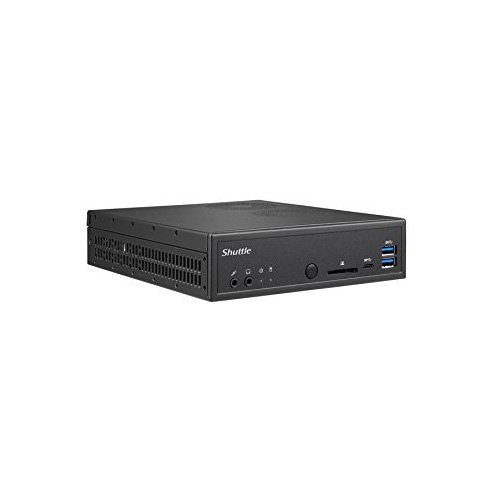

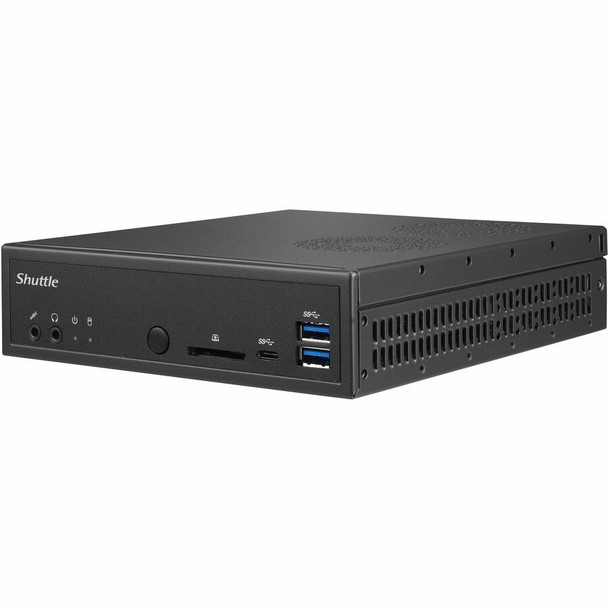

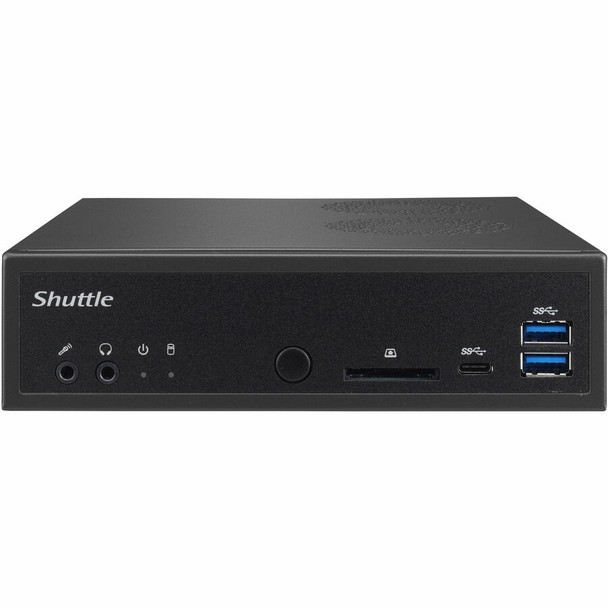

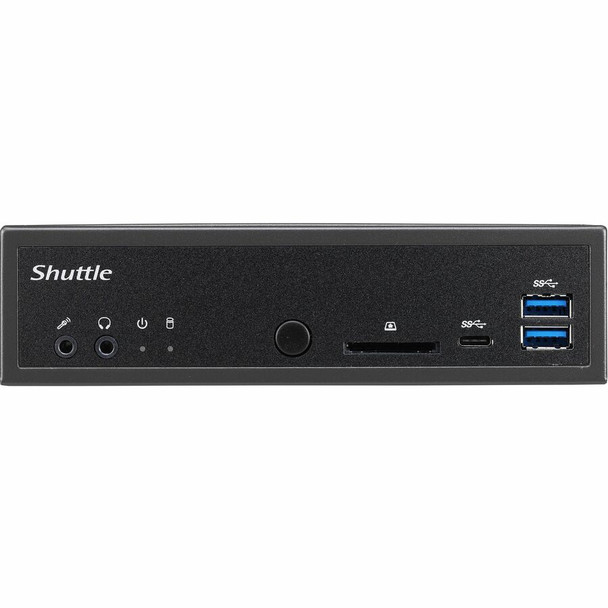

Shuttle XPC slim DH270 Barebone System Slim PC - Intel H270 Chipset - Socket H4 LGA-1151 - 1 x Processor Support

SKU:
18216027
MPN:
dh270
Availability:
Out of stock
Stock Update:
07/16/2021 03:43:22 PM PST
  • Main
  • Alternate-Image6
  • Alternate-Image5
  • Alternate-Image4
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image1
$299.99   Add to cart for price.

Out of stock

Stock Update:
07/16/2021 03:43:22 PM PST

Description

This item is brand-new, factory sealed.

Rugged and powerful enough to drive even up to three 4K displays

Geared towards large and high-resolution signage application, the Shuttle XPC DH270 XPC slim, is based on the Intel®H270 chipset, supports LGA 1151 Intel®6th/7th generation Core™ i 65W processors. With integrated Intel® HD graphics, the DH270 can support 4K/UHD video playback on up to three screens via three HDMI outputs. In addition it supports DDR4-2133/2400 memory, as well as Intel® Optane™ technology improve on processing and data transfer speed and agility. The DH270 provides multiple I/O and high-speed storage interfaces, including USB 2.0, USB 3.0, SATA 6Gbps, RS232/422/485, M.2 type M and A/E, and Mini PCIe. Thanks to Shuttle's exclusive heat-pipe cooling with smart fan, the DH270 is capable of long-term operation at high stability and reliability levels Its slim 43mm design and VESA support to makes it easy to integrate in diverse commercial environments.

Supports Intel® 6th /7th Generation Core™ Processor

Based on socket LGA 1151, the all-new DH270 supports both Intel® 6th/ 7th Generation (Skylake/Kaby Lake) Core™ i3/i5/i7, Pentium®, and Celeron® 65W processors. The built-in DirectX 12 compatibility with Intel® HD Graphics significantly increases CPU and GPU performance.

Intel® Optane™ Technology

With a 7th Gen Intel® Core™ processor, the DH270 supports the latest Intel® Optane™ technology which makes your overall system performance up to 28% faster.

Triple Display Support

Spread your content across three screens via HDMI outputs. You can smoothly convey dynamic high-resolution information and target promotions at your audience.

High-speed data transmission interface

The DH270 features native SATA 6Gbps, two USB 3.0 and one USB 3.0 Type-C interface. No more figuring out the right way of plugging in a USB device, USB 3.0 Type-C could be easier to use and is able to increase data transfer speed too.

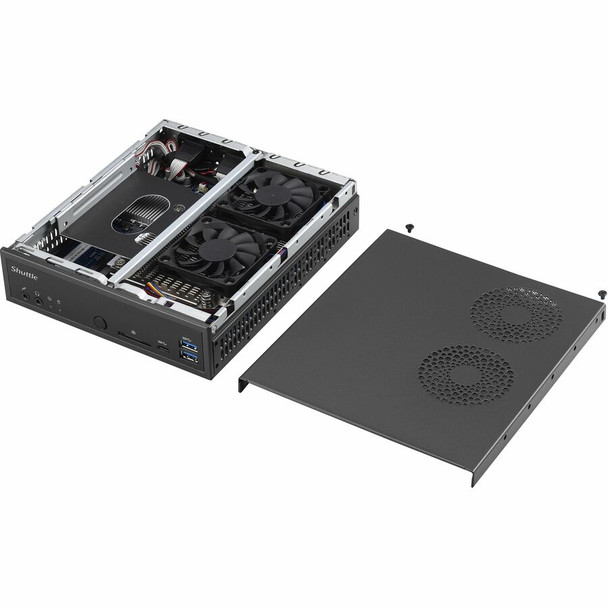

Heat-pipe cooling technology

The DH270 features Shuttle's exclusive heat-pipe cooling module with smart fan design. The clever ventilation design allows for constant air circulation between the inside and outside of the machine resulting in high stability and low noise for long-term operation.

Supports Intel® Dual Gigabit LAN

The DH270 has built-in Intel® Dual Gigabit LAN, supports Wake on LAN and Teaming Mode function to provide high-speed data transfer capability and thus a better business networking integration.

24/7 Nonstop Operation

The DH270 is officially approved for 24/7 permanent operation while maintaining. Shuttle's low-power consumption design. Highly reliable and long-term operation is essential for digital signage and other vertical applications.

Operating System support-Windows 10 64bit
-Windows 7 32/64bit (Skylake only)
-Linux

Intel®H200 Series Chipset

With the integrated Intel® H270 chipset, the DH270 supports dual channel DDR4 2400 SO-DIMM memory up to 32GB (2x16GB). It also comes with Intel® Gigabit LAN, SATA 6Gbps and USB3.0 interfaces for superb data transfer speed.

Supports 4K Ultra HD

The DH270 supports playback of 4K high resolution (3840x2160) content via HDMI 2.0. At four times higher resolution as the Full HD standard, viewers will enjoy detail-rich and crystal clear images.

Supports two M.2 expansion slots

The DH270 has one built-in M.2 2280/2260/2242 Type M and one M.2 2230 Type A/E slot for an M.2 SSD and a WiFi card or other compatible devices.



Package Contents:
  • XPC slim DH270 Barebone System
  • Quick Guide
  • Driver DVD
  • 90W Power Adapter
  • HDD Screw Pack
  • Power Cord
  • Thermal Grease
  • VESA Mount
  • VESA Screw Pack

Features

Package Contents:
  • XPC slim DH270 Barebone System
  • Quick Guide
  • Driver DVD
  • 90W Power Adapter
  • HDD Screw Pack
  • Power Cord
  • Thermal Grease
  • VESA Mount
  • VESA Screw Pack



Country of Origin:
China



Specs

Controllers
Controller TypeSerial ATA/600
Power Description
Maximum Power Supply Wattage90 W
Input Voltage
Processor
Processor Supported
Processor SocketSocket H4 LGA-1151
64-bit ProcessingYes
Number of Processors Supported1
Chipset
Chipset ManufacturerIntel
Chipset ModelH270
Physical Characteristics
Form FactorSlim PC
Height1.7"
Width6.5"
Depth7.5"
Warranty
Limited Warranty1 Year
I/O Expansions
Number of Internal 2.5" Bays1
Number of Total Expansion Bays1
Memory
Memory TechnologyDDR4 SDRAM
Number of Total Memory Slots2
Maximum Memory Supported32 GB
Memory StandardDDR4-2400/PC4-19200
Display & Graphics
Graphics Controller ManufacturerIntel
Graphics Controller ModelHD Graphics
General Information
Brand NameShuttle
Manufacturer Website Addresshttp://www.us.shuttle.com
Marketing InformationRugged and powerful enough to drive even up to three 4K displays
Geared towards large and high-resolution signage application, the Shuttle XPC DH270 XPC slim, is based on the Intel®H270 chipset, supports LGA 1151 Intel®6th/7th generation Core™ i 65W processors. With integrated Intel® HD graphics, the DH270 can support 4K/UHD video playback on up to three screens via three HDMI outputs. In addition it supports DDR4-2133/2400 memory, as well as Intel® Optane™ technology improve on processing and data transfer speed and agility. The DH270 provides multiple I/O and high-speed storage interfaces, including USB 2.0, USB 3.0, SATA 6Gbps, RS232/422/485, M.2 type M and A/E, and Mini PCIe. Thanks to Shuttle's exclusive heat-pipe cooling with smart fan, the DH270 is capable of long-term operation at high stability and reliability levels Its slim 43mm design and VESA support to makes it easy to integrate in diverse commercial environments.
Supports Intel® 6th /7th Generation Core™ Processor
Based on socket LGA 1151, the all-new DH270 supports both Intel® 6th/ 7th Generation (Skylake/Kaby Lake) Core™ i3/i5/i7, Pentium®, and Celeron® 65W processors. The built-in DirectX 12 compatibility with Intel® HD Graphics significantly increases CPU and GPU performance.
Intel® Optane™ Technology
With a 7th Gen Intel® Core™ processor, the DH270 supports the latest Intel® Optane™ technology which makes your overall system performance up to 28% faster.
Triple Display Support
Spread your content across three screens via HDMI outputs. You can smoothly convey dynamic high-resolution information and target promotions at your audience.
High-speed data transmission interface
The DH270 features native SATA 6Gbps, two USB 3.0 and one USB 3.0 Type-C interface. No more figuring out the right way of plugging in a USB device, USB 3.0 Type-C could be easier to use and is able to increase data transfer speed too.
Heat-pipe cooling technology
The DH270 features Shuttle's exclusive heat-pipe cooling module with smart fan design. The clever ventilation design allows for constant air circulation between the inside and outside of the machine resulting in high stability and low noise for long-term operation.
Supports Intel® Dual Gigabit LAN
The DH270 has built-in Intel® Dual Gigabit LAN, supports Wake on LAN and Teaming Mode function to provide high-speed data transfer capability and thus a better business networking integration.
24/7 Nonstop Operation
The DH270 is officially approved for 24/7 permanent operation while maintaining. Shuttle's low-power consumption design. Highly reliable and long-term operation is essential for digital signage and other vertical applications.
Operating System support
-Windows 10 64bit
-Windows 7 32/64bit (Skylake only)
-Linux
Intel®H200 Series Chipset
With the integrated Intel® H270 chipset, the DH270 supports dual channel DDR4 2400 SO-DIMM memory up to 32GB (2x16GB). It also comes with Intel® Gigabit LAN, SATA 6Gbps and USB3.0 interfaces for superb data transfer speed.
Supports 4K Ultra HD
The DH270 supports playback of 4K high resolution (3840x2160) content via HDMI 2.0. At four times higher resolution as the Full HD standard, viewers will enjoy detail-rich and crystal clear images.
Supports two M.2 expansion slots
The DH270 has one built-in M.2 2280/2260/2242 Type M and one M.2 2230 Type A/E slot for an M.2 SSD and a WiFi card or other compatible devices.
Product TypeBarebone System
Product NameXPC slim DH270 Barebone System
ManufacturerShuttle, Inc
Manufacturer Part NumberDH270
Product ModelDH270
Product LineXPC slim
Interfaces/Ports
Number of SATA Interfaces1
Total Number of USB Ports7
Number of USB 3.0 Ports3
Network & Communication
Ethernet TechnologyGigabit Ethernet
Operating System
Operating System Supported
