Shuttle XPC X50V8 Barebone System - Desktop - Socket BGA-1528 - 1 x Processor Support - Intel Celeron 10th Gen 5205U Dual-core [2 Core] (266554)

This item is brand-new, factory sealed.

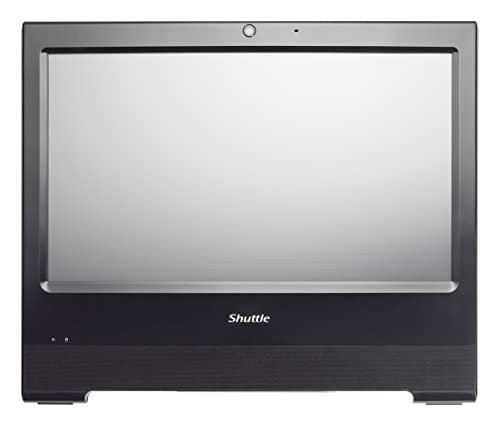

XPC all-in-one X50V8
All-in-One PC for POS, POI, Kiosk Applications
The Shuttle XPC all-in-one X50V8 is the latest addition to the X50 Series and is powered by an Intel ULV processor of the 10th generation "Comet Lake". The modern processor architecture helps improve on power consumption and computing power. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.
Intel Celeron 5205U processor
Resistive 15.6" (39.6 cm) touch screen (1366768 px)
Up to 64 GB of DDR4 memory
HDMI 1.4b and VGA for two external displays
Space for 2.5" drive and M.2 SSD (NVMe)
Internal USB socket for add-ons (dongle, 4G module)
Gigabit Ethernet, WLAN (ac) and Bluetooth
6x USB external, 1x USB internal, COM/LPT/DIO ports (option)
Integrated speaker, camera and microphone
Flexible stand and VESA mounting option
Available in two coloursFanless and silent
Passive heatpipe cooling, no fan noise at all
Perfect to be used in noise-sensitive environments
Fanless, dust-free and thus virtually maintenance-free24/7 nonstop operation
This device is approved for 24/7 permanent operation.
Requirements:
- Free circulation of air amongst the PC must be guaranteed.
- Ventilation holes must be kept clear.
- If a hard disk is installed, this must also be approved for permanent operation by its manufacturer.IP54 protected
The front panel is dust-protected and protected from
splashing of water according to protection class IP54.Chassis
Colour: black
100mm VESA mount capable
Mounting hole for Kensington lockOperating system
This system comes without operating system.
It is compatible with:
- Windows 10/11 - 64-bit
- Linux - 64-bitTouchscreen
Touchscreen function supports fingertip input
Resistive 5-wire single-touch technology
Stylus for the built-in touchscreen39.6cm display (15.6")
39.6 cm / 15.6" LC-display, ratio: 16:9 wide-screen panel
Resolution: 1366 x 768 equal 1.05 Megapixel
Backlight unit: High power LED, Luminance: 220 cd/sqm
Glass thickness: 0.5 mmProcessor
Model: Intel Celeron 5205U (ULV)
System-on-a-chip architecture (SoC): no chipset required
FCBGA1528 package - directly soldered onto the mainboard
Code name: Comet Lake-U (10th Generation Intel Core)
Cores / Threads: 2 / 2
Clock rate: 1.9 GHz
L1/L2/L3 Cache: 256 kB / 1 MB / 2 MB
Memory controller: DDR4-2400 Dual Channel (1.2 V)
TDP wattage: 15 W maximum
Manufacturing process: 14 nm
Maximum Tjunction Temperature: 100 ^oC
Supports 64-bit, VT-x (EPT), VT-d, Enhanced SpeedStep, NX bit, AES-NI, SSE 4.1/4.2Integrated Graphics
Intel UHD Graphics for 10th Gen Intel Core Processors
GPU clock frequency: 300-900 MHz
Execution Units (EUs): 12
Supports DirectX 12
Supports full H264, H265 8/10 bit, VP8/9, VC-1, AVC hardware decoding
Supports Quick Sync Video and Clear Video HD technologyUp to three displays simultaneously
Two video ports support two additional independent screens:
1) HDMI 1.4a supports 1920 x 1080 at 60 Hz or 3840 x 2160 at 30 Hz
2) VGA / D-Sub analog video supports 1920 x 1080 at 60 Hz
Special conditions for operation in Multi-Monitor mode:
1) Clone mode: all displays show the same content at 1366x768 resolution
2) Extended mode: all displays show different contentBIOS
AMI BIOS in 8 MByte EEPROM with SPI interface
Supports Power fail resume / always on
Supports Wake-on-LAN (WOL) from S3, S4, S5 ACPI states
Supports hardware monitoring and Watchdog functionality
Supports Firmware TPM v2.0 functionalityMemory
2x SO-DIMM slot with 260 pins
Supports DDR4-2400 (PC4-19200) SDRAM at 1.2 V
Faster RAM modules (e.g. DDR4-2666/3200) are backwards compatible and also run at DDR4-2400 speed here.
Supports Dual Channel mode
Supports a maximum of 32 GB per DIMM, maximum total size: 64 GB
Supports two unbuffered DIMM modules (no ECC or registered)Hard disk drive / SSD
Supports one SATA hard disk or one SATA SSD drive in 6.35 cm / 2.5" format
The SATA 3.0 interface supports up to 600MB/s data transfer speed (6 Gbit/s)
Supports one drive with up to 12.5 mm in height
SATA cable pre-installedM.2 Slot for SSD Cards
The M.2 2280 M-key slot provides the following interfaces:
- PCI-Express Gen. 2.0 X4
- SATA v3.0 (max. 6 Gbps)
It supports M.2 cards with a width of 22 mm
and a length of 42, 60 or 80 mm (type 2242, 2260, 2280).
Supports M.2 SATA SSDs (with B+M key) and M.2 PCIe NVMe SSDs (with M key)Card Reader
Integrated card reader supports SD, SDHC and SDXC memory flash cardsWebcam
Integrated Full HD webcam (1920 x 1080 pixels)Microphone and speakers
Front panel with integrated Electret Condenser Microphone and
2x 2 W speakersIntegrated Audio
Realtek ALC269 (HD-Audio) or C-Media CM6542 (USB)
Two analog audio connectors (3.5 mm) on the bottom side:
1) Line-out (head-phones)
2) Microphone input
Digital Audio is supported via HDMI.Wired Network
Intel i211 or i219LM Ethernet Controller
Supports 10 / 100 / 1.000 MBit/s operation
Supports WAKE ON LAN (WOL) from S3, S4 modes
Supports network boot by Preboot eXecution Environment (PXE)Wireless Network (WLAN)
Built-in M.2-2230-E WLAN card with two internal antennas
WLAN Controller Realtek RTL8821CE-CG
Supports WiFi IEEE 802.11b/g/n/ac on the 2.4 / 5 GHz band, 1T1R
Supports 20 / 40 / 80 MHz channel bandwidth
Security: supports WPA(-PSK), WPA2(-PSK), WEP 64/128 bit, IEEE 802.11x, IEEE 802.11i
Supports Bluetooth 4.2 on the 2.4 GHz band
