siig
SIIG 8-Port HDMI Splitter Over Cat6 Extender with IR - 40M CEH24811S1
(No reviews yet)
Write a Review
- SKU:
- 18012409
- MPN:
- 224090
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/31/2025 04:40:16 AM PST
- Stock Update:
- 12/31/2025 04:40:16 AM PST
Description
This item is brand-new, factory sealed.
Extends high definition video signals up to 130ft (40m) over economical Cat6 cabling to up to eight HDMI displaysDelivers crystal clear Full HD content up to 1080p@60Hz resolution
IR control through Cat6 allows you to control the HDMI source device at the remote display location
High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
Plug-n-Play installation, no software installation or hardware setup is required
Compliant with HDMI 1.3 and HDCP 1.2
Transmission distance:
up to 40m (130ft) at 1080p at 60Hz resolution
Supports Digital stereo 2-ch DTS and PCM 7.1-ch audio
Supports full frequency IR signal from 20KHz to 60KHz
Supports EDID manual setting function
Resolution:
480p / 720p / 1080i / 1080p 60Hz
Metal housing with wall mount design
Network cable:
UTP/STP CAT5e/6/6a/7
Product:
Transmitting unit (TX):
Housing: Metal
Color: Black
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Type A, Female, loopout
1x 3.5mm jack, IR Blaster
8x 8-pin, RJ45, HDMI signal output
1x Power jack
1x Reset button
1x 3-Pin Switch, EDID adjustment
Receiving unit (RX):
Housing: Metal
Color: Black
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR Receiver
1x 8-pin, RJ45, HDMI signal input
1x Power jack
1x Reset button
Power adapter:
Input: 100-240V / 50-60Hz
Output: DC 12V/2A for TX
Output: DC 5V/1A for RX
UL listed: E335801 / Level: VI
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Notes:
This kit is point to point connection and comes with 1 Transmitter and 8 Receivers. Does not work through routers or network switches
Good quality Cat6 cables are essential in delivering reliable quality content
Item Dimension (L"xW"xH")
4 x 14 x 12
Weight
5.29 LB
Warranty Information
2 years

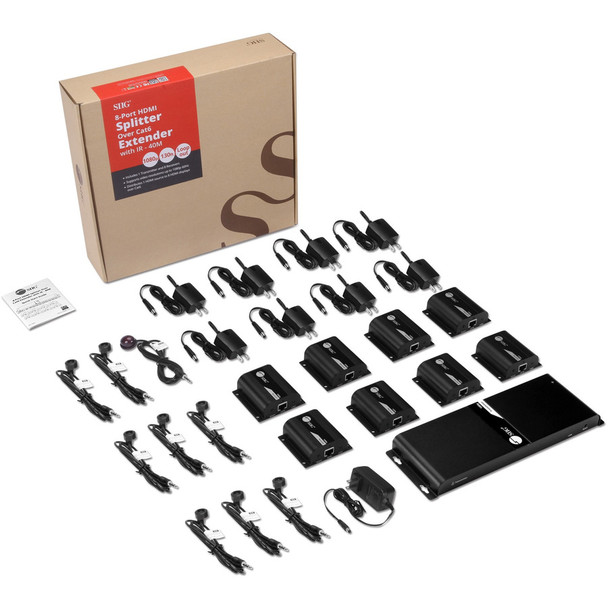

Package Contents:
- 1 x Transmitter
- 8 x Receivers
- 1 x Power Adapter 12V/2A
- 8 x Power Adapter 5V/1A
- 1 x IR Blaster Extension Cable
- 8 x IR Receiver Extension Cable
- Screw Kit
- User Reference Guide
Features
Package Contents:
Yes
China
- 1 x Transmitter
- 8 x Receivers
- 1 x Power Adapter 12V/2A
- 8 x Power Adapter 5V/1A
- 1 x IR Blaster Extension Cable
- 8 x IR Receiver Extension Cable
- Screw Kit
- User Reference Guide
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Transmitter Weight (Approximate) | 1.33 lb |
| Receiver Width | 2.64" |
| Receiver Height | 0.98" |
| Product Color | Black |
| Receiver Depth | 2.81" |
| Transmitter Depth | 10.87" |
| Receiver Weight (Approximate) | 3.04 oz |
| Color Family | Black |
| Transmitter Height | 0.91" |
| Transmitter Width | 3.82" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 1 |
| HDMI In | Yes |
| Number of HDMI Outputs | 9 |
| Number of Network (RJ-45) Ports | 16 |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Graphics Modes | Full HD |
| General Information | |
| Brand Name | SIIG |
| Manufacturer Website Address | http://www.siig.com |
| Marketing Information | Extends 1080p signals up to 130 feet to eight HDMI displays over a single Cat6 cable Extends high definition video signals up to 130ft (40m) over economical Cat6 cabling to up to eight HDMI displays Delivers crystal clear Full HD content up to 1080p@60Hz resolution IR control through Cat6 allows you to control the HDMI source device at the remote display location High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation Plug-n-Play installation, no software installation or hardware setup is required More from the Manufacturer |
| Product Type | Video Extender Transmitter/Receiver |
| Product Name | 8-Port HDMI Splitter Over Cat6 Extender with IR - 40M |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H24811-S1 |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 7 |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 131.23 ft |
| Number of Input Devices Supported | 1 |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 8 |
