siig
Siig 239553 Ac Ce-dp0l11-s1 1x2mdp 1.2 To Hdmi Mst Splitter Brown Box
(No reviews yet)
Write a Review
- SKU:
- 18213144
- MPN:
- 239553
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 10/17/2026 05:14:27 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $42.18 each 42.18 |
| Buy 3 | and pay only $39.70 each 39.7 |
| Buy 4 | and pay only $37.48 each 37.48 |
| Buy 5 - 9 | and pay only $36.73 each 36.73 |
| Buy 10 or above | and pay only $35.25 each 35.25 |
- Stock Update:
- 10/17/2026 05:14:27 AM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.

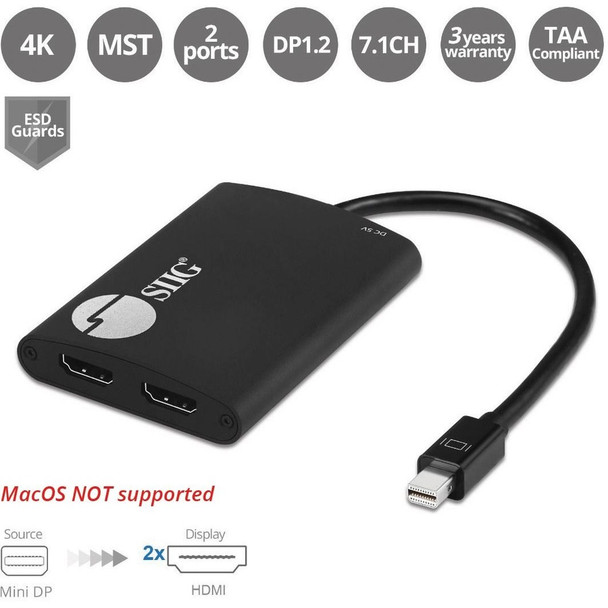

SIIG 1x2 Mini DisplayPort [mDP] 1.2 to 4K 30Hz HDMI Multi Monitor Splitter and Adapter - 2 Port MST Hub, (Not for Mac OS)- ?Boost your productivity by connecting two HDMI displays to single Mini DisplayPort 1.2 output with Multi-Stream Transport (MST) technology
- ?Provides multiple display modes for various applications such as Mirror mode same content on each display, Extended mode* with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display. Note: Panoramic Video Wall mode requires either a AMD Eyefinity or NVIDIA Surround technology graphics adapter
- ?Supports UHD video resolutions up to 3840x2160 @30Hz (4Kx2K) and 7.1-ch surround audio
- ?Compatible with Mini DisplayPort 1.2 graphics cards with AMD Eyefinity or NVIDIA Surround technology**
- ?Plug-n-play, hassle-free set up without complicated hardware or driver installation
- Product Dimensions: 0.2 x 0.3 x 0 inches
- Item Weight: 3.04 ounces
- Manufacturer: SIIG
- Chipset: STDP4320
- Resolution: Up to 3840x2160 @ 30Hz
- Compliant with DisplayPort 1.2a specifications
- Supports 7.1 Ch audio up to 192KHz sampling rate
- Display Modes: Mirror, Extended, Panoramic Video Wall
- Total Available Bandwidth 21.6Gbps (100%): 3840x2160 @30Hz (40%); 2560x1600 @60Hz (38%); 2560x1440 @60Hz (35%); 1920x1200 @60Hz (30%); 1920x1080 @60Hz (22%)
- Product:

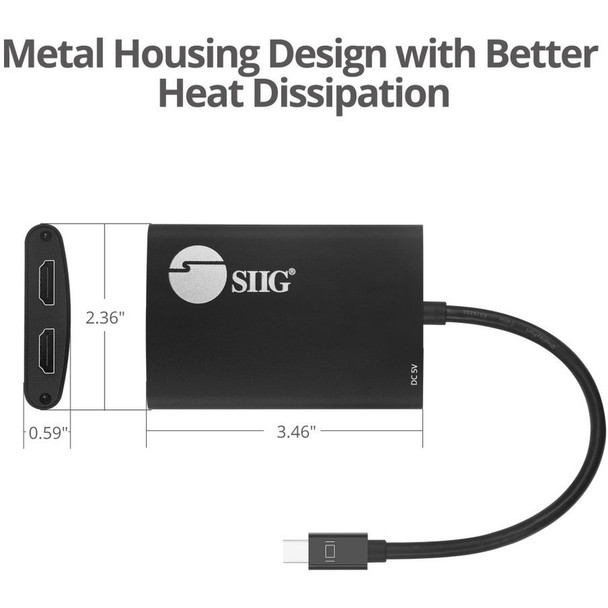

- Dimensions (housing): 3.5" (L) x 0.6" (H) x 2.4" (W)
- Mini DisplayPort cable (embedded): 12.6 inches
- Weight: 0.19 lbs
- Color: Black
- Housing: Aluminum
- Connector:
- 1x 20-pin, Mini DisplayPort, Male, Input
- 2x 19-pin, HDMI, Type A, Female, Output

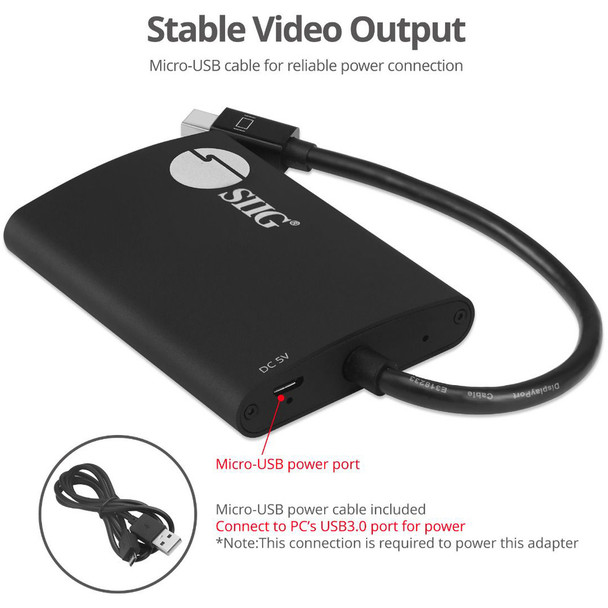

- 1x 5-pin, Micro USB, Female, USB power Input
- Micro USB power cable: 19 inches
- Certifications/Standards: FCC, CE, RoHS
- TAA compliant
- Warranty: 3 years limited
- Country of origin: Taiwan
Important Notes
Requirements
- Desktop or laptop computer with an available Mini DisplayPort 1.2 MST output
- AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode
- Requires GPU / graphics card to support at least 2 external displays to use both video ports at the same time with extended mode
Package Contents
- 1x2 Mini DP 1.2 to HDMI Multi Monitor Splitter - 2 Port MST Hub
- Micro-USB power cable
- User Reference Guide
Package Contents:
- 1x2 mDP 1.2 to HDMI MST Splitter
- Micro-USB Power Cable
- User Reference Guide
Features
Package Contents:
Yes
Restriction of Hazardous Substances (RoHS)
Taiwan
- 4K 1x2 Mini DisplayPort 1.2 to HDMI MST Splitter
- Micro-USB Power Cable
- User Reference Guide
TAA Compliant:
Yes
Application/Usage:
Monitor
PC
Notebook
Restaurant
Store
Conference Room
Medical Office
Workstation
Seminar
Lab
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Product Material | Aluminum |
| Weight (Approximate) | 3.04 oz |
| Length | 3.5" |
| Product Color | Black |
| Height | 0.6" |
| Color Family | Black |
| Width | 2.4" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| HDMI Out | Yes |
| DisplayPort | Yes |
| USB | Yes |
| Number of HDMI Outputs | 2 |
| Connector Gender |
|
| Number of DisplayPort Inputs | 1 |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| General Information | |
| Brand Name | SIIG |
| Manufacturer Website Address | http://www.siig.com |
| Marketing Information | Overview Allows you to connect 2 HDMI monitors to a single Mini DisplayPort 1.2 port with MST technology. TAA compliant Features Boost your productivity by connecting two HDMI displays to single Mini DisplayPort 1.2 output with Multi-Stream Transport (MST) technology - Mirror mode, Extended mode, and Panoramic Video Wall display mode What is Multi Stream Transport (MST)? Enables the source system to send multiple independent Video Signals over a single DisplayPort 1.2 or Mini DisplayPort 1.2 output. An MST Splitter allows the use of three different modes for multi-monitor displays, such as Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display Note: 1. Mirror mode using Windows Display Utility and NVIDIA Utility is limited to 2 displays 2. Panoramic Video Wall mode requires an AMD Eyefinity, NVIDIA Surround, or Intel Collage technology graphics adapter 3. AMD and NVIDIA video cards support up to 4 displays, while Intel supports up to 3 displays (AMD RX560 / RX570 / Radeon 7200 Series video cards only support up to 2 displays) 4. Surface products only support up to 3 displays total, including the Surface screen High Resolution Supports UHD video resolutions up to single 3840x2160 (4Kx2K) @60Hz display or Dual 3840x2160 (4Kx2K) @30Hz displays Mini DisplayPort (mDP) resolution can display the same maximum resolution as the original size DisplayPort (DP) High Performance Offers a true 21.6Gbps video bandwidth and supports 7.1ch surround sound up to 192KHz sampling rate Bandwidth Limitation Total Available Bandwidth 21.6Gbps for 3840x2160 @60Hz (100%) *. 3840x2160 @30Hz (40%), 2560x1600 @60Hz (38%), 2560x1440 @60Hz (35%), 1920x1200 @60Hz (30%), 1920x1080 @60Hz (22%) Note: Make sure the total combined resolution bandwidth among all displays do NOT exceed 100% Note: - When the resolution of Display A and Display B is set to 3840 x 2160 @60Hz, one of them will be disabled - If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays Connectivity Port Comes with one 20-pin Mini DisplayPort 1.2 input port, two 19-pin HDMI video output ports, one Micro USB for power input port (at least 5V/300mA) Maximum Compatibility Compatible with Mini DisplayPort 1.2 graphics cards with AMD Eyefinity, NVIDIA Surround, or Intel Collage technology Note: Requires GPU graphics cards to support at least 2 external displays to use both video ports at the same time with extended mode Supports Plug-n-Play, hassle-free set up without complicated hardware or driver installation ESD Protection An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device TAA Compliant Completely manufactured in a TAA designated country Aluminum Housing Design Premium aluminum housing provides efficient heat dissipation for reliable performance and long life |
| Product Type | HDMI Splitter |
| Product Name | 4K 1x2 Mini DisplayPort 1.2 to HDMI MST Splitter |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-DP0L11-S1 |
| Packaged Quantity | 1 |
