Siig 247006 Ac Ce-h26d11-s1 2port Hdmi 2.0 4k Hdr Splitter Switcher Color Box

This item is brand-new, factory sealed.

Features

oDistributes HDMI video and audio from two HDMI sources to up to 2 HDMI displays simultaneously while maintaining signal quality

oCompliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth

oSupports resolutions up to 4Kx2K@60Hz (YUV 4:4:4 8-bit), 3D, HDR, 36-bit Deep Color

oSupports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio

oSupports stereo audio extraction to 3.5mm audio output jack for 2ch stereo source devices only

oAuto video scaling feature, via HDCP detection of your connected display, detects and configures the video resolution automatically according to the capabilities of the connected monitors

oHigh quality materials and metal housing extends the stability and durability, allowing for long hours of operation

oBuilt-in EDID management and firmware update mechanism further expands compatibility

oEDID modes are controlled by the included remote control, push button control cycles between Auto EDID, Copy EDID, and Mixed EDID modes

oIndividual LED indicators for power and EDID mode allow for easy and quick operating status


Compatibility Notes:

- 4K@30Hz monitors will display in 1080p @60Hz resolution

- Does not support 4K/60Hz YUV 422 down scaling

- The 2 HDMI outputs mirror each other, extended displays are not supported Compliant with HDMI 2.0, HDCP 2.2/1.4 Video bandwidth:
18Gbps Resolution:
480p/720p/1080i/1080p/ HDR 4K2K at 60Hz (4:2:0 10bit) / 4K2K at 60Hz (YUV 4:4:4 8bit) Audio:
LPCM up to 7.1, Dolby Atmos and DTS-X (Copy EDID) Down scaling:
4K at 60Hz (YUV 4:4:4) to 1080p at 60Hz. Note: 4K at 60Hz (YUV 4:2:2) down scaling is not supported Display mode (output):
Mirror Product:
Color: Black
Housing: Metal
Connectors:

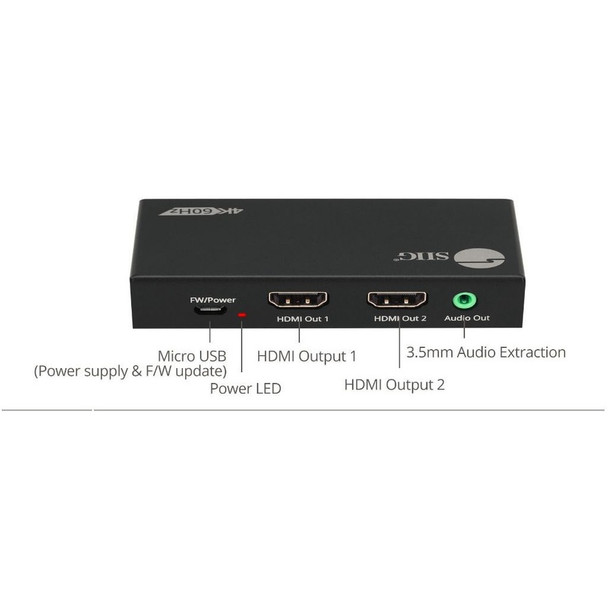

2x 19-Pin, HDMI, Type A, Female, Input
2x 19-pin, HDMI, Type A, Female, Output
1x Push button for Switch function and EDID Selection
1x 5-pin Micro USB, Female, Power and F/W update
1x 3.5mm jack, Stereo audio, Output EDID management (controlled by the included Remote Control):
Auto EDID: 4K at 60Hz
Copy EDID: The EDID of the monitor connected to HDMI Out 1 is used for the connected displays
Mixed EDID: The EDID of the monitor with the lowest resolution/audio capability is used for the connected displays Power Adapter:
Input: 100-240VAC, 50/60 Hz
Output: 5V/1A Environmental conditions:
Operating temperature: 23 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 5% to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS Package contents
2-Port HDMI 2.0 4K HDR Splitter / Switcher
Power adapter
USB A to Micro-B cable
Remote control
Mounting kit
Quick Start Guide Item Dimension (L"x W"x H")
4 x 1 x 3
Weight
1.00 LB
Warranty Information
2 Years

Package Contents:

• 2-Port HDMI 2.0 4K HDR Splitter / Switcher
• Power Adapter
• USB A to Micro-B cable
• Remote Control
• Mounting kit
• Quick Start Guide
