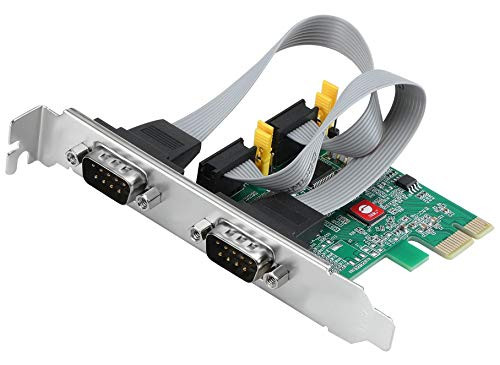

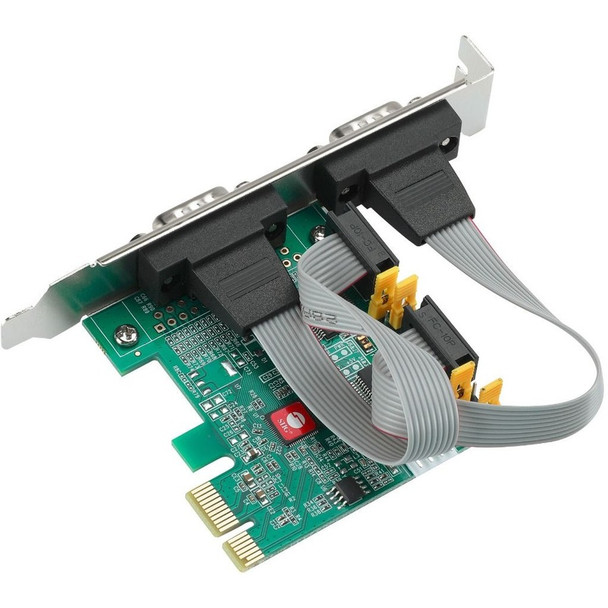

SIIG JJE20711S1 2 Port DP Cyber RS-232 2S PCIe Card

This item is brand-new, factory sealed.

Features

Adds two 9-pin RS-232 serial ports to PCIe enabled desktop computers

Two 16C650 UART serial ports support data transfer rate up to 250Kbps

Compliant with PCI Express 2.0 Gen 1

Single-lane (x1) PCI Express End-point Controller with PHY integrated

Full serial modem control with hardware and software flow control

Supports 5, 6, 7, 8 and 9-bit serial formats

Supports Even, Odd, None, Space and Mark parity

On chip 256-byte FIFO buffers in transmit and receive path for each serial port

Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers

Supports PCI Bus Power Management Interface Specification Revision 1.2

Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets

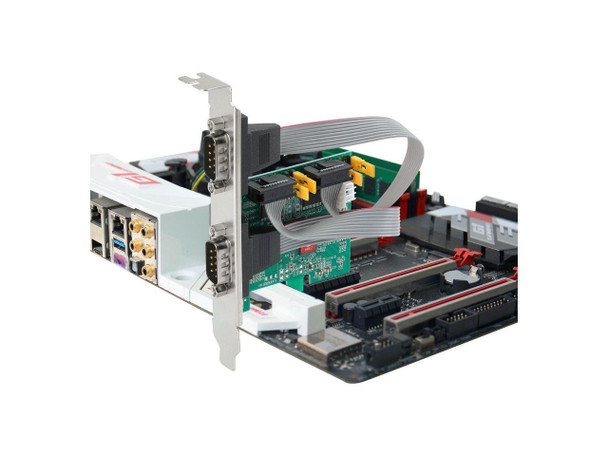

Installs into any PCI Express slot of any lane width

Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc Chipset:
ASIX AX99100Compliant with PCI Express Base Specification 2.0 Bus type:
One lane (x1) PCI Express Data transfer rate:
Up to 250Kbps Flow control:
Hardware and software Serial format:
5, 6, 7, 8 and 9-bitOn chip 256-byte transmit and receive FIFO buffers for each serial port Serial power output:
0V / 5V / 12V configured by jumpers Power consumption:
3W PCB form factor:
Full and low profile (full height and low profile brackets included) Color:
Green Connectors:
2x, 9-pin RS-232 Serial, Male
1x, 4-pin, Molex mini, Power connector Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5 to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS Country of origin:
ChinaItem Dimension (L inchxW inchxH inch)
5 x 1 x 3

Weight
1.00 lb

Warranty Information
2 Years

Package Contents:

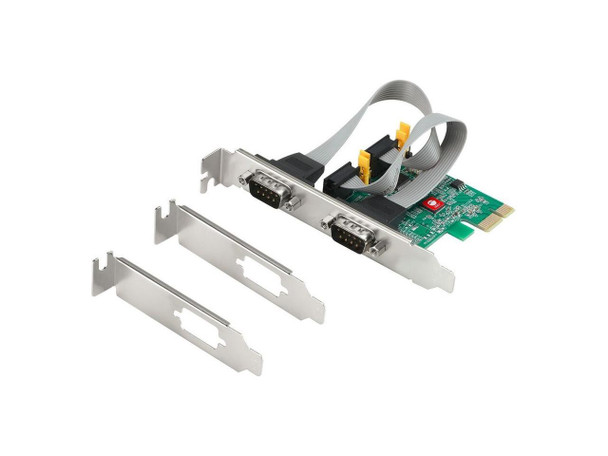

• DP Cyber 2S PCIe Card
• Full Height Bracket
• 2 x Low Profile Bracket
• 1 x Y-Split Power Cable
• 4 x Voltage Jumper
• Software CD
• User Manual
