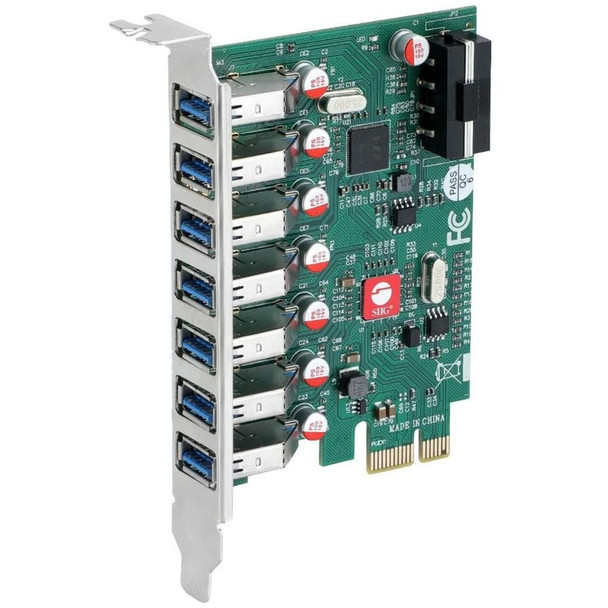

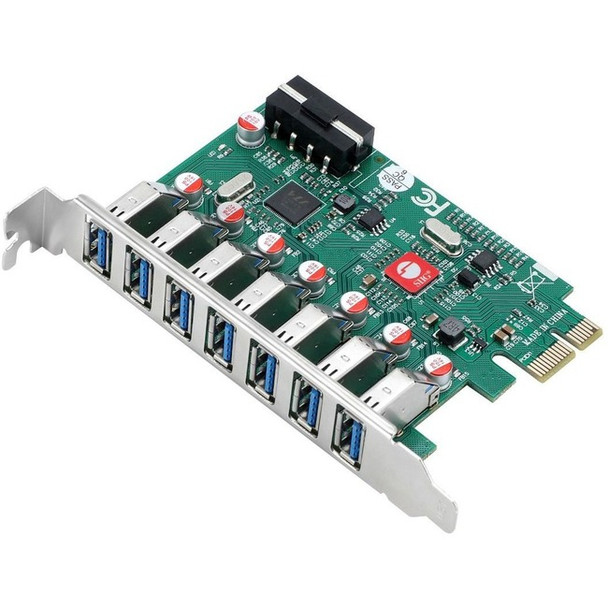

SIIG USB 3.0 7 Port PCIe Host Card - UASP Mode JUP70211S1
(No reviews yet)
Write a Review
- SKU:
- 18505320
- MPN:
- 258691
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 05/11/2026 08:54:32 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $64.51 each 64.51 |
| Buy 3 | and pay only $62.09 each 62.09 |
| Buy 4 - 7 | and pay only $60.84 each 60.84 |
| Buy 8 or above | and pay only $58.96 each 58.96 |
- Stock Update:
- 05/11/2026 08:54:32 AM PST
Description
This item is brand-new, factory sealed.
FeaturesQuickly expands 7 independent external USB 3.0 Type-A ports through a PCI Express slot for connecting a variety of USB devices
Supports SuperSpeed USB 3.0 data transfer rates up to 5Gbps providing fast and smooth data transmission
Compliant with PCI Express 2.0 specifications, using high-performance VIA 805 chipset
Supports UASP (USB Attached SCSI Protocol) and increases data transfer speed with external storage devices
Each port provides power output up to 900mA and Molex power connection is required
Compliant with Intel xHCI (eXtensible Host Controller Interface) revision 1.0 specifications
Over-Current protection function can further protect your connected devices
The multi-port feature allows connecting several existing peripheral devices simultaneously and avoids frequent plug in and plug out
Multiple Connectivity Ports

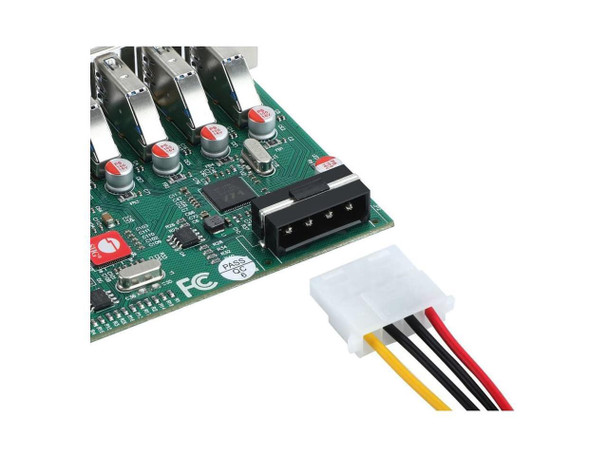

Comes with seven USB 3.0 Type-A ports and one molex port for power input Chipset:
VIA VL805+VL812 Bus connector:
one lane (x1) PCI Express PCIe card type:
full profile Version:
PCI Express 2.0 USB data transfer rate:
5Gbps / 480Mbps / 12Mbps / 1.5Mbps USB power output:
up to 900mA per each (Molex power connection is required) Power consumption:
3W (Max.) Connectors:
7x 9-pin USB 3.0 Type-A, Female Color:
Black Environmental conditions:
Operating temperature:
32 to 140 degrees F Storage temperature:
14 to 158 degrees F Relative humidity:
5% to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHSItem Dimension (L inchxW inchxH inch)
5 x 1 x 4
Weight
1.00 lb
Warranty Information
2 Years

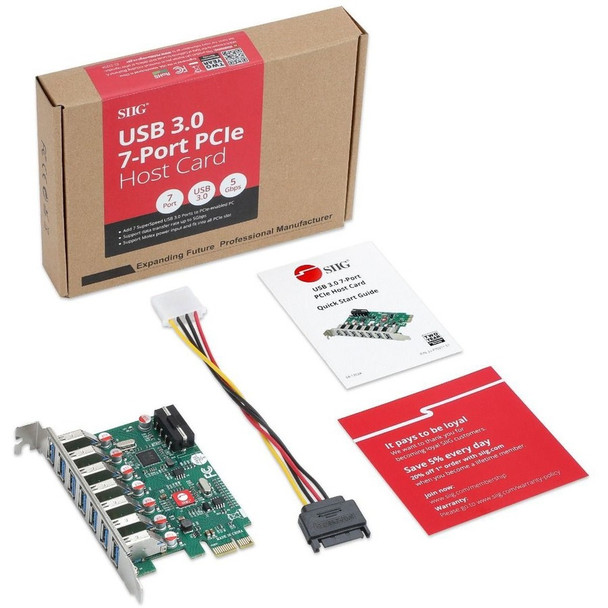

Package Contents:
- 1 x USB 3.0 7-Port PCIe Host Card
- 1 x Molex power cable
- 1 x User reference guide
Features
Package Contents:
Yes
PC
China
- 1 x USB 3.0 7-Port PCIe Host Card
- 1 x Molex power cable
- 1 x User reference guide
Environmentally Friendly:
Yes
Platform Supported:
PC
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Weight (Approximate) | 2.40 oz |
| Product Color | Black |
| Height | 0.8" |
| Width | 4.7" |
| Depth | 3.3" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Total Number of USB Ports | 7 |
| Number of USB 3.0 Ports | 7 |
| General Information | |
| Brand Name | SIIG |
| Manufacturer Website Address | http://www.siig.com |
| Marketing Information | Multiple Connectivity Ports Comes with seven USB 3.0 Type-A ports and one molex port for power input |
| Product Type | USB Adapter |
| Product Name | USB 3.0 7-Port PCIe Host Card |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | JU-P70211-S1 |
| Packaged Quantity | 1 |
| Media & Performance | |
| UASP Support | Yes |
| Technical Information | |
| Host Interface | PCI Express 2.0 |
