Siig 263683 Ac Ce-h23b11-s2 Hdmi Over Ip Extender With Ir - Transmitter Brown Box

This item is brand-new, factory sealed.

Receives high definition 1080p HDMI signals from a source device and extends the signal through economical CAT5e/6 cabling to an HDMI display device up to 120 meters using advanced HDbitT technology, use with HDMI Over IP Extender with IR - Receiver (part # CE-H23C11-S2) sold separately


Features

Extend and control HDMI signals with stereo audio up to 394ft (120m) to the remote display with HDbitT over IP technology and supports multi-casting connection for optimal (the best) application


What is HDbitT?

HDbitT is a new generation audio/video digital connection transmission protocol solution. Provides stable performance, long-distance transmission, and high-definition signal


Further Distance

This HDMI over IP Extender with IR-Kit designed for transmission/security, HDMI signals up to 394ft (120m) through HDbitT protocol and Gigabit Ethernet switch to a remote HDMI display


Highly Scalable

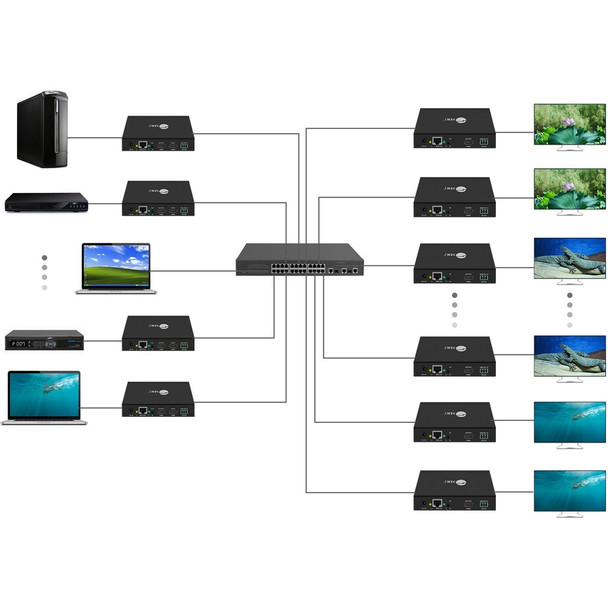

Works as a scalable TX/RX matrix over the dedicated IP network and allows up to 256 total units, limited to 100 units per transmitter, and extends/splits HDMI signals to multiple displays. The additional transmitter unit (part#- CE-H23B11-S1) and receiver unit (part#- CE-H23C11-S1) is sold separately

*Note: IGMP Gigabit Switch is recommended for best performance and reliability


Multicasting connection is transmitting data from multiple HDMI sources over an IGMP network switch to the intended receivers (RX) via Transmitters (TXs)


Full HD Resolution

Supports high-definition video resolution up to1080p (1920x1080) @60Hz, HDCP 1.4 to deliver a clear picture quality and local HDMI loop-out allows you to monitor the extended display from the source location


IR Extension

IR pass-through feature allows remote control of the HDMI source device and playback function at the remote display Video
HDMI
1x input, 1x loop-out Resolution
1080p (1920x1080) / 1080i / 720p / 480p at 60Hz, HDCP 1.4 Transport protocol
HDbitT protocol
Audio/video digital connection transmission protocol Audio
Stereo audio from HDMI, support 192Kbps bit rate IR pass-through
Allows remote control of the HDMI source device and playback function at the remote display
Full frequency: 20KHz to 60KHz RS-232 control
Bi-direction function and pass-through connection to control RS-232 enables devices in either direction Power
Power adapter
Input: 100-240V/50-60Hz, Output: DC 5V/2A UL listed
E335801/Level: VI Environmental conditions
Operating temperature
32 to 122 degrees F Storage temperature
14 to 144 degrees F Relative humidity
0% to 90% RH (non-condensing) Product Info

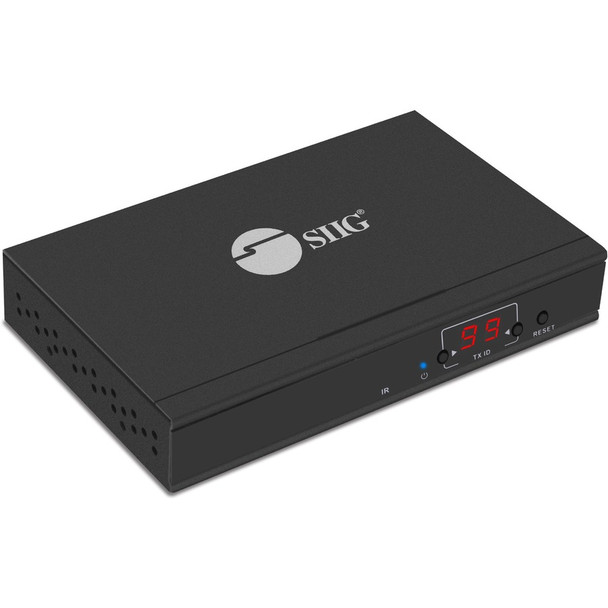

Transmitter unit (TX)
Color:
black Housing material:
metal Certifications/Standards
FCC, CE, RoHS, REACH Interface
Transmitter unit (TX):
1x 19-pin, HDMI, Female (input)
1x 19-pin, HDMI, loop-out, Female (output)
1x 3-pin, RS-232 terminal block, Female
1x 3.5mm infrared jack, IR emitter (output)
1x 8-pin, RJ45 (output)
2x Switch TX channel buttons, up/down
1x Reset button
1x DC power jack, 5V/2A Package contents
1x HDMI over IP Extender with IR- Transmitter
1x 3.5mm IR emitter extension cable
1x Remote control (for setting TX and RX channels)
1x 3-pin, RS-232 phoenix connector
2x DC power adapter (5V/2A)
1x Installation kit
1x User Reference GuideItem Dimension (L inchxW inchxH inch)
6 x 1 x 4

Weight
1.00 lb

Warranty Information
2 Years
