SIIG 4K120Hz HDMI Extender with IR - up to 132ft [40M] - EDID - Nearly zero latency (ce-h27l11-s1)

This item is brand-new, factory sealed.

4K120Hz HDMI Extender with IR - up to 132ft (40M) - EDID - Nearly zero latency



4K@120Hz HDMI Extender, Easily extends HDMI 4K@120Hz signals up to 132ft (40M) over a single Cat6/7 networking cable with IR, Nearly zero latency, HDR10, HDCP2.3, EDID, Bi-directional IR, Metal Housing


Features

Easily extends HDMI signals to 132ft (40m) over Cat6/7 cabling and IR Bi-directional remote-control HDMI device. Supports Ultra HD 4K@120Hz resolution for a smooth and immersive viewing experience


4K 120Hz Resolution

Supports Ultra HD video resolution up to 4K (3840x2160) @120Hz, HDR10, HDCP 2.3, YUV 4:4:4, 36-bit color depth for crystal-clear image quality


DSC Function

Display Stream Compression (DSC) is enabling increased display resolutions and frame rates over existing physical interfaces and make devices smaller and lighter. Compliant with DSC 1.2a

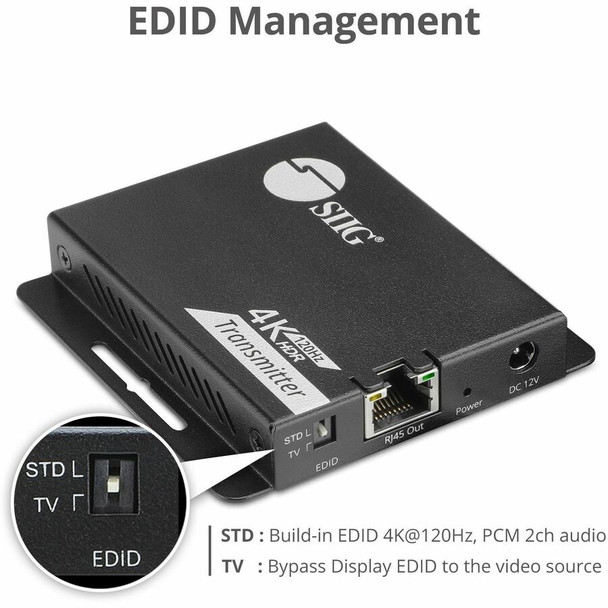

EDID Slide Switch

Provides STD and TV modes for optimal image quality and excellent compatibility with a wide range of devices


STD Mode

Video: up to 1080p@120Hz / 4K@120Hz

Audio: 2-ch

TV Mode

Video: learning TV/Monitor EDID information

Audio: up to LPCM 7.1-ch, DTS, DTS HD Master, Dolby Digital, Dolby TrueHD Video
HDMI
1x input, 1x output Resolution
4096 x 2160 at 60Hz / 50Hz / 30Hz / 25Hz / 24Hz
3840 x 2160 at 120Hz / 60Hz / 50Hz / 30Hz / 25Hz / 24Hz
1920 x 1080 at 120Hz / 60Hz / 50Hz / 30Hz / 25Hz / 24Hz
1280 x 720p at 60Hz / 50Hz
1024 x 576p at 50Hz
640 x 480p at 60Hz HDCP
2.3/2.2/1.4 Color depp
36-bit (12-bit per channel) Transfer rate
up to 32Gbps (8Gbps per data channel) Transmission distance
up to 132ft (40m) via Cat6/7 cable TMDS character rate
up to 800MHz Audio
HDMI
Dolby 5.1/7.1 and Atmos (need to switch to TV EDID mode), DTS 5.1/7.1, and PCM 2/5.1/7.1 IR
Built Bi-directional IR remote control, allows you to control the HDMI source device at the remote
Full frequency
20KHz to 60KHz EDID Switch
Select STD mode or pass through to TV EDID mode Power
Power Adapter
Input: AC 100-240V/50-60Hz, Output: DC 12V/1A
UL listed
E470034/Level: VI Product Info
Transmitter unit (TX)
Color:
Black
Housing material:
Metal
Receiver unit (RX)
Color:
Black
Housing material:
Metal Environmental conditions
Operating temperature
32 to 122 degrees F
Storage temperature
14 to 140 degrees F
Relative humidity:
5% to 90% RH (non-condensing) Certifications/Standards
FCC, CE, RoHS, REACH Interface

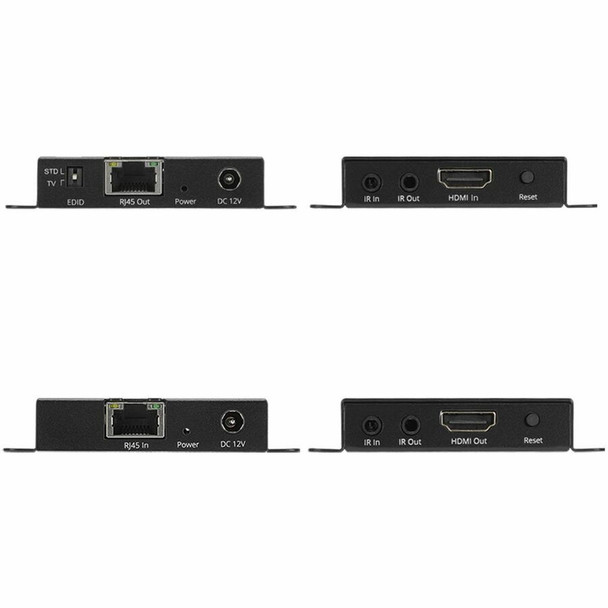

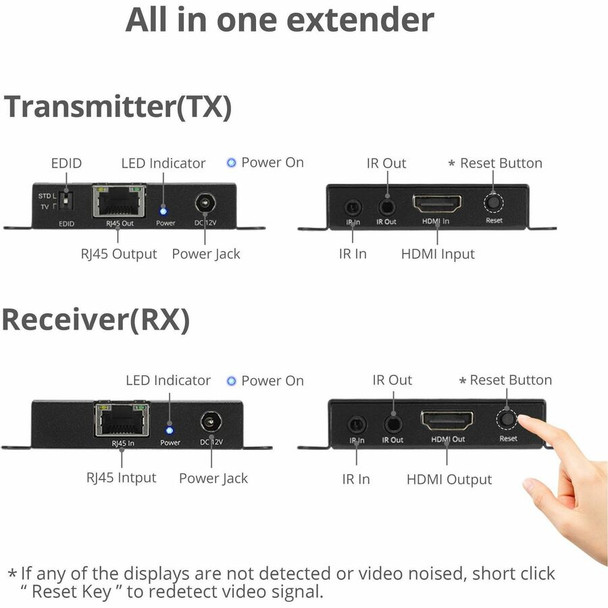

Transmitter (TX)
1x 19-pin, HDMI, Female (input)
1x 3.5mm infrared jack, IR emitter (output)
1x 3.5mm infrared jack, IR receiver (input)
1x 8-pin, RJ45 (output)
1x 2-pin, DIP switch for EDID switch, STD/TV
1x Reset button
1x DC power jack, 12V/1A
Receiver (RX)
1x 19-pin, HDMI, Female (output)
1x 3.5mm infrared jack, IR emitter (input)
1x 3.5mm infrared jack, IR receiver (output)
1x 8-pin, RJ45 (input)
1x Reset button
1x DC power jack, 12V/1A Package contents
1x 4K120Hz HDMI Extender with IR
1x 3.5mm IR emitter extension cable
1x 3.5mm IR receiver extension cable
2x DC power adapter, 12V/1A
1x User reference guideItem Dimension (L inchxW inchxH inch)
9 x 2 x 6

Weight
1.25 lb

Warranty Information
2 years limited
