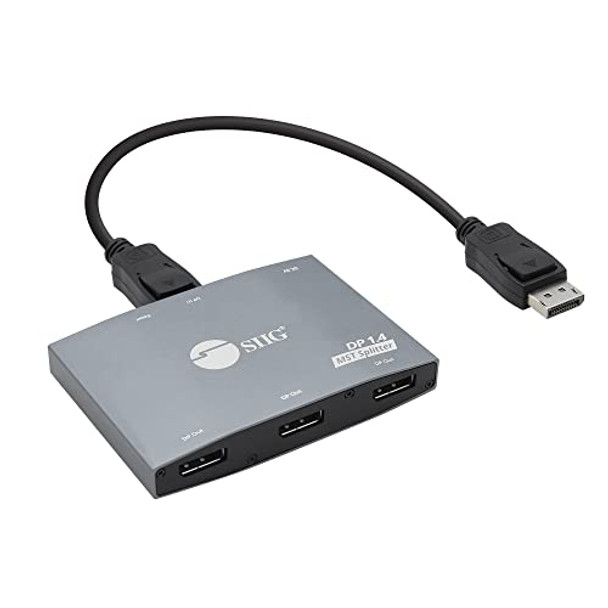

SIIG CEDP0S11S1 DisplayPort 1.4 to DisplayPort MST Splitter

This item is brand-new, factory sealed.

Features

Splits a single DisplayPort 1.4 output source to three DisplayPort monitors with Mirror, Extended and Panoramic video wall display modes


High Performance

Offers a true 32.4Gbps (Max.) video bandwidth and supports 7.1-ch surround sound up to 192KHz sampling rate (can be used to transmit audio and video simultaneously)

* Note:
If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays


Video Resolution

Supports HDCP 2.2 and Ultra HD video resolution up to a single 8K (7680x4320) @30Hz with HDR display or dual 4K (3840x2160) @60Hz with HDR displays or Triple 4K (3840x2160) @30Hz

* Note:
Two of 4K@60Hz displays occupied 96% bandwidth, so there is not enough bandwidth for third display


Display Modes

Supports various supplication such as Mirror, Extended, and Panoramic Video Wall modes. Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display

* Note:

1. Mirror mode using Windows Display Utility and NVIDIA Utility is limited to 2 displays

2. Panoramic Video Wall mode requires an AMD Eyefinity, or NVIDIA Surround or Intel Collage technology graphics adapter

3. AMD and NVIDIA graphics cards support up to 4 displays, while Intel supports up to 3 displays (AMD RX560 / RX570 / Radeon 7200 Series graphics cards only support up to 2 displays)

4. NVIDIA graphics cards are recommended as AMD DP graphics cards may cause bandwidth limitations

5. MacOS operating system does not support MST function and will only mirror the displays (SST) Hardware
Chipset
VMM5320 Software
OS Compatibility
Windows 11 or new Video
DisplayPort
x3 Resolution
one screen: up to 8K (7680x4320) at 30Hz with DSC (Display Stream Compression)
two screens: up to 4K (3840x2160) at 60Hz with DSC
three screens: up to 4K (3840x2160) at 30Hz with DSC Bandwidth
32.4Gbps Display modes
3 different display modes: Mirror mode, Extended mode, and Panoramic Video Wall mode
Note: AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode Audio
7.1 channel surround sound, up to 192KHz sampling rate Environmental conditions
Operating temperature
32 to 104 degrees F Storage temperature
-4 to 140 degrees F Relative humidity:
20% to 90% RH (non-condensing) Product Info
DisplayPort cable (embedded)
11.81 inches (0.98ft) Color
Silver grey/black Housing material
Aluminum Certifications/Standards
FCC, CE, RoHS 2.0, REACH, TAA compliant Interface
Input
1x 20-pin, DisplayPort 1.4. Female (Host)
1x 5-pin, Micro USB, Power only (at least 5V/500mA), Female
1x Reset button
Output
3x 20-pin, DisplayPort 1.4, Female System Requirements
Desktop or laptop with an available DisplayPort 1.4 port
Windows 11 / 10 / 8.x / 7
Note: macOS doesnt support MST function and only Mirror display (SST) Package contents
1x 1x3 DisplayPort 1.4 to DisplayPort MST Splitter
1x Micro-USB power cable, 1.64ft (50cm)
1x User reference guideItem Dimension (L inchxW inchxH inch)
10 x 2 x 4

Weight
1.00 lb
