SIIG HDMI Over Cat6 Extender - 60m - 1080p - PoC - Metal Housing (291338)
(No reviews yet)
Write a Review
- SKU:
- 20949009
- MPN:
- 291338
- Availability:
- Usually ships the same or next business day. In stock at our CA, PA, SC warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 05/08/2026 03:37:29 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $45.79 each 45.79 |
| Buy 3 | and pay only $43.32 each 43.32 |
| Buy 4 - 9 | and pay only $40.98 each 40.98 |
| Buy 10 - 15 | and pay only $38.74 each 38.74 |
| Buy 16 or above | and pay only $37.24 each 37.24 |
- Stock Update:
- 05/08/2026 03:37:29 AM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.
OverviewExtends HDMI audio/video signals up to 197ft over Cat6 cable. Supports 720p/1080i/1080p at 60Hz resolutions, PoC, HDCP1.4, 3D, Mountable Metal Housing Design
Features
Extending HDMI Signals up to 197ft
Easily extend HDMI audio/video signals over a single Cat6 network cable, while maintaining signal strength and superior quality and extends transmission distance up to 197ft (60m)

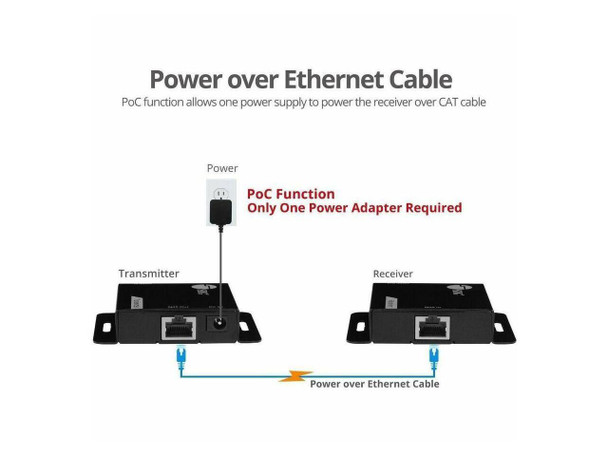

Power over Cable (PoC)
Utilizes Power over Cable technology, allowing a single power supply connected to the transmitter (TX) to power the receiver (RX) over the Cat 6/7 cable, simplifies installation and reduces the need for additional power outlets or adapters at the receiver end, saving wiring space and cost
High Performance
Offers a true 10.2Gbps video bandwidth and supports LPCM 2.0 audio, delivering high-quality sound and video
Full HD Video Resolution
Supports video resolution up to 1080p (1920x1080) @60Hz YUV 4:4:4 8-bit, HDCP 1.4 to deliver a clear picture quality, supports 3D video formats
Multiple Connectivity Ports
Comes with one HDMI video input port, one HDMI video output port, two RJ45 network ports, one DC power jack (5V/1A)
Mountable Metal Housing Design
Features a mountable metal housing design for durability and ease of installation. The robust construction ensures long-term reliability and performance, even in demanding environmentsSpecifications
HDMI 1.3 and HDCP 1.4 compatible
Supports resolution: 480p/720p/1080i/1080p, 3D
Transmission distance up to 197ft (60m)
HDMI Cable distance:
up to 5M (Input and output)
Power consumption:
Transmitter < 2W, Receiver < 2W
No software installation required
Housing:
Metal
Color:
BlackProducts:
Transmitting unit (TX):
Dimensions: 3.12(W) x 0.65"(H) x 2.68"(D)
Weight: 0.26 lbs
Connector :
1x 19-pin HDMI, Type A, Female, Input
1x 8-pin, RJ45, Output
1x Power Jack
Receiving unit (RX):
Dimensions: 3.12(W) x 0.65"(H) x 2.68"(D)
Weight: 0.26 lbs
Connector :
1x 8-Pin, RJ45, Input
1x 19-pin, HDMI, Type A, Female, outputPower adapter:
Input: 100-240VAC
Output: 5V DC, 1A, UL listed: E305498, VIEnvironmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)Certifications/Standards:
FCC, CE, RoHSCountry of origin:
ChinaItem Dimension (L"xW"xH")
8 x 4 x 5
Weight
2 lbs
Warranty Information
NA
Features
Package Contents:
China
- Full HD HDMI Extender with IR
- 1 x 3.5mm IR Emitter Extension Cable
- 1 x 3.5mm IR Receiver Extension Cable
- 2 x DC Power Adapter, 5V/1A
- 1 x User Reference Guide
Application/Usage:
Home Theater
Lecture Hall
Digital Signage System
Educational Facilities
Surveillance System
Library
Control Center
Shopping Center
Office
Restaurant
Conference Room
Hospital
Showroom
Church
Display
Computer
Monitor
Desktop PC
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Transmitter Weight (Approximate) | 3.04 oz |
| Receiver Width | 2.60" |
| Receiver Height | 0.97" |
| Product Color | Black |
| Receiver Depth | 2.80" |
| Transmitter Depth | 2.80" |
| Receiver Weight (Approximate) | 2.88 oz |
| Color Family | Black |
| Transmitter Height | 0.97" |
| Transmitter Width | 2.60" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 1 |
| Remote (IR) Input | 1 |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Remote (IR) Output | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Supported Video Modes |
|
| General Information | |
| Brand Name | SIIG |
| Manufacturer Website Address | http://www.siig.com |
| Marketing Information | Easily extend HDMI audio/video signals over a cost effective Cat5e/6 network cable, while maintaining signal strength and superior quality and supports up to 1080p resolution and extends transmission distance up to 164ft (50m) with nearly zero latency Extend Distance This Full HD HDMI Extender with IR designed to extends/splits HDMI signals up to 164ft (50m) through RJ45 network to a remote HDMI display for reliability transmission IR Extension Built-in on way IR signal extension modules allows remote controlling the HDMI source device at the receiver and playback at the distant display. Supports an IR signal in the 20-60KHz carrier frequency Note: Remote controller should be used within 15 feet of transmitter to send signal to the receiver. The best result for the sensor is to point directly High Performance Offers a true 10.2Gbps video bandwidth and supports pure unaltered uncompressed 7.1-ch. surround sound from HDMI Full HD Video Resolution Supports video resolution up to 1080p (1920x1080) @60Hz YUV 4:4:4 8-bit, HDCP 1.2 to deliver a clear picture quality and allows EDID auto-learning for remote and local displays Multiple Connectivity Ports Comes with one HDMI video input port, one HDMI video output port, two RJ45 network ports, one 3.5mm IR emitter port, one 3.5mm IR receiver port, two reset buttons, two DC power jacks (5V/1A) More from the Manufacturer |
| Product Type | Video Extender Transmitter/Receiver |
| Product Name | Full HD HDMI Extender with IR |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H3EX01-S1 |
| Media & Performance | |
| Twisted Pair Cable Standard |
|
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 164 ft |
| Connectivity Technology | Wired |
