SIIG HDMI Over IP Extender with IR - 492ft [150m] - Receiver - 1080p- IR - One-to-Many (ce-h3ip11-s1)

This item is brand-new, factory sealed.

HDMI Over IP Extender with IR - 492ft (150m) - Receiver only, 1080p @ 60Hz, IR Control, Audio Extraction, One-to-Many Support

HDMI Over IP Extender with IR 492ft (150m) - RX, Full HD 1080p Transmission with IR Control, Audio Extraction, and One-to-Many Support; A high-performance HDMI Over IP Extender designed for long-distance signal transmission up to 492ft (150m) via standard Cat5e/6 network cables. Ideal for digital signage, education, broadcasting, and commercial AV systems, the additional receiver for Part# CE-H3IP01-S1 kit

Features

Long-Distance HDMI Transmission Up to 492ft (150m)

Extend 1080p HDMI video and audio signals up to 492 feet over standard Cat5e/6 network cables with exceptional clarity and stability

Stunning Full HD 1080p @ 60Hz

Delivers crisp, vivid visuals with smooth frame rates perfect for presentations, signage, and multimedia playback

Scalable, Flexible One-to-One or One-to-Many Setups

Easily expand your video distribution using standard unmanaged Gigabit network switches to create One-to-Many Configuration. One transmitter can connect to up to 253 receivers (the additional receiver for Part# CE-H3IP01-S1 kit), ensuring a flexible and future-ready solution

Note: This additional RX (part# CE-H3IP11-S1) must be used with the Kit (part# CE-H3IP01-S1)

Stereo Audio + Audio Extraction Support

Supports stereo audio through HDMI and features 3.5mm output jacks on both transmitter and receiver for PCM 2CH audio extraction

IR Remote Control Extension (2060KHz)

Easily control your source device from the receiver location with integrated IR pass-through support

Scalable Network Protocol (TCP/IP)

Designed for flexible IP-based installations. Connect one transmitter to up to 253 receivers across your networkCompliant with HDCP 1.2 specificationVideo resolution:
480p,576p,720p,1080i, 1080p 24/50/60HzBandwidth:
4.95Gbps / 165MHz (4.95Gbps all channels)Transmission distance:
Up to 150m for 1080p 60HzAudio Format:
PCM 2chProtocol:
TCP/IP network standardProduct Color:

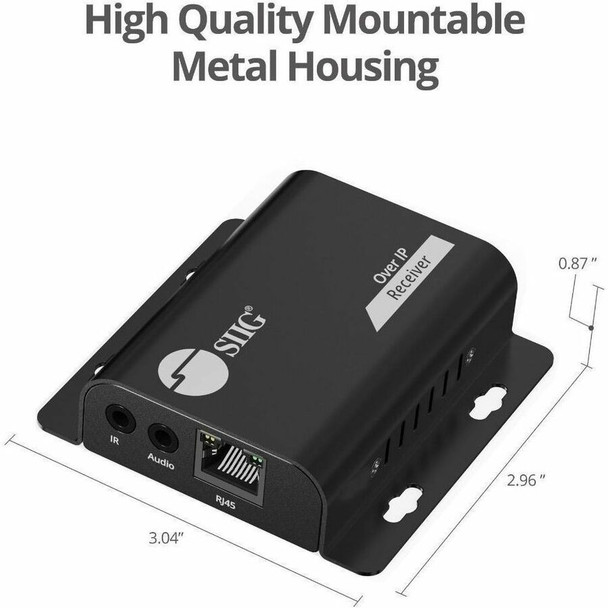

BlackHousing Material:
MetalConnectors:
1x 19-pin HDMI, Type A, Female, Output
1x 8-pin RJ45, Input
1x 3.5mm audio Output
1x 3.5mm IR-RX Input
1x Power JackPower adapter:
Input: 100-240V AC, 50/60 Hz
Output: DC 5V/1A
UL listed: E336751 / Level: VIEnvironmental conditions:
Operation Temperature: 32 to 122 degrees F
Storage Temperature: 14 to 158 degrees F
Relative humidity: 10 to 80% RH (non-condensing)Certifications/Standards:
FCC, CE, RoHSPackage contents
HDMI Over IP Extender with IR - 150m - Receiver
1x Power adapter 5V/1A
1x IR receiver cable
User ManualItem Dimension (L inchxW inchxH inch)
5 x 3 x 7

Weight
1.00lb

Warranty Information
1 years limited
