SilverStone SST-AX1300MCPT-A 1300W Power Supply (sst-ha1300r-pm)

This item is brand-new, factory sealed.

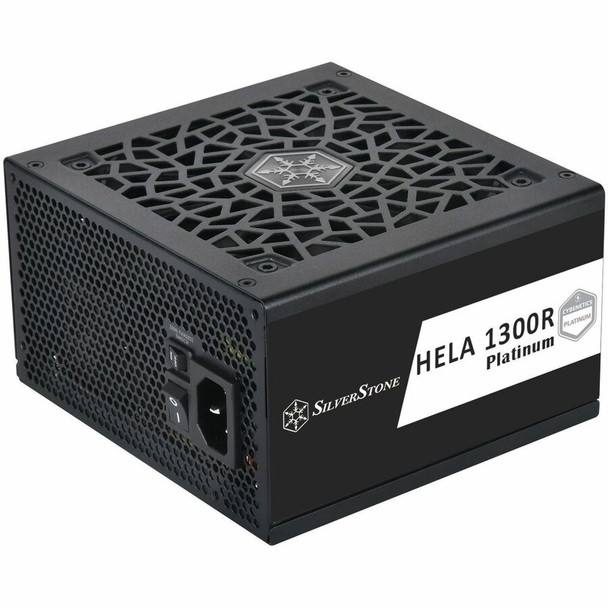

HELA 1300R Platinum

Cybenetics Platinum 1300W ATX 3.0/3.1 & PCIe 5.0 Fully Modular ATX Power Supply


Supports 12VHPWR PCIe connector with ATX 3.0/3.1 and PCIe Gen 5 standard

High efficiency with Cybenetics Platinum certification

Super flexible black flat cables

100% modular cables

24/7 continuous power output with 50? operating temperature

All Japanese electrolytic capacitors

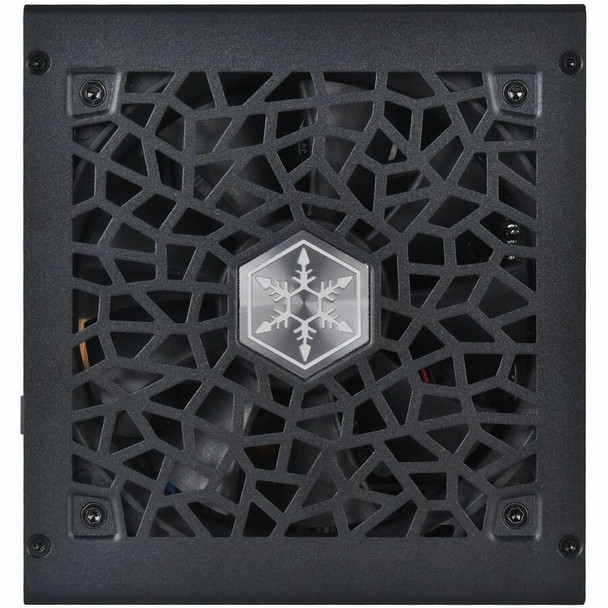

Silent running 120mm FDB fan with semi-fanless and delayed shut-off function

180 angled SATA connectors designed for stack mounted hard drives Product No.

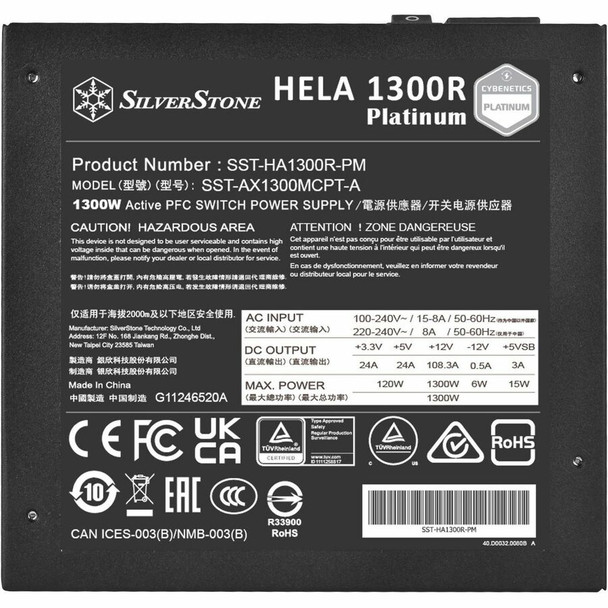

SST-HA1300R-PM Model (safety certification)
SST-AX1300MCPT-A Color
Black (lead-free paint) Max. DC Output
1300W Power density
720W per liter Load Range
Output / Max.(Amps) / Min.(Amps) / Range (%) / Line Reg.(%) / Ripple(mVp-p)
+3.3V / 24A / 0A / +/-5% / +/-1% / 40mV
+5V / 24A / 0A / +/-5% / +/-1% / 40mV
+12V / 108.3A / 0A / +5/-7% / +/-1% / 80mV
+5VSB / 3.0A / 0A / +/-5% / +/-1% / 40mV
-12V / 0.5A / 0A / +/-5% / +/-1% / 80mV Combined +3.3V and +5V
120W Combined +12V
1300W Input Voltage
90 to 264 Vrms Input Frequency Range
47Hz to 63Hz PFC
Active PFC (PF>0.9 at full load) Efficiency
is more than or equal to 89% and <91% overall efficiency MTBF
100,000 hours Operating temperature
0^oC to 50^oC Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Under Voltage Protection
No load operation Connectors
1 x 24 / 20-Pin motherboard connector
2 x 4-Pin + 4-Pin ATX 12V connector
1 x 12+4-Pin 12VHPWR connector
8 x 8 / 6-Pin PCIe connectors
8 x SATA connectors
6 x 4-Pin Peripheral connectors
2 x 4-Pin Floppy connectors Cooling System
Silent 120mm FDB fan Noise Level
0 dBA minimum Certification
Cybenetics Platinum Form factor
ATX (PS2)
