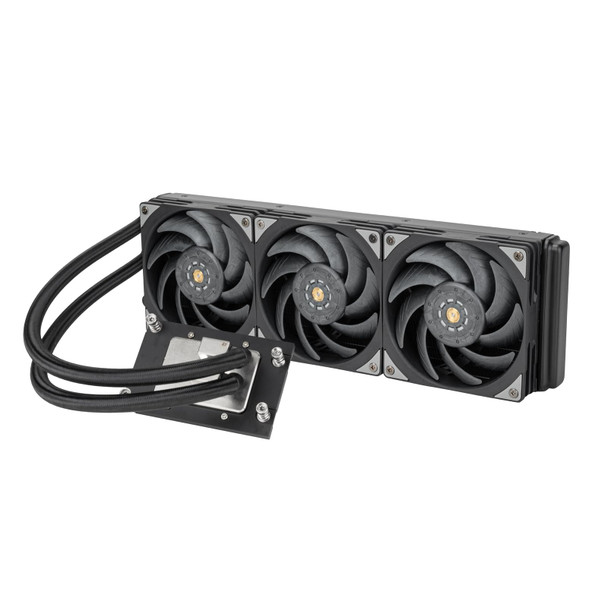

Silverstone Tec 309288 Silverstone Fan Xe360-tr5-v2 Triple 120mm Aio Liquid Cooler F Amd Str5 Sp6 Rtl

This item is brand-new, factory sealed.

XE360-TR5-V2
High Performance Triple 120mm All-In-One Liquid Cooler for AMD Socket sTR5/SP6
Nickel plated copper water block with large-sized micro-channel copper base plate
Water pump integrated within the radiator
Includes 3 FHL120 120mm high-performance industrial fans with Liquid Crystal Polymer (LCP) blades
Aluminum alloy cavity pump strengthens the overall structure
Three phase, six pole motor design
Optimum cooling guaranteed
The water block is constructed with nickel-plated copper, incorporated with a copper base active cooling surface to ensure full coverage of process cores on Zen 4-based Ryzen Threadripper 9000 series CPUs.
Unique pump placement
A three phase, six pole motor integrated within the radiator to reduce the pumps overall output noise level.
High-Performance FHL120 Industrial Fans
Equipped with three SilverStone FHL120 120mm industrial-grade radiator fans featuring Liquid Crystal Polymer (LCP) blades, delivering stable high-speed performance, strong airflow, and long-term durability under continuous operation.
Tailored performance on demand
Wide 800 - 3,000 speed range via PWM control function.Model No.
XE360-TR5-V2Application
AMD Socket sTR5/SP6Water block
Dimension
79mm (W) x 25mm (H) x 119mm (D)
3.11" (W) x 0.98" (H) x 4.69" (D)
Material
Copper base with aluminum bodyPump
Motor speed
4,000 +/-10% RPM
Rated Voltage
12V
Rated Current
0.38A
Connectors
3 pinRadiator
Dimension
120mm (W) x 28mm (H) x 394mm (D)
4.72" (W) x 1.1" (H) x 15.5" (D)
Material
AluminumTube
Length
460mm
Material
RubberFan
Dimension
120mm (W) x 26mm (H) x 120mm (D)
Speed
800 - 3,000 RPM
Noise level
39.6 dBA
Rated Voltage
12V
Max airflow
95.1 CFM
Max air pressure
5.2mmH2O
Connector
4 pin PWMRemark
Please confirm that the header that supplies power to the PUMP has a stable 12V voltage. Its recommended to disable the PWM/DC mode of this header from the motherboard BIOS, or to set it to full speedItem Dimension (L"xW"xH")
18 x 11 x 6

Weight
9 lbs

Warranty Information
3-year warranty
