Sonicwall

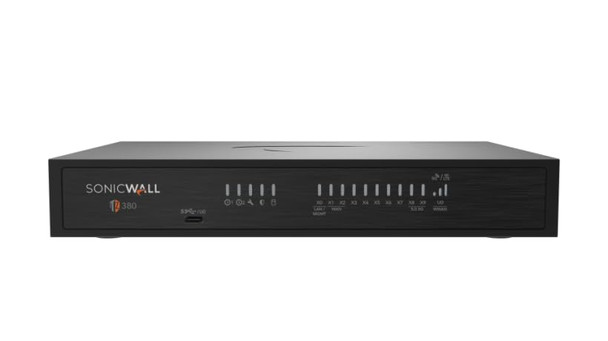

SonicWall TZ380 Network Security/Firewall Appliance (03-ssc-1831)
(No reviews yet)
Write a Review
- SKU:
- 21229602
- MPN:
- 03-ssc-1831
- Availability:
- Usually ships the same or next business day. In stock at our CA, SC, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 10/24/2026 03:20:04 AM PST
- Stock Update:
- 10/24/2026 03:20:04 AM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.
SONICWALL TZ380 Appliance Only Sonicwall 03-SSC-1831 Tz380 Appliance Only Sonicwall 03-SSC-1831 Tz380 Appliance Only Sonicwall 03-SSC-1831 Tz380 Appliance OnlySonicwall 03-SSC-1831 Tz380 Appliance Only
Features
Certifications & Standards:
- FCC Class B
- ICES Class B
- CE (EMC, LVD)
- UL
- cUL
- Mexico DGN Notice by UL
- ANATEL
- SCIP
- RCM
- MIC Terminal
- VCCI Class B
- KCC/MSIP
- BSMI
- MTCTE/TEC
- Operating system - SonicOS 8

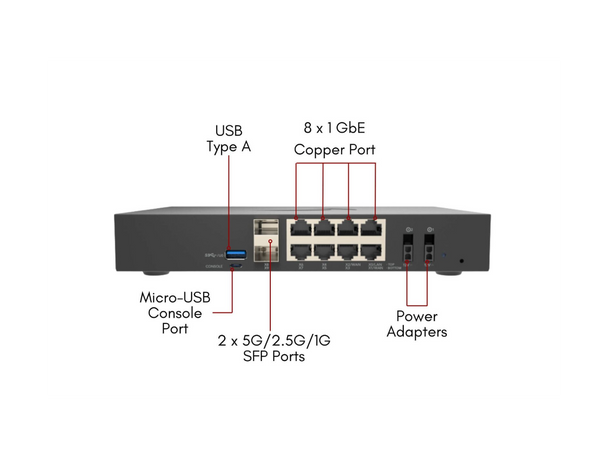

- Interfaces - 8x1GbE, 2x 5/2.5/1G SFP+, 1 USB (type-C), 1 console (Micro-USB)
- Storage /(expansion) - (Optional: Up to 512 GB)
- Centralized Management - Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs
- Logical VLAN and tunnel interfaces (maximum) - 128
- SAML Single Sign-On (SSO) Users - 1,000
- Access points supported (maximum) - 16
- Firewall inspection throughput - 3.5 Gbps
- Threat prevention throughput - 1.5 Gbps
- Application inspection throughput - 2 Gbps
- IPS throughput - 2 Gbps
- Anti-malware inspection throughput - 2 Gbps
- TLS/SSL inspection and decryption throughput - 600 Mbps
- IPSEC VPN throughput - 1.6 Gbps
- Connections per second - 15,000
- Maximum connections (SPI) - 1,100,000
- Maximum connections (DPI) - 250,000
- Maximum connections (TLS) - 40,000
- Site-to-site VPN tunnels - 200
- IPSec VPN clients (maximum) - 5 (200)
- SSL-VPN licenses (maximum) - 2 (100)
- Encryption/authentication - AES (128, 192, 256-bit)/MD5, SHA-256, SHA-384, Suite B Cryptography
- Key exchange: Diffie Hellman Groups 1, 2, 5, 14v
- Route-based: VPN RIP, OSPF, BGP
- Certificate support - Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP
- VPN features - Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
- Global VPN client platforms supported - Microsoft® Windows 7, Windows 8, Windows 8.1 and Windows 10
- NetExtender - Microsoft® Windows 10, Windows 10/11 and Linux
- Mobile Connect - Apple® iOS, Mac OS X, Google® Android™ Chrome OS, Windows
- IP address assignment - Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
- NAT modes - 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
- Routing protocols - BGP, OSPF, RIPv1/v2, static routes, policy-based routing
- QoS - Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
- Authentication - LDAP (multiple domains), XAUTH/RADIUS,TACACS+, SAML SSO1, Radius accounting NTLM, internal user
- database, 2FA, Terminal Services, Citrix, Common Access Card (CAC)
- VoIP - Full H3230v1.5 SIP
- Standards - TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
- Certifications - IPv6
- High availability - Active/Standby with stateful synchronization
- Power supply (W) - 60
- Input power - 100-240 VAC, 50-60Hz
- Total heat dissipation (BTU) - 46.95
- WEEE weight (kg) - 1.18
- MTBF @25oC in years - 46.4
- Environment (Operating/Storage): 0°C to +40°C / -40°C to +70°C
- Humidity - 5-95% non-condensing
Additional Information:
Application/Usage:
Enterprise
Business
Network
Security
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Frequency |
|
| Power Consumption | 13.77 W |
| Physical Characteristics | |
| Form Factor | Desktop |
| Weight (Approximate) | 1.81 lb |
| Height | 1.4" |
| Width | 7.5" |
| Depth | 5.1" |
| Interfaces/Ports | |
| Total Number of Ports | 8 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 8 |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| General Information | |
| Brand Name | SonicWall |
| Manufacturer Website Address | http://www.sonicwall.com |
| Marketing Information | Designed for small organizations and lean branches, the TZ 380 Series delivers industry-validated security effectiveness with best-in-class price-performance. More from the Manufacturer |
| Product Type | Network Security/Firewall Appliance |
| Product Name | TZ380 Network Security/Firewall Appliance |
| Manufacturer | SonicWall Inc. |
| Manufacturer Part Number | 03-SSC-1831 |
| Product Model | TZ380 |
| Product Series | TZ |
| Media & Performance | |
| VPN Throughput | 204.80 MB/s |
| IPS Throughput | 256 MB/s |
| Network & Communication | |
| Ethernet Technology |
|
| Technical Information | |
| AI-powered | Yes |
| Functionality | Intrusion Prevention |
| New Connections Per Second | 15000 |
| Number of VPN Supported | 200 |
| Data Link Protocols |
|
| Firewall Protection Supported |
|
| Firewall Throughput | 3.50 Gbit/s |
| Encryption Standard |
|
| Connectivity Technology | Wired |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
SonicWall TZ380 Network Security/Firewall Appliance (03-ssc-1831)
$628.25
