Startech
StarTech Thunderbolt 3 Mini Dock - Portable Dual Monitor TB3 Docking Station DisplayPort 4K 60Hz - 1x USB-A TB3DKM2DPL
- SKU:
- 18251920
- MPN:
- 247274
- Availability:
- Usually ships the same or next business day. In stock at our CA, PA, SC, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 06/14/2026 02:35:13 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $40.92 each 40.92 |
| Buy 3 | and pay only $38.44 each 38.44 |
| Buy 4 or above | and pay only $36.21 each 36.21 |
- Stock Update:
- 06/14/2026 02:35:13 AM PST
Description
This item is brand-new, factory sealed.

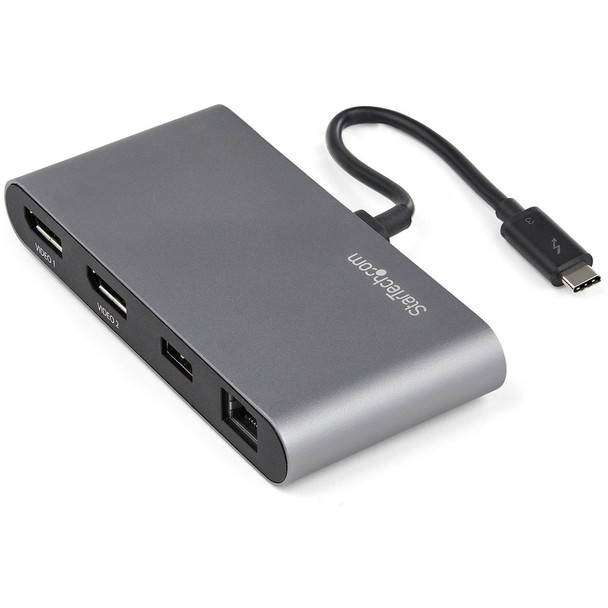

This certified Thunderbolt™ 3 docking station is a compact mini dock, delivering essential connections for productivity. The bus-powered dock connects dual 4K DisplayPort displays, Gigabit Ethernet, and one USB-A (USB 3.2) port and for flexible set up, the attached Thunderbolt 3 cable has an extended length of (11 in./ 28 cm).
Create a Dual-4K 60Hz Workstation
Great for editing 4K video or other Ultra HD tasks, this portable Thunderbolt™ 3 to DisplayPort dock supports 40 Gbps of throughput and 4K resolution at 60Hz on dual DisplayPort monitors, through a single Thunderbolt™ 3 port. Run resource-demanding applications on two independent displays without draining system resources.
Connect your laptop to:
- 2x 4K DisplayPort (DP) displays (up to 4096 x 2160p @ 60Hz)
Compact Size & 11-Inch Attached Host Cable
At just 2.4"" x 4.9"" (6.1 cm x 12.4 cm), this dock takes up minimal room on your desk and in your laptop case. The dock's 28 cm (11 inches) attached cable provides extended reach to reduce port/connector strain on MacBooks and laptops on riser stands, or if needed, offers the flexibility to position dock further away from the laptop on your desk.
The Ports You Need Most
- 1x USB 3.2 Gen 1 Type-A port (5 Gbps)
- 1x Gigabit Ethernet port (with PXE Boot and Wake-on-LAN support)
Ideal for Power-Demanding Workstation Setups
As many high powered, later generation laptops optimally require more than 100W of power to stay charged, some users prefer to use their laptop's power adapter vs. using their docking stations to keep laptops charged.
This bus-powered TB3 mini dock is ideally suited for those users, providing full Thunderbolt™ 3 docking station performance and functionality, while their workstation laptops are separately charged.""
The TB3DKM2DPL is Thunderbolt Certified and backed by a StarTech.com 3-year warranty and free lifetime technical support.
Package Contents:
- Docking Station
- 1 x User Manual
Features
Yes
WEEE Statement:
https://media.startech.com/cms/pdfs/tb3dkm2dpl_weee.pdf
EU RoHS Declaration URL:
https://media.startech.com/cms/pdfs/tb3dkm2dpl_rohs.pdf
Package Contents:
- Docking Station
- 1 x User Manual
Environmental Certification:
EU RoHS
Environmentally Friendly:
Yes
REACH Declaration URL:
https://media.startech.com/cms/pdfs/tb3dkm2dpl_rohs.pdf
REACH free of SVHC:
Yes
Compatibility:
Compatible Products:
- Apple MacBook
- Dell XPS
- HP EliteBook
- Lenovo X1 Carbon
- Apple MacBook Pro 13
- Apple MacBook Pro 16
- Apple MacBook Air
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Brand Compatibility:
Apple
Dell
HP
Lenovo
Country of Origin:
Thailand
Specs
| Physical Characteristics | |
| Weight (Approximate) | 5.20 oz |
| Length | 4.9" |
| Product Color |
|
| Height | 1.10" |
| Color Family | Dual Color |
| Width | 2.70" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Number of USB 3.1 Gen 1 Type-A Ports | 1 |
| Number of USB Type-A Ports | 1 |
| Network (RJ-45) | Yes |
| Host Interface | Thunderbolt 3 |
| DisplayPort | Yes |
| USB Type-A | Yes |
| Number of DisplayPort Outputs | 2 |
| Number of RJ-45 Ports | 1 |
| Number of USB 3.2 Gen 1 Type-A Ports | 1 |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | This certified Thunderbolt™ 3 docking station is a compact mini dock, delivering essential connections for productivity. The bus-powered dock connects dual 4K DisplayPort displays, Gigabit Ethernet, and one USB-A (USB 3.2) port and for flexible set up, the attached Thunderbolt 3 cable has an extended length of (11 in./ 28 cm). Create a Dual-4K 60Hz Workstation Great for editing 4K video or other Ultra HD tasks, this portable Thunderbolt™ 3 to DisplayPort dock supports 40 Gbps of throughput and 4K resolution at 60Hz on dual DisplayPort monitors, through a single Thunderbolt™ 3 port. Run resource-demanding applications on two independent displays without draining system resources. Connect your laptop to: 2x 4K DisplayPort (DP) displays (up to 4096 x 2160p @ 60Hz) Compact Size & 11-Inch Attached Host Cable At just 2.4" x 4.9" (6.1 cm x 12.4 cm), this dock takes up minimal room on your desk and in your laptop case. The dock's 28 cm (11 inches) attached cable provides extended reach to reduce port/connector strain on MacBooks and laptops on riser stands, or if needed, offers the flexibility to position dock further away from the laptop on your desk. The Ports You Need Most 1x USB 3.2 Gen 1 Type-A port (5 Gbps) 1x Gigabit Ethernet port (with PXE Boot and Wake-on-LAN support) Ideal for Power-Demanding Workstation Setups As many high powered, later generation laptops optimally require more than 100W of power to stay charged, some users prefer to use their laptop's power adapter vs. using their docking stations to keep laptops charged. This bus-powered TB3 mini dock is ideally suited for those users, providing full Thunderbolt™ 3 docking station performance and functionality, while their workstation laptops are separately charged." The TB3DKM2DPL is Thunderbolt Certified and backed by a StarTech.com 3-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer |
| Product Type | Docking Station |
| Product Name | Docking Station |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | TB3DKM2DPL |
| Packaged Quantity | 1 Each |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Software | |
| Operating System Supported |
|
| Technical Information | |
| Number of Displays Supported | 2 |
| Screen Mode Supported | 4K |
| Supported Resolutions | 3840 x 2160 |
| Device Supported | Notebook |
| Connectivity Technology | Wired |
Warranty Information
