StarTech 1-Port Parallel PCIe Card PEX1P2
- SKU:
- 18215007
- MPN:
- 253639
- Availability:
- Usually ships the same or next business day. In stock at our CA, GA, MS, NJ, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/18/2025 04:44:50 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $40.67 each 40.67 |
| Buy 3 | and pay only $38.71 each 38.71 |
| Buy 4 - 9 | and pay only $36.70 each 36.7 |
| Buy 10 - 30 | and pay only $34.96 each 34.96 |
| Buy 31 or above | and pay only $34.22 each 34.22 |
- Stock Update:
- 12/18/2025 04:44:50 PM PST
Description
This item is brand-new, factory sealed.

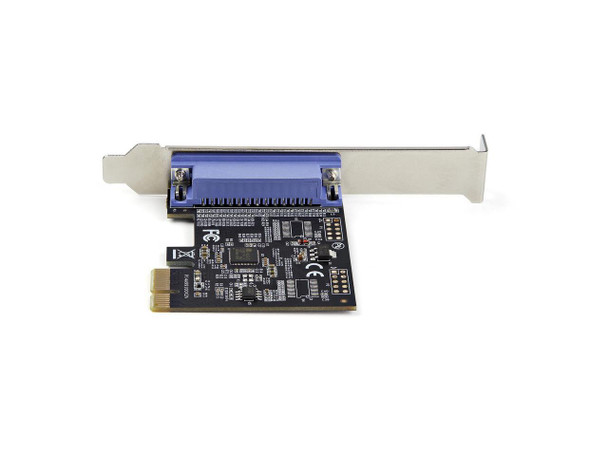

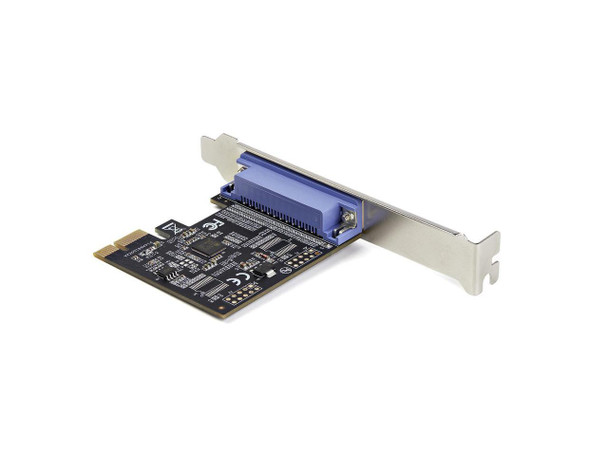

This PCIe Parallel controller card installs into an available PCI-Express x1 slot in your computer and enables you to add DB25 parallel communication port to your system.Adds a Parallel Port to Your Desktop Computer
The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps.
Wide Installation Compatibility
This add-on card includes both full-profile and low-profile installation brackets (full-profile bracket pre-installed) ensuring you can install it into either a full or low-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1). For wide platform support the card is compatible with Windows (XP or higher), Windows Server (2003 or higher), and Linux (2.6.X or higher).
PEX1P2 is backed by a StarTech.com 2-year warranty with free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals choice for over 30 years.
Applications
Connect printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes to your computer
Use in factories to control or automate equipmentCompatibility
Windows 7, 8, 8.1, 10, 11
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Linux 2.6.x to 5.x LTS Versions onlySpecifications
Connector(s)
Connector Type(s)
1 - PCI Express x1
External Ports
1 - DB-25 (25 pin, D-Sub)Environmental
Operating Temperature
5oC to 50oC (41oF to 122oF)
Storage Temperature
20oC to 60oC (68oF to 140oF)
Humidity
40%-80% RHHardware
Ports
1
Interface
PCI Express
Bus Type
Parallel
Card Type
Standard Profile (LP bracket incl.)
Port Style
Integrated on Card
Industry Standards
PCI Express 2.0
IEEE 1284
Chipset ID
Asix - AX99100Performance
Maximum Data Transfer Rate
2.5 Mbps
General Specifications
Supported Parallel Modes: SPP (Standard Printer Port), Nibble, Byte, and ECP (Extended Capabilities Port)
MTBF
17,520 HoursPhysical Characteristics
Color
BlackSoftware
OS Compatibility
Windows 7, 8, 8.1, 10, 11
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Linux 2.6.x to 5.x LTS Versions onlyWhats in the Box

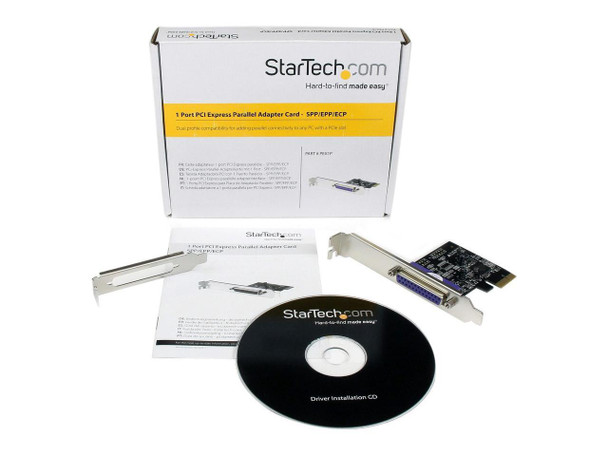

Included in Package
1 - Quick-Start Guide
1 - PCI Express Parallel Card
1 - Full Profile Bracket (Installed)
1 - Low Profile BracketItem Dimension (L"xW"xH")
6 x 7 x 2
Weight
1 lb
Warranty Information
2 Year Warranty
Features
Package Contents:
EU RoHS
Yes
China
- 1-Port Parallel PCIe Card
- Full Profile Bracket
- Low Profile Bracket
- Quick Start Guidel
Environmental Certification:
EU RoHS
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Weight (Approximate) | 1.59 oz |
| Card Height | Half-height/Low-profile |
| Height | 0.7" |
| Width | 2.9" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Number of Parallel Ports (External) | 1 |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | This PCIe Parallel controller card installs into an available PCI-Express x1 slot in your computer and enables you to add DB25 parallel communication port to your system. Adds a Parallel Port to Your Desktop Computer The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps. Wide Installation Compatibility This add-on card includes both full-profile and low-profile installation brackets (full-profile bracket pre-installed) ensuring you can install it into either a full or low-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1). For wide platform support the card is compatible with Windows (XP or higher), Windows Server (2003 or higher), and Linux (2.6.X or higher). PEX1P2 is backed by a StarTech.com lifetime warranty with free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years. |
| Product Type | Parallel Adapter |
| Product Name | 1-Port Parallel PCIe Card |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEX1P2 |
| Packaged Quantity | 1 |
| Technical Information | |
| Host Interface | PCI Express 2.0 x1 |
| Platform Supported |
|
