Startech.com

SATA PCIe Card, 6 Port PCIe SATA Expansion Card, 6Gbps SATA Adapter, Stacked SATA Connectors, PCI Express to SATA Converter (258845)

SKU:
18515750
MPN:
258845
Availability:
Usually ships the same or next business day. In stock at our CA, PA warehouses.
Shipping:
Calculated at Checkout
Stock Update:
10/02/2022 09:09:26 PM PST
  • Main
  • Alternate-Image8
  • Alternate-Image7
  • Alternate-Image6
  • Alternate-Image5
  • Alternate-Image4
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image1
$69.81

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 5 - 9 and pay only $68.29 each 68.29
Buy 10 or above and pay only $67.03 each 67.03
Stock Update:
10/02/2022 09:09:26 PM PST

Description

This item is brand-new, factory sealed.

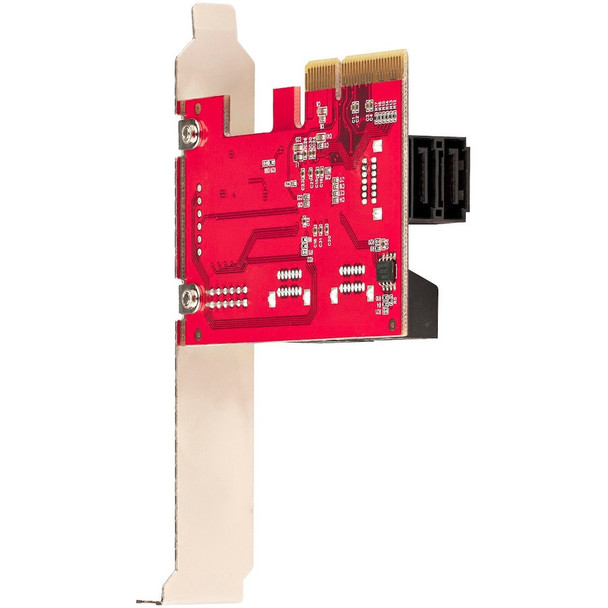

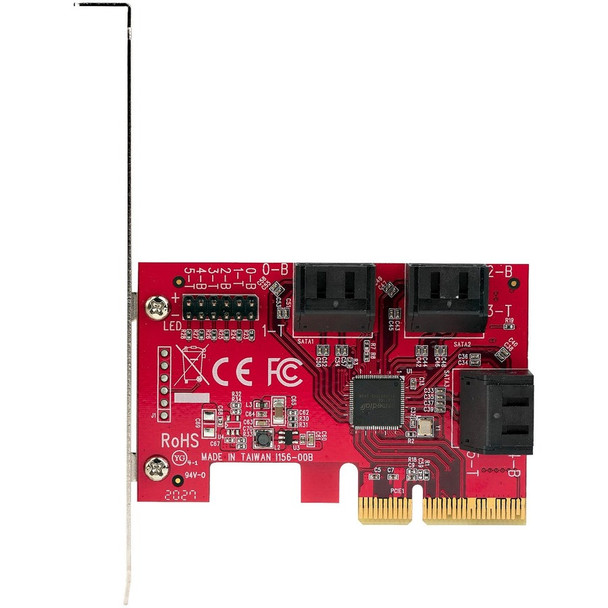

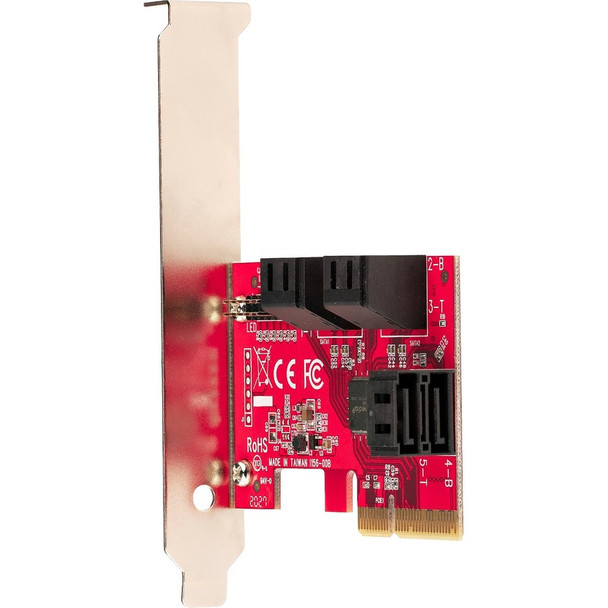

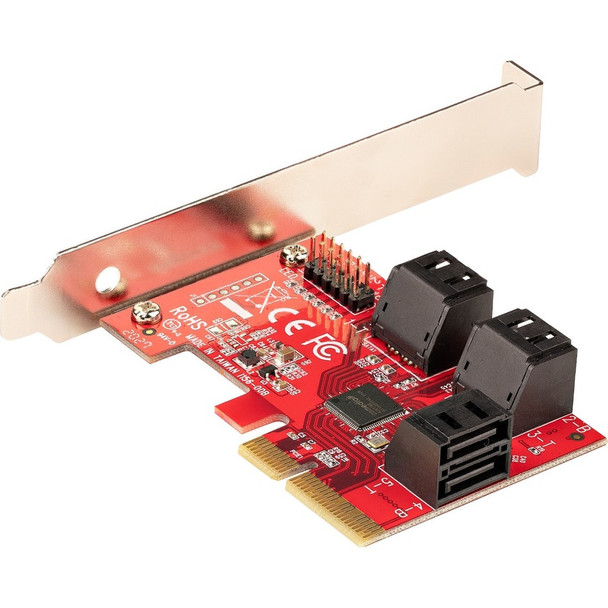

This 6-port SATA III (6Gbps) controller enables you to add six SATA 6Gbps hard drives (HDDs) or solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express 3.0 Specifications.

ASM1166 to Deliver 6-Port SATA 6Gbps Performance

Featuring the ASM1166 controller, this SATA card enables the connection of six high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via six individual SATA ports located on the card (SATA cables sold separately).

Wide Compatibility

The controller card is widely supported across all popular operating system platforms including Windows (7,8,10), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).

To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance.

Hassle-Free Installation

The SATA controller card features plug-and-play installation and can be installed in full-profile and low-profile computer systems with a full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft) , RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.

6P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.



Package Contents:
  • PCIe SATA Card
  • Full-Profile Bracket (Installed)
  • Low-Profile Bracket
  • Quick-Start Guide

Features

Package Contents:
  • PCIe SATA Card
  • Full-Profile Bracket (Installed)
  • Low-Profile Bracket
  • Quick-Start Guide



Environmental Certification:

RoHS
WEEE



Environmentally Friendly:
Yes



Platform Supported:
PC



Country of Origin:
Taiwan



Specs

Physical Characteristics
Form FactorPlug-in Card
Weight (Approximate)2.65 oz
Length3.2"
Height0.6"
Width2.1"
Warranty
Limited Warranty2 Year
Interfaces/Ports
Number of SATA Ports (Internal)6
Total Number of SATA Ports6
General Information
Brand NameStarTech.com
Manufacturer Website Addresshttp://www.startech.com
Marketing InformationThis 6-port SATA III (6Gbps) controller enables you to add six SATA 6Gbps hard drives (HDDs) or solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express 3.0 Specifications.
ASM1166 to Deliver 6-Port SATA 6Gbps Performance
Featuring the ASM1166 controller, this SATA card enables the connection of six high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via six individual SATA ports located on the card (SATA cables sold separately).
Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7,8,10), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).
To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance.
Hassle-Free Installation
The SATA controller card features plug-and-play installation and can be installed in full-profile and low-profile computer systems with a full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft) , RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.
6P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.
Product TypeSATA Controller
Product NamePCIe SATA Card
ManufacturerStarTech.com
Manufacturer Part Number6P6G-PCIE-SATA-CARD
Packaged Quantity1
Technical Information
Operating System Supported
Host InterfacePCI Express x4
Controller TypeSerial ATA/600
