Startech

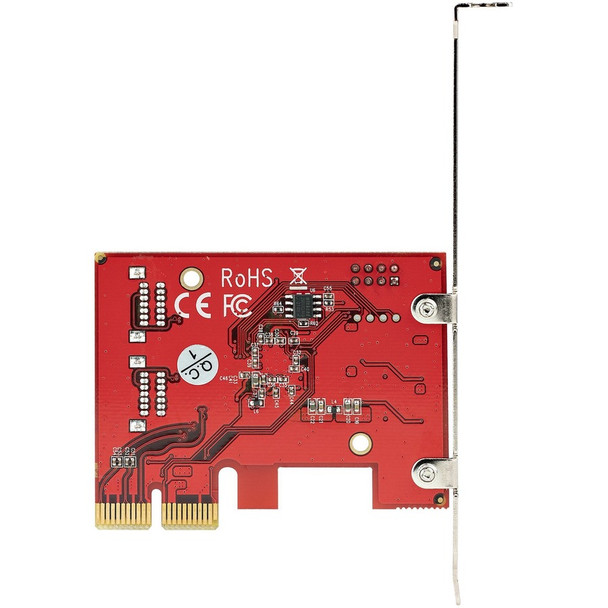

StarTech SATA PCIe Card 4P6GPCIESATACARD
- SKU:
- 18561683
- MPN:
- 259854
- Availability:
- Usually ships the same or next business day. In stock at our CA, PA, SC warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/26/2025 06:40:49 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $58.45 each 58.45 |
| Buy 3 | and pay only $54.62 each 54.62 |
| Buy 4 - 9 | and pay only $53.47 each 53.47 |
| Buy 10 - 11 | and pay only $51.40 each 51.4 |
| Buy 12 or above | and pay only $50.02 each 50.02 |
- Stock Update:
- 12/26/2025 06:40:49 AM PST
Description
This item is brand-new, factory sealed.
StarTech.com SATA PCIe Card - 4 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1164 Non-Raid - PCI Express to SATA Converter (4P6G-PCIE-SATA-CARD)- HIGH-PERFORMANCE: Add four SATA III 6Gbps ports to your desktop computer or server using a PCIe x4 slot to connect SATA drives (HDD/SSD); 4-Port SATA PCIe card features 4x SATA connections for connecting drives using SATA cables (sold separately)
- ASM1164 CONTROLLER: This PCI Express SATA 3 6Gbps card features single-chip architecture adding four SATA (serial ATA) 6Gbps ports via a single x4 PCIe slot, for combined total bandwidth up to 16Gbps; Supports Port Multiplier & NCQ (Native Command Queue)
- COMPATIBILITY: Supports PCIe 3.0, SATA 3.2 & AHCI 1.4 Specs, and previous gens at lower performance; Windows (7+), macOS (10.10+), Linux (2.6.32+); Improved motherboard compatibility with no built-in RAID; Supports ATA & ATAPI (HDD, SSD, Optical Disc)
- EASY INSTALL: Expansion card w/ plug-and-play setup in full or low-profile PCI-e slot (full-profile bracket installed, low-profile incl); Supports storage management systems such as Storage Spaces (Microsoft) , RAID Assistant (macOS), mdraid/mdadm (Linux)
- THE IT PROS CHOICE: Designed and built for IT Professionals, this 4 port PCIe SATA expansion card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance
- Brand: StarTech
- Item model number: 4P6G-PCIE-SATA-CARD
- Operating System: Windows 7, 8, 8.1, 10, 11, Windows Server 2012 R2, 2016, 2019, MacOS 10.10 to 11, Linux 2.6.32 and up
- Item Weight: 2.72 ounces
- Product Dimensions: 2.8 x 2.2 x 0.6 inches
- Item Dimensions LxWxH: 2.8 x 2.2 x 0.6 inches
- Manufacturer: STARTECH.COM
Package Contents:
- PCIe SATA Card
- Full-Profile Bracket (Installed)
- Low-Profile Bracket
- Quick-Start Guide
Features
Package Contents:
Yes
Taiwan
- PCIe SATA Card
- Full-Profile Bracket (Installed)
- Low-Profile Bracket
- Quick-Start Guide
Environmentally Friendly:
Yes
Platform Supported:
PC
Mac
Linux
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Weight (Approximate) | 2.65 oz |
| Length | 2.8" |
| Height | 0.6" |
| Width | 2.2" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Number of SATA Ports (Internal) | 4 |
| Total Number of SATA Ports | 4 |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | This 4-port SATA III (6Gbps) controller enables you to add four SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express 3.0 Specifications. ASM1164 to Deliver 4-Port SATA 6Gbps Performance Featuring the ASM1164 controller, this SATA card enables the connection of four high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via four individual SATA ports located on the card (SATA cables sold separately). Wide Compatibility The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately). To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance. Hassle-Free Installation The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft) , RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building. 4P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support. More from the Manufacturer More from the Manufacturer |
| Product Type | SATA Controller |
| Product Name | PCIe SATA Card |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 4P6G-PCIE-SATA-CARD |
| Technical Information | |
| RAID Supported | No |
| Operating System Supported |
|
| Host Interface | PCI Express 3.0 x4 |
| Controller Type | Serial ATA/600 |
| Device Supported | Server |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
StarTech SATA PCIe Card 4P6GPCIESATACARD
$63.50
