Startech 2s1p Pcie Parallel Serial Combo Card - 2 X 9-pin Db-9 Male Parallel PEX2S5531P

(No reviews yet) Write a Review
SKU:
18060399
MPN:
pex2s5531p
Availability:
Out of stock
Stock Update:
08/11/2025 11:37:41 AM PST
  • Main
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image1
  • Top
  • Rear
  • Front

Out of stock

Stock Update:
08/11/2025 11:37:41 AM PST

Description



This item is brand-new, factory sealed.

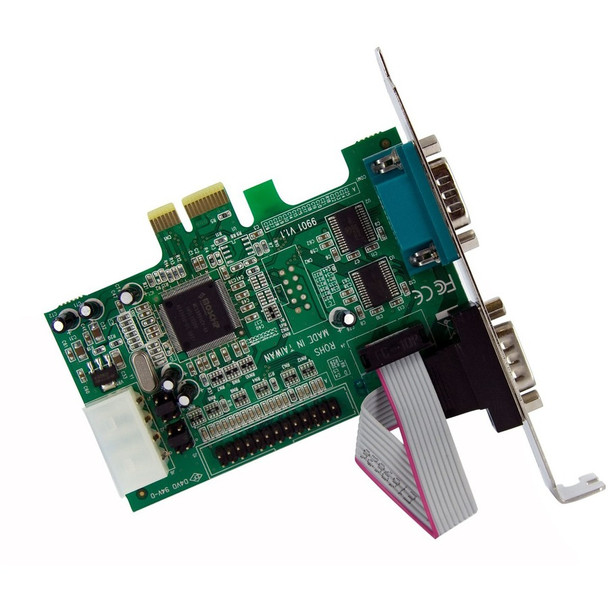

2s1p native pci express parallel serial combo card with 16550 uart. The pex2s5531p 2s1p pci express card turns a pci express slot into two rs232 (db9) serial ports and one parallel port. The adapter card features a native pci express single chip design that allows you to take advantage of full pci express capability providing improved speed and reliability while reducing the load applied to the cpu by as much as 48% over conventional serial cards which use a bridge chip design. Compatible with a broad range of operating systems including windows 2000/xp/2003/vista?/windows 7/server 2008 r2 (32 and 64-bit) linux kernel 2.6.11 and up and mac os 10.4 this 2 port serial 1 port parallel pci-express card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case regardless of the case form factor. This product is a replacement for our pex2s5521p card. Backed by a startech.Com lifetime warranty and free lifetime technical support.

Package Contents:
  • 2S1P PCIe Parallel Serial Combo Card
  • Standard and Low profile/half-height Bracket

Features

Package Contents:
  • 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
  • Parallel Port (with Ribbon Cable)
  • Low Profile Brackets
  • Driver CD
  • Instruction Manual



TAA Compliant:
Yes



Additional Information:
  • Native single-chip, single lane PCI Express chipset delivers true PCIe performance.
  • Standard and low profile/half-height bracket included to ensure fitment in any system.
  • Easy to install and use with full step-by-step instructions saving time and hassle.
  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS
  • Windows Server® 2012, 2008 R2, 2003
  • Mac OS® 10.4 - 10.6
  • Linux

    •

    Environmentally Friendly:
    Yes



    Country of Origin:
    Taiwan



    Specs

    Physical Characteristics
    Form FactorPlug-in Card
    Weight (Approximate)4 oz
    Card HeightDual-profile
    Length4.1"
    Height0.8"
    Width4.7"
    Warranty
    Limited Warranty2 Year
    Interfaces/Ports
    Number of Parallel Ports (External)1
    Number of Serial Ports (External)2
    General Information
    Brand NameStarTech.com
    Manufacturer Website Addresshttp://www.startech.com
    Marketing InformationThe PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.
    Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor.
    This product is a replacement for our PEX2S5521P card.
    Backed by a StarTech.com 2-year warranty and free lifetime technical support.
    More from the Manufacturer
    More from the Manufacturer
    Product TypeSerial/Parallel Combo Adapter
    Product Name2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
    ManufacturerStarTech.com
    Manufacturer Part NumberPEX2S5531P
    Product ModelPEX2S5531P
    Packaged Quantity1
    Technical Information
    Data Transfer Rate
    • 1.5MB/s Parallel Port
    • 460.8kB/s Serial Port
    Host InterfacePCI Express x1
    UART Type16550
    Platform Supported
    • PC
    • Mac
    • Linux
