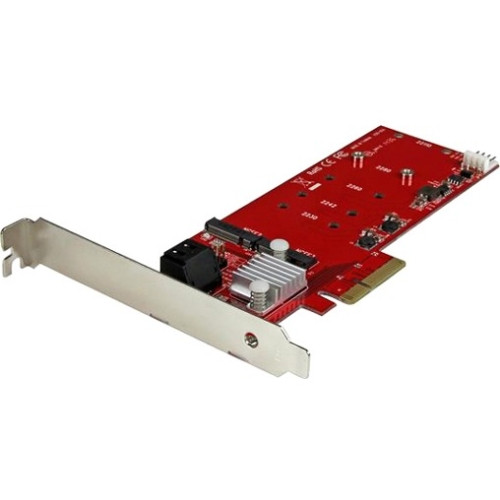

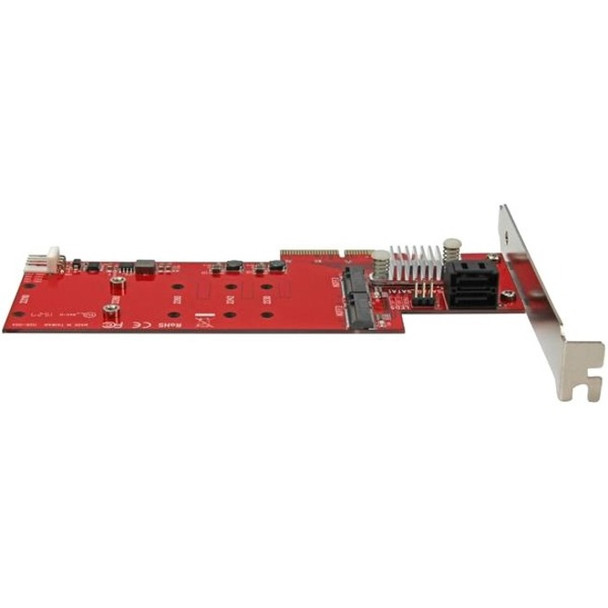

Startech.com 2x M.2 Ngff Ssd Raid Controller Card Plus 2x Sata Iii Ports - Pcie - Two Slot Pci Express M.2 Raid Card Plus Two Sata Ports - Serial Ata/600 - Pci Express 2.0 X4 - Plug-in (pexm2sat3422)

(No reviews yet) Write a Review
SKU:
18161090
MPN:
pexm2sat3422
Availability:
Usually ships in 1-2 business days.In stock at our CA warehouse.
Shipping:
Calculated at Checkout
Stock Update:
02/26/2024 06:25:01 PM PST
  • Main
  • Alternate-Image4
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image1
$86.99

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 2 and pay only $82.25 each 82.25
Buy 3 or above and pay only $80.17 each 80.17
Stock Update:
02/26/2024 06:25:01 PM PST

Description



This item is brand-new, factory sealed.

  Recover data or improve the performance and storage capacity of your desktop, by adding two M.2 solid-state drives (SSD) plus two SATA III drives

  Create a high-performance hardware RAID array to protect and back up your data or expand your storage supports RAID 0, 1, 10 (1+0)

  Wide installation compatibility, with support for virtually all M.2 NGFF drives (22110, 2280, 2260, 2242, 2230), as well as hybrid drives

  Port multiplier lets you connect up to seven drives total, including two M.2 drives
  Two M.2 B-Key onboard sockets that support SATA III transfer speeds up to 6Gbps

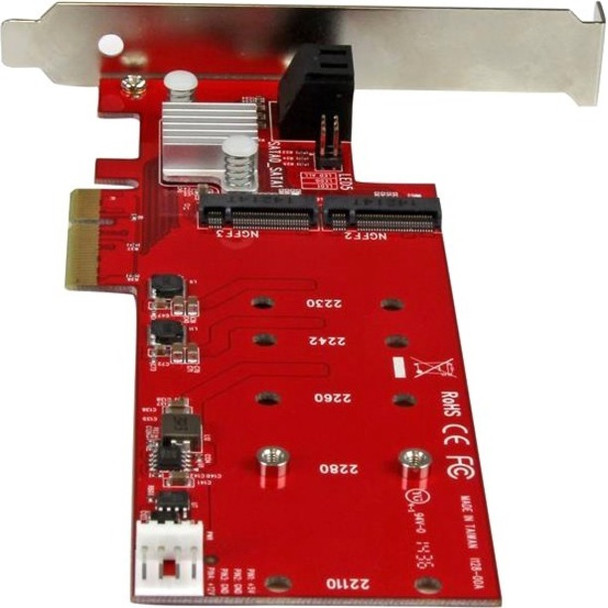

  Adjustable stand-offs, and multiple mounting holes support 110 mm, 80 mm, 60 mm, 42 mm, and 30 mm SSDs

  Fast, hassle-free setup with native support on most operating systems

  Compliant with PCI Express 2.0 standards

  Supports Native Command Queuing (NCQ), as well as ATA and ATAPI commands
  PCIe bus-powered, or powered by your computers power supply using a 4-pin floppy power connector (small drive power)

  Equipped with a full-profile bracket, includes a low-profile (half-height bracket) for installation in small form-factor computers

  Installs into x4, x8, or x16 PCIe slots
Hardware
Bus Type : PCI Express
Card Type : Standard Profile (LP bracket incl.)
Chipset ID : Marvell - 88SE9230
Industry Standards :
Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
PCI Express 2.0
Hardware RAID 0, RAID 1, RAID 10
Interface :
M.2 SATA (NGFF)
SATA
Port Style : Integrated on Card
Ports : 2Performance
Number of Drives Supported Through Port Multiplier : 1 to 4
Number of Ports That Support Port Multiplier : 2 (can only use 1 PM at a time)
Port Multiplier : Yes
RAID : Yes
Supported RAID Modes :
JBOD - (Just a Bunch of Disks)
RAID 1 (Mirrored Disks)
RAID 0 (Striped Disks)
RAID 10 (1+0 Striped set of Mirrored Subset)
Type and Rate : SATA III (6 Gbps)Connector(s)
Connector Type(s) : 1 - PCI Express x4 Male
Internal Ports :
2 - M.2 (NGFF B-Key) Receptacle
2 - SATA (7 pin Data) Plug
1 - SP4 (4 pin Small Drive Power) MaleSoftware
OS Compatibility :
Windows 10 (32-bit or 64-bit), 8 / 8.1 (32-bit or 64-bit), 7 (32-bit or 64-bit)
Windows Server 2012, 2008 R2
Mac OS 10.8 and later (tested up to 10.11)
Linux 3.5Special Notes / Requirements
Note : The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5Gbps per lane.
The cards two SATA ports support port multiplier, up to seven drives total (including two M.2 drives). Only one SATA port can use port multiplier at a time, with up to four drives total connected through PM (in a non-RAID configuration)
System and Cable Requirements : PCI Express x4 slot (backward compatible with x8, and x16 slots)LED Indicators
2 - M.2 drive LEDs (Green)
3 - Pin headers for LEDsEnvironmental
Humidity : 20 percent to 80 percent RH (Non-condensing)
Operating Temperature : 5oC to 50oC (41oF to 122oF)
Storage Temperature : -25oC to 70oC (-13oF to 158oF)Included in Package
1 - M.2 SSD RAID controller card
1 - low-profile bracket
2 - M.2 mounting screws
1 - quick-start guideItem Dimension (L inchxW inchxH inch)
9 x 7 x 2

Weight
1.00 lb

Warranty Information
2 Year Warranty

Features

Package Contents:
  • 2x M.2 NGFF SSD RAID Controller Card Plus 2x SATA III Ports - PCIe
  • 1 x Low-profile Bracket
  • 2 x M.2 Mounting Screws
  • 1 x Quick Start Guide



Certifications & Standards:
  • CE
  • FCC



TAA Compliant:
Yes



Additional Information:
  • Connector Type(s): 1 - PCI Express x4
  • Internal Ports: 2 - M.2 (SATA, B-Key, NGFF); 2 - SATA (7 pin, Data); 1 - SP4 (4 pin, Small Drive Power)
  • Ports: 2
  • Interface: M.2 SATA; SATA
  • Bus Type: PCI Express
  • Card Type: Standard Profile (LP bracket incl.)
  • Port Style: Integrated on Card
  • Industry Standards: Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps); PCI Express 2.0; Hardware RAID 0, RAID 1, RAID 10
  • Chipset ID: Marvell - 88SE9230



Environmentally Friendly:
Yes



Country of Origin:
Taiwan



Specs

Physical Characteristics
Product MaterialSteel
Weight (Approximate)2.30 oz
Length7.1"
Product ColorRed
Height4.7"
Width0.8"
Warranty
Limited Warranty2 Year
General Information
Brand NameStarTech.com
Manufacturer Website Addresshttp://www.startech.com
Marketing InformationThis M.2 SSD RAID controller card lets you install two M.2 NGFF (Next Generation Form Factor) drives in your desktop computer. The card also features two SATA III (6Gbps) ports and supports hardware RAID. Now, you can merge the speed and compact size of M.2 solid state drives (SSD) with the storage capacity of traditional hard disk drives (HDD).
Leverage the size and speed of M.2 drives
This M.2 controller card lets you take advantage of the size and performance benefits of NGFF SSDs. M.2 drives are smaller than typical platter drives or mSATA-based SSDs, so you can install them in small form-factor PCs and servers, or in tighter areas within your computer case.
When you couple the card with an M.2 drive, you can give your computer's performance a noticeable speed boost. By installing your operating system on the M.2 drive, you'll have faster access to the files you commonly use, and you can continue to use your higher-capacity platter HDD for bulk storage.
Peace of mind, with simple and cost-effective data recovery
Due to their performance and size advantages, M.2 drives are commonly used in laptops. If your laptop has failed but its M.2 drive is functional, then this card can help with data recovery. Once the M.2 drive is installed and the data recovery is complete, you can continue to use the drive for storage and backup purposes.
Build a high-performance RAID array
If you need a scalable, internal storage solution that you can count on, then this card can help. It supports a range of RAID configurations (RAID 0, 1, and 10), giving you multiple ways to expand your storage, improve your computer's performance, or to create data redundancy backups.
Connect even more drives with port multiplication
Because the M.2 card supports port multiplication, you can connect up to four drives to one of the card's SATA ports. With a built-in port multiplier, you can install up to seven drives (two M.2 SSDs, five SATA drives) in your computer through this single drive controller.
Supports a wide range of drives
You can rest assured that your M.2 SATA drives are compatible with the card. It supports the most common drive sizes, including 22110, 2280, 2260, 2242 and 2230. For more versatility, the card also supports hybrid drives.
The PEXM2SAT3422 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
Product TypeM.2/SATA to PCI Express Adapter
Product Name2x M.2 NGFF SSD RAID Controller Card Plus 2x SATA III Ports - PCIe
ManufacturerStarTech.com
Manufacturer Part NumberPEXM2SAT3422
Packaged Quantity1
