StarTech.com 4 Port HDMI Splitter - 4K 60Hz - 1x4 Way HDMI 2.0 Splitter - HDR - ST124HD202 (221643)
- SKU:
- 18165202
- MPN:
- 221643
- Availability:
- Usually ships the same or next business day. In stock at our GA, IL, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 07/26/2024 05:01:30 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
Buy 2 | and pay only $79.61 each 79.61 |
Buy 3 - 4 | and pay only $77.80 each 77.8 |
Buy 5 or above | and pay only $76.36 each 76.36 |
- Stock Update:
- 07/26/2024 05:01:30 AM PST
Description
This item is brand-new, factory sealed.

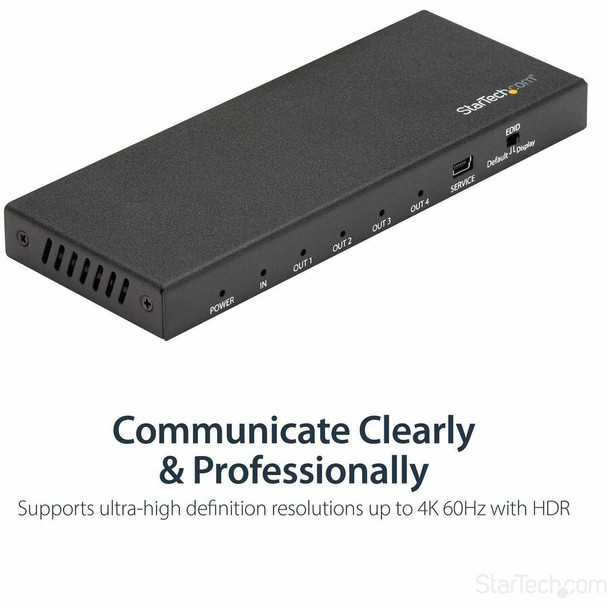

This 4-Port 4K HDMI splitter connects your HDMI video source to two HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.True 4K at 60Hz and HDR
With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.
The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.
Widely Compatible
The 4-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.

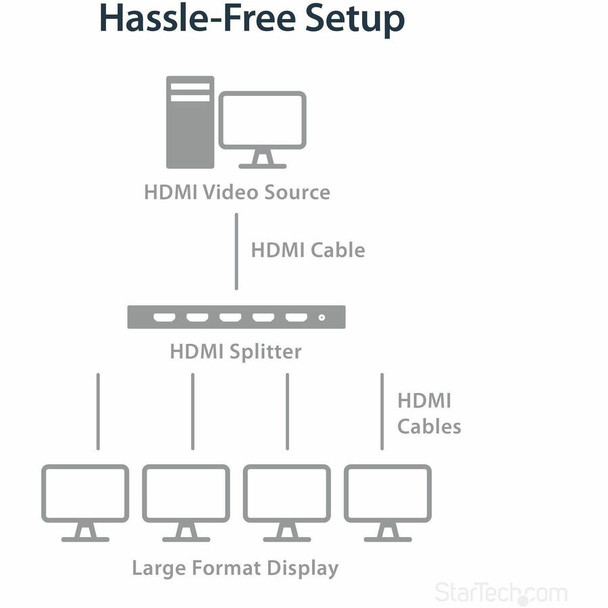

Easy Installation
For hassle-free setup, the 1x4 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.
ST124HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Hardware
Audio: Yes
AV Input: HDMI
AV Output: HDMI
Industry Standards: HDMI 2.0
Ports: 2Performance
Audio Specifications: 7.1 surround sound
Maximum Data Transfer Rate: 18Gbps
Maximum Digital Resolutions:
3840x2160 (4K) at 60Hz
2560x1600
1920x1200
1920x1080 (1080p)
1280x720 (720p)
Video Revision: HDMI 2.0
Wide Screen Supported: YesConnector(s)

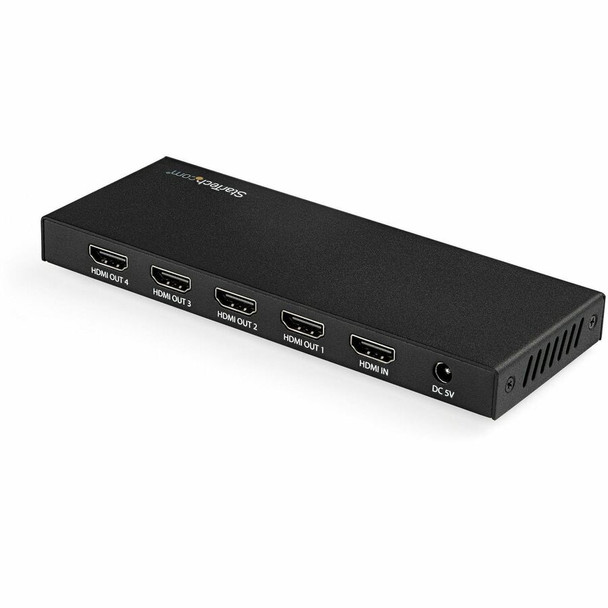

Connector A: 1 - HDMI (19 pin) Female Input
Connector B: 4 - HDMI (19 pin) Female OutputIndicators
LED Indicators:
1 - Power LED
1 - Input LED
4 - Output LEDsPower
Input Current: 0.2
Input Voltage: 100 - 240 AC
Output Current: 1 A
Output Voltage: 5 DC
Power Consumption (In Watts): 5Environmental
Humidity: 20-90 % RH (non-condensing)
Operating Temperature: 0oC to 40oC (32oF to 104oF)
Storage Temperature: -20oC to 60oC (-4oF to 140oF)Physical Characteristics
Color: BlackWhats in the Box
Included in Package:
1 - HDMI splitter
1 - universal power adapter (NA, EU, UK, ANZ)
1 - quick-start guideItem Dimension (L"xW"xH")
9 x 6 x 3
Weight
2 lbs
Warranty Information
2 Year Warranty
Package Contents:
- 4-Port HDMI Splitter - 60Hz
- 1 x Universal Power Adapter (NA, EU, UK, ANZ)
- 1 x Quick-Start Guide
Features
Package Contents:
Yes
China
- 4-Port HDMI Splitter - 4K 60Hz
- 1 x Universal Power Adapter (NA, EU, UK, ANZ)
- 1 x Quick-Start Guide
Environmentally Friendly:
Yes
Country of Origin:
China
Specs
Power Description | |
Input Voltage |
|
Physical Characteristics | |
Product Material | Metal |
Weight (Approximate) | 1.12 lb |
Length | 6.5" |
Product Color | Black |
Height | 2.6" |
Width | 2.5" |
Warranty | |
Limited Warranty | 2 Year |
Interfaces/Ports | |
HDMI Out | Yes |
Number of HDMI Inputs | 1 |
HDMI In | Yes |
Number of HDMI Outputs | 4 |
Video | |
Maximum Video Resolution | 4096 x 2160 |
General Information | |
Brand Name | StarTech.com |
Manufacturer Website Address | http://www.startech.com |
Marketing Information | This 4-Port 4K HDMI splitter connects your HDMI video source to four HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling. True 4K at 60Hz and HDR With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color. The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging. Widely Compatible The 4-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site. Easy Installation For hassle-free setup, the 1x4 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly. ST124HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support. More from the Manufacturer |
Product Type | Signal Splitter |
Product Name | 4-Port HDMI Splitter - 4K 60Hz |
Manufacturer | StarTech.com |
Manufacturer Part Number | ST124HD202 |
Packaged Quantity | 1 |
Media & Performance | |
Maximum Operating Distance | 16.40 ft |
