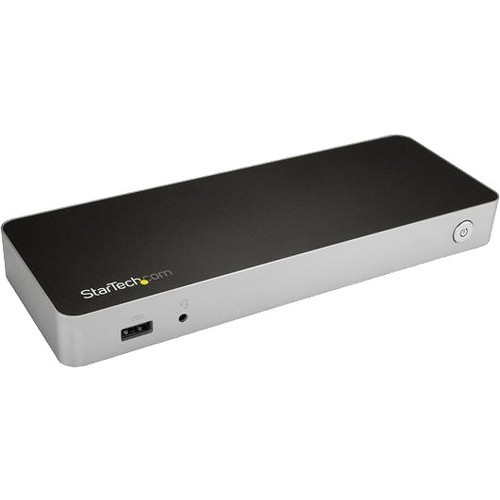

StarTech Dual Monitor USB C Dock - For Windows - MST - 60W Power Delivery - 4K - HDMI to DVI Adapters - Laptop Docking Station (mst30c2hhpd)

This item is brand-new, factory sealed.

This dual-monitor USB-C dock has all the connections to turn your Windows laptop into a full workstation, through one USB Type-C cable. With MST (Multi-Stream Transport) support, you can connect dual HDMI monitors or a single 4K HDMI monitor.

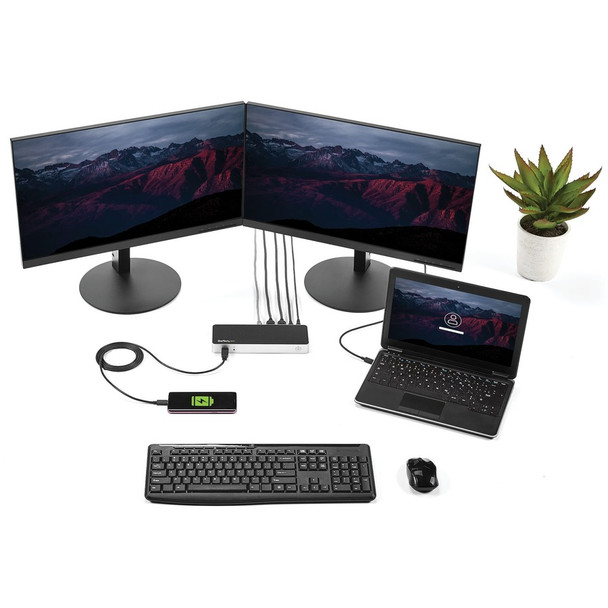

Enjoy dual-monitor video output
With MST support, this Windows docking station lets you create a dual-monitor setup, and includes two HDMI to DVI adapters for more flexibility in your monitor connections. With the dock, you can connect:
Two HDMI or two DVI displays at 1920 x 1200p at 60Hz
One HDMI and one DVI display at 1920 x 1200p at 60Hz
(For a dual-monitor setup, the Windows laptop must support MST.)
Connect a 4K display
The USB-C dock lets you set up a single high-resolution 4K monitor, by connecting:
One 4K HDMI display at 4096 x 2160p at24Hz, or 3840 x 2160p at 30Hz

Connect one adapter to power your dock and laptop
The dock powers and charges your laptop and peripherals, with support for 60W USB Power Delivery 2.0. With only one power adapter connected to the dock, you reduce clutter at your workstation.

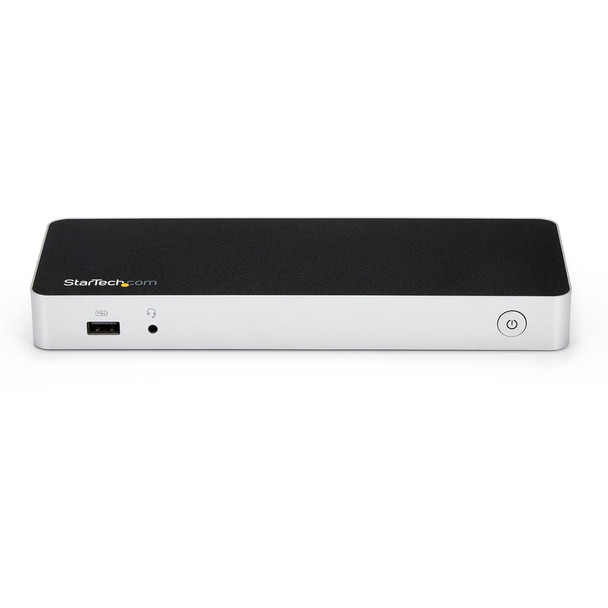

All the connections you need
This full-featured docking station offers five USB 3.0 ports (including a USB-C port and fast-charge and sync port), a Gigabit Ethernet port (PXE Boot support), plus audio and microphone connections.

Fast, easy setup
The dock features automatic driver installation for easy setup. It works with Windows-based laptops with a USB-C port that supports DP Alt Mode and USB Power Delivery.Hardware
4K Support:Yes
Bus Type:USB-C
Chipset ID:VIA/VLI - VL813
MegaChips - STDP4320
Realtek - RTL8153
C-Media - CM6533
Texas Instruments - TPS65983
Displays Supported:2
Fast-Charge Port(s):Yes
Industry Standards:USB Power Delivery Specification Rev. 2.0
USB Battery Charging Specification Rev. 1.2
DisplayPort 1.2 with MST
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Performance
Auto MDIX:Yes
Compatible Networks:10/100/1000 Mbps
Full Duplex Support:Yes
Maximum Data Transfer Rate:5 Gbps (USB 3.0)
2 Gbps (Ethernet Full-Duplex)
Maximum Digital Resolutions:1920 x 1200p at 60Hz (HDMI/DVI - Dual Monitors)
4096 x 2160p at 24Hz (HDMI - Single Monitor)
3840 x 2160p at 30Hz (HDMI - Single Monitor)
1920 x 1200p at 60Hz (DVI - Single Monitor)
PXE:Yes
Type and Rate:USB 3.0 - 5 Gbit/s
UASP Support:Yes

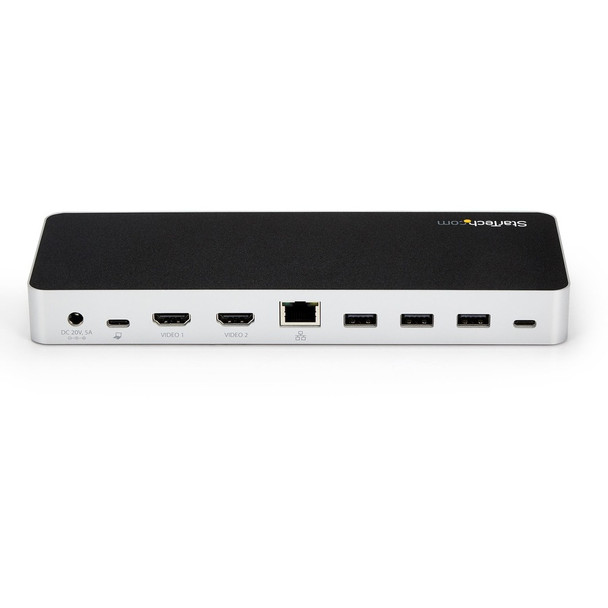

Connector(s)
Connector Type(s):2 - USB Type-C (24 pin) USB 3.0 Female
2 - HDMI (19 pin) Female
1 - USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female
3 - USB Type-A (9 pin) USB 3.0 Female
1 - RJ-45 Female
1 - 3.5 mm Mini-Jack (4 Position) Female
Software
OS Compatibility:Windows 7, 8, 8.1, 10
Special Notes / Requirements
Note:Ensure your laptops drivers, firmware, and operating system are up to date prior to using the docking station.
A 4K-capable HDMI display is required to achieve 4K resolution
Video output capabilities are dependent on the video card and hardware specification of your connected laptop. Certain video cards have limited MST support, while some monitors will also limit the available resolution.
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP Alt Mode, as well as USB Power Delivery.
USB 3.0 is also known as USB 3.1 Gen 1 this connectivity standard offers speeds up to 5Gbps
Not all Thunderbolt 3 USB-C ports support the full functionality of the Thunderbolt 3 standard. Ensure that your laptop Thunderbolt 3 port supports USB Power Delivery.
Mac OS and Chrome OS do not support MST.
For a dual-monitor configuration, the Windows laptop must support MST
System and Cable Requirements:A Windows-based laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP Alt Mode)
Power
Center Tip Polarity:Positive
Input Current:2 A
Input Voltage:100 - 240 AC
Output Current:5 A
Output Voltage:20V DC
Plug Type:N
Power Consumption (In Watts):100 W
Power Delivery:60W
Power Source:AC Adapter Included
Environmental
Humidity:5%-95% RH (Non-condensing)
Operating Temperature:0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature:-20^oC to 70^oC (-4^oF to 158^oF)
Physical Characteristics
Color:Black
Enclosure Type:Plastic

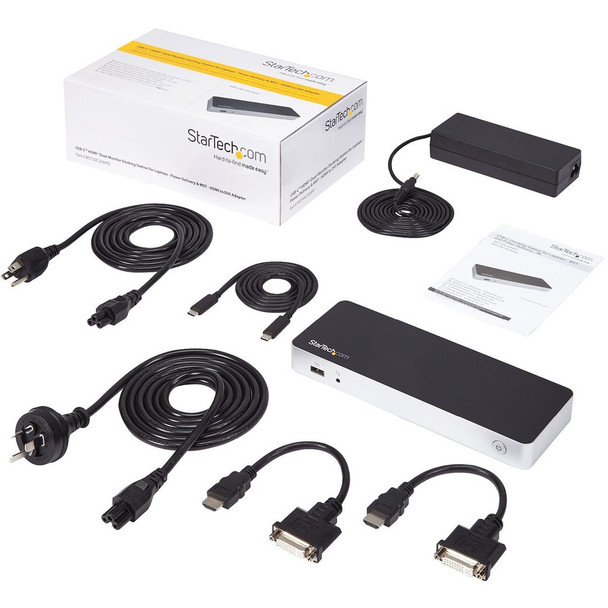

What is in the Box
Included in Package:1 - docking station
1 - 1m USB-C to USB-C cable
2 - HDMI to DVI adapters
1 - universal power adapter (NA/JP, ANZ)
1 - quick-start guide
Item Dimension (L inchxW inchxH inch)
12 x 8 x 3Weight
3.31lbWarranty Information
3 Years
