Startech.com Dual Port Gigabit Pci Express Server Network Adapter Card - Pcie Nic - Pci Express X1 - 2 Port[s] - 2 - Twisted Pair (st1000spexd4)
(No reviews yet)
Write a Review
- SKU:
- 18050000
- MPN:
- st1000spexd4
- Availability:
- Usually ships the same or next business day. In stock at our CA, GA, IL, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 05/19/2023 10:05:24 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 3 - 4 | and pay only $94.52 each 94.52 |
| Buy 5 - 11 | and pay only $92.92 each 92.92 |
| Buy 12 or above | and pay only $90.90 each 90.9 |
- Stock Update:
- 05/19/2023 10:05:24 AM PST
Description
This item is brand-new, factory sealed.

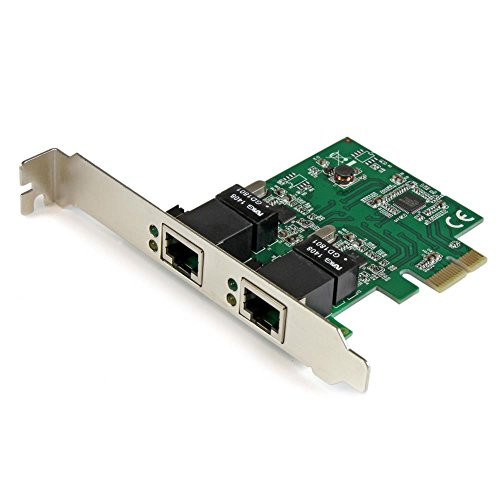

The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.
The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis. Hardware
Ports:2
Interface:RJ45 (Gigabit Ethernet)
Bus Type:PCI Express
Card Type:Standard Profile (LP bracket incl.)
Port Style:Integrated on Card
Industry Standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
PCI Express Base Specification 2.0
Chipset ID:
Realtek - RTL8111E
Asmedia - ASM1182E Connector(s)
Connector Type(s):1 - PCI Express x1 Male
External Ports:2 - RJ-45 Female Performance
Maximum Data Transfer Rate:2000 Mbps (full-duplex), 1000 Mbps (half-duplex)
Compatible Networks:10/100/1000 Mbps
Auto MDIX:Yes
Full Duplex Support:Yes
Jumbo Frame Support:9K max.
Supported Protocols:IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control Software
OS Compatibility:
Windows 8.1 / 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), 2000
Windows Server 2012, 2008 R2, 2003(32/64)
Mac OS 10.4 and up (Tested up to 10.10)
Linux 2.4.x and up (Tested up to 3.5)
Special Notes / Requirements
System and Cable Requirements:Available PCI Express slot Indicators
LED Indicators:2 - Green - Link/Activity
2 - Yellow - Gigabit Mode
Included in Package
1 - PCIe Network Card
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual Item Dimension (L"xW"xH"):
6.69 x 5.59 x 1.18
Weight:
0.42 lb
Warranty Information:
2 Year Warranty
Features
Package Contents:
Yes
Server
China
- Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC
- 1 x Low Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
Environmental Certification:
RoHS
REACH
WEEE
Environmentally Friendly:
Yes
System Requirements:
- Windows® 2000, XP, Vista, 7, 8, 8.1, 10
- Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
- Mac OS 10.4 to 10.9
- Linux 2.4.x to 4.11.x LTS Versions only
Device Supported:
Server
Country of Origin:
China
Specs
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Weight (Approximate) | 1.90 oz |
| Height | 4.7" |
| Width | 0.7" |
| Depth | 3.6" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Host Interface | PCI Express x1 |
| Number of Network (RJ-45) Ports | 2 |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards. Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks. The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis. Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer |
| Product Type | Gigabit Ethernet Card |
| Product Name | Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST1000SPEXD4 |
| Packaged Quantity | 1 |
| Media & Performance | |
| Data Transfer Rate | 250 MB/s |
| Media Type Supported | Twisted Pair |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
