Startech Hdmi Over Ip Extender Kit With Video Wall Support - Extends Hdmi Signal And Rs232 Control To One Or Multiple Displays - Video Resolutions Up To 1080p - Mobile App - (225056)

This item is brand-new, factory sealed.

This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5 or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.

You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.

Resolutions up to 1080p, with Audio

With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.

Mobile Control Through a Free App

The kit includes an easy-to-use online app to manage your IP video distribution.

The app is available on iOS for an iPhone or iPad, Android for a smartphone or tablet, and Google Chrome browser for a desktop.

Hassle-Free Installations

The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.

ST12MHDLAN2K is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

Distribute digital signage or entertainment content in schools, hospitals, office buildings, shopping centers or stadiums

Create a video wall by combining multiple displays

Extend RS-232 serial control to create an interactive digital signage presentation

Point-to-point, point-to-multipoint and multipoint-to-multipoint applications
HARDWARE
Audio
Yes
Cabling
Cat 5e UTP or better
Daisy-Chain
Yes
Rack-Mountable
Yes
PERFORMANCE
Audio Specifications
7.1 Channel Surround
Max Distance
100 m / 330 ft
Maximum Digital Resolutions
1920x1080 at 60Hz
Supported Resolutions
1920 x 1080 at 60Hz
1280 x 720
1680 x 1050
1600 x 900
1440 x 900
1360 x 768
1280 x 800
1280 x 768
Lower resolutions and refresh rates may also be supported
Wide Screen Supported
Yes
CONNECTOR(S)

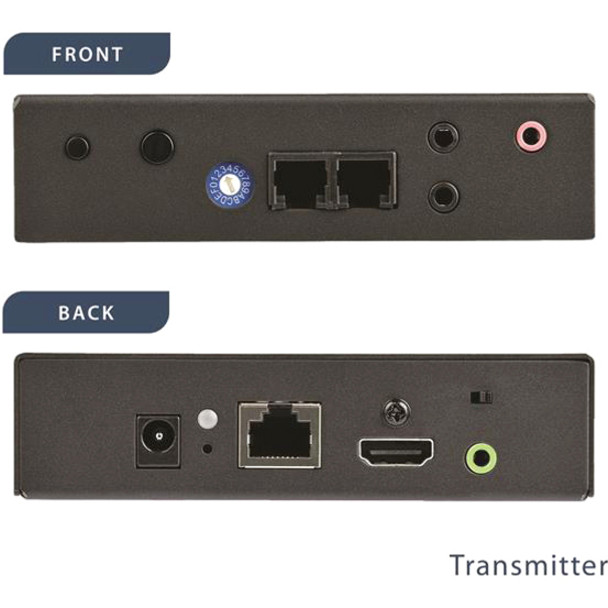

Local Unit Connectors
1 - HDMI (19 pin)
1 - RJ-45
2 - RJ-11 Female
2 - 3.5 mm Audio Female
2 - 3.5 mm Mini-Jack (3 Position) Female
Remote Unit Connectors
1 - HDMI (19 pin)
1 - RJ-45
2 - RJ-11 Female
2 - 3.5 mm Audio Female
2 - 3.5 mm Mini-Jack (3 Position) Female
INDICATORS
LED Indicators
1 - Power/Link - Transmitter
1 - Network Status - Transmitter
1 - Power/Link - Receiver
1 - Network Status - Receiver
POWER
Center Tip Polarity
Positive
Input Current
0.6 A
Input Voltage
100 to 240 AC
Output Current
1.5 A
Output Voltage
12 DC
Plug Type
M
Power Consumption (In Watts)
10
Power Source
AC Adapter Included
ENVIRONMENTAL
Humidity
0% - 80 %
Operating Temperature
0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature
-10^oC to 60^oC (14^oF to 140^oF)
PHYSICAL CHARACTERISTICS
Color
Black
Enclosure Type
Aluminum
WHATS IN THE BOX
Included in Package
1 - HDMI Transmitter
1 - HDMI Receiver
1 - CAT5 Cable
2 - RJ-11 to RS-232 Adapters
2 - RJ-11 Cables
1 - IR Blaster
1 - IR Receiver
2 - Universal Power Adapters (NA/JP, EU, UK, ANZ)
1 - Hardware Kit
8 - Foot Pads
1 - User Manual
Item Dimension (L"xW"xH")
10 x 15 x 3
Weight
4.00 LB
Warranty Information
2 Year Warranty
