StarTech StarTech 5.25 Tray-Less SATA Hot-Swap Hard Drive Bay - Storage mobile rack - black (HSB100SATBK)"

This item is brand-new, factory sealed.

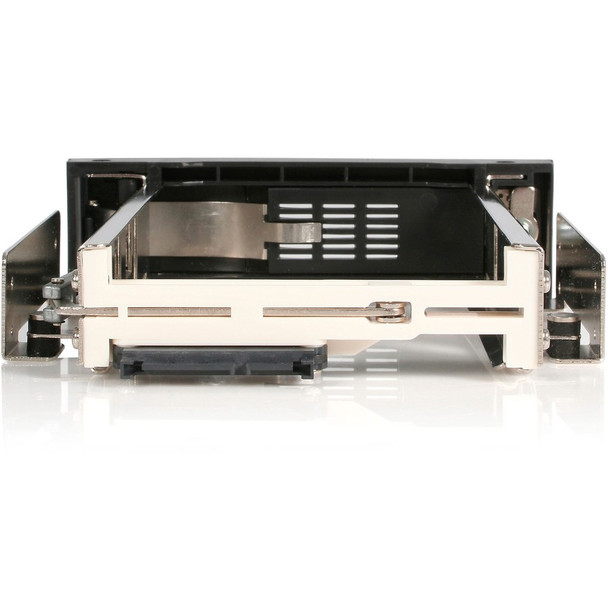

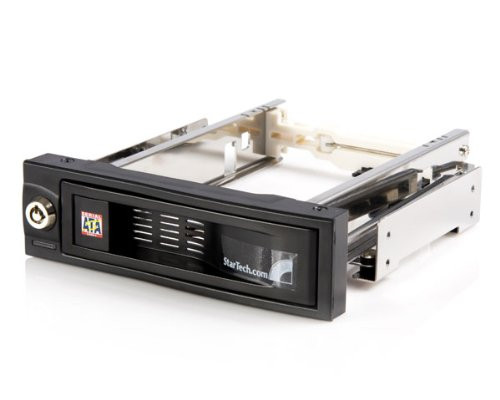

This 3.5in SATA hard drive hot-swap bay allows you to install a 3.5in SATA drive in an available/unused 5.25in drive bay. To remove the drive, its as simple as opening the front panel door to re-insert a drive, simply insert the drive (connector first) until the door closes.The hot swap bay offers a trayless design that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.FeaturesEnterprises replacing IDE/Parallel ATA hard drives with SATA/300(SATA II) or SATA/150 hard drivesInternal rubber cushioning helps eliminate vibration and damage to the hard diskTo ensure optimum drive operation, the drive kit includes foam padding that helps prevent damage to the drive due to vibrationsWorks with any computer with standard 5.25" drive bayTechnical SpecificationsColor -- BlackCarton Quantity -- 30Bus Type -- SATA I (SATA 150), II (SATA /300)Connectors -- SATACables -- SATA 7 pin and power cable 15 pinMaximum Data Transfer Rate -- 3.0 GBytes/sRelative Humidity -- Non-operating, 5% to 95% non-condensing Operating, 5% to 85% non-condensingRelative Humidity -- Operating, 5% to 85% non-condensingOperation Temperature -- 32 to 122F (0C to 50C)Insertion Rating -- 1,000+Drive Size -- Supports up to 1 Terabyte hard drivesWarranty -- 1 Year warranty

Features

Package Contents:

• 5.25" Tray-Less SATA Hot-Swap Hard Drive Bay
• 2 x Keys
• 1 x Screw Kit
• 1 x Instruction Manual



Certifications & Standards:

• RoHS
• CE
• FCC



Additional Information:

• Quickly and easily install or remove hard drives without having to open the chassis with the innovative trayless design
• Rubber shock absorbers, a solid aluminum construction and 50,000+ insertion rating ensures longevity from both the drives and bay
• Backed by a StarTech.com 2-year warranty and free lifetime technical support



Environmentally Friendly:
Yes



Compatibility:

PC



Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)



Country of Origin:
China



Specs

Controllers
Controller Type	Serial ATA/600
Physical Characteristics
Product Material	Aluminum
Form Factor	Internal
Weight (Approximate)	9.21 oz
Product Color	Black
Height	1.7"
Color Family	Black
Compatible Drive Bay Width	5.25"
Width	5.9"
Depth	7.2"
Warranty
Limited Warranty	2 Year
I/O Expansions
Number of Total Expansion Bays	1
Number of 3.5" Bays	1
Interfaces/Ports
Host Interface	Serial ATA/600
Drive Interface	SATA/600
General Information
Brand Name	StarTech.com
Manufacturer Website Address	http://www.startech.com
Marketing Information	This 3.5in SATA hard drive hot-swap bay allows you to install a 3.5in SATA drive in an available/unused 5.25in drive bay. To remove the drive, it's as simple as opening the front panel door; to re-insert a drive, simply insert the drive (connector first) until the door closes. The hot swap bay offers a trayless design that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments. To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller. Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution. With support for SATA HDD speeds up to 6.0 Gbps, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications. Designed to provide a durable and reliable operating experience, the mobile rack features a 50,000+ insertion rating and is backed by StarTech.com's 2-year warranty. More from the Manufacturer More from the Manufacturer
Product Type	Drive Bay Adapter
Product Name	5.25" Tray-Less SATA Hot-Swap Hard Drive Bay
Manufacturer	StarTech.com
Manufacturer Part Number	HSB100SATBK
Product Model	HSB100SATBK
Packaged Quantity	1 Each
Technical Information
Number of Hard Drives Supported	1
