Startech Pci Express [pcie] Gigabit Ethernet Multimode Sc Fiber Network Card Adapter Nic - 550m - Pci Express - 1 Port[s] - 1 X Sc Port[s] - Optical Fiber - Low-profile (pex1000mmsc2)
(No reviews yet)
Write a Review
- SKU:
- 18049976
- MPN:
- pex1000mmsc2
- Availability:
- Usually ships in 1-2 business days. In stock at our IL, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/23/2025 07:09:05 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 - 3 | and pay only $191.67 each 191.67 |
| Buy 4 - 6 | and pay only $188.14 each 188.14 |
| Buy 7 or above | and pay only $185.21 each 185.21 |
- Stock Update:
- 12/23/2025 07:09:05 AM PST
Description
This item is brand-new, factory sealed.

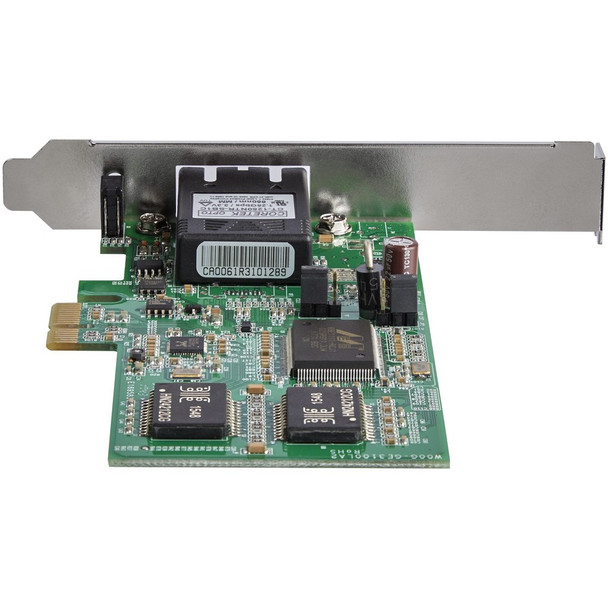

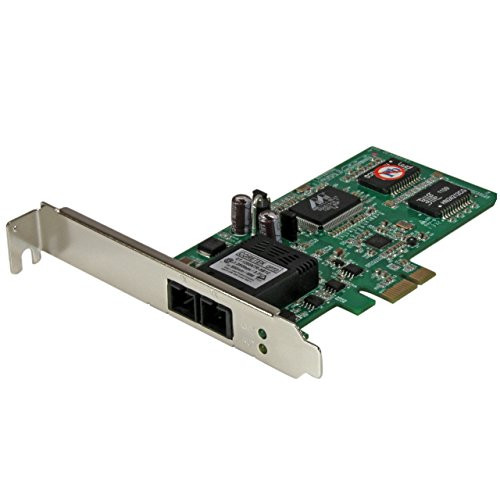

The PEX1000MMSC2 PCIe Gigabit Fiber Network Card lets you connect a desktop PC directly to a fiber optic network, by adding a multimode SC fiber port to your computer or server through an available PCI Express slot.Perfect for integrating into new or existing fiber infrastructure over great distances, this card delivers full Gigabit bandwidth to your computer up to 550 meters away from your network source, using multimode 50/125 micron duplex SC fiber cable. Plus, for a wider spectrum of compatibility, this versatile card offers fiber integration with a computer up to 220 meters away when deployed to network frameworks consisting of multimode 62.5/125 micron cabling.
With fiber connectivity, your network is not susceptible to electronic interference, which can be problematic with standard RJ45 copper networks, making this fiber card ideal for secure network setups.
Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, making it easy to install in small form-factor computers or 1U server and rackmount applications. Hardware
Ports:1
Interface:Fiber Ethernet
Bus Type:PCI Express
Card Type:Standard Profile (LP bracket incl.)
Industry Standards:IEEE802.3z 1000BASE-SX, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1
Chipset ID:
Realtek - RTL8168E
Marvell - 88E1111B1 Connector(s)
Connector Type(s):1 - PCI Express x1 Male

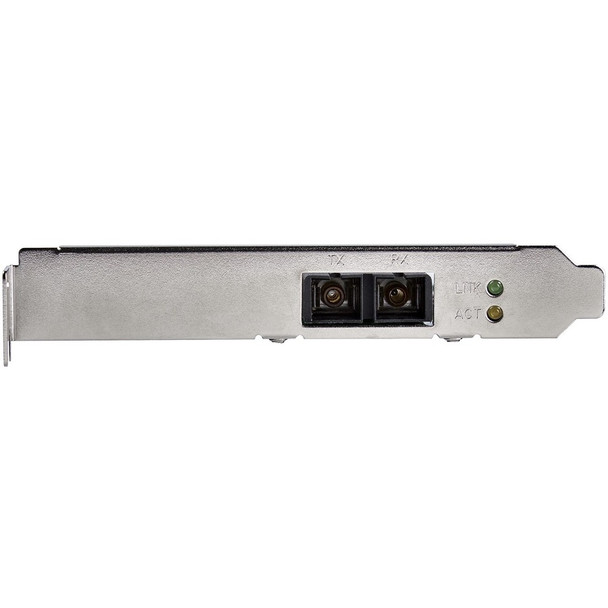

External Ports:1 - Fiber Optic SC Duplex Female
Performance
Maximum Data Transfer Rate:2000 Mbps (2 Gbps) - Full-Duplex
Buffer Size:48 KB
Compatible Networks:1000 Mbps (1 Gbps)
Full Duplex Support:Yes Software
OS Compatibility:
Windows 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64)
Windows Server 2012, 2008 R2, 2003
Mac OS 10.5 and up (Tested up to 10.9)
Linux 2.4.x / 2.6.x / 3.5.0
Microsoft Hyper-V Special Notes / Requirements
Note:Not compatible with 10/100 Mbps
Indicators
LED Indicators:1 - Link (Green)
1 - Activity (Yellow)
Power
Power Consumption:3.2W Max Included in Package
1 - 1 Port PCI Express Gigabit Fiber Network Card
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual Item Dimension (L"xW"xH"):
8.27 x 6.77 x 1.89
Weight:
0.68 lb
Warranty Information:
2 Year Warranty
Features
Package Contents:
EU RoHS
Yes
Yes
Computer
Taiwan
- 1 Port PCI Express Gigabit Fiber Network Card
- 1 x Low Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
Environmental Certification:
EU RoHS
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Operating System Compatibility:
Windows 8.1
Windows 8
Windows Vista Ultimate
Windows XP Professional
Windows 7 Ultimate
Windows Server 2012
Windows Server 2003
Windows Server 2008 R2 Foundation
Mac OS X 10.5 Leopard
Mac OS X 10.9 Mavericks
Linux 2.6.x
Linux 2.4
System Requirements:
- Windows® XP, Vista, 7, 8, 8.1, 10
- Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
- Mac OS X® 10.5 to 10.9
- Linux 2.4.x to 4.11.x LTS Versions only
- Microsoft Hyper-V®
Device Supported:
Computer
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Weight (Approximate) | 2.30 oz |
| Length | 4.7" |
| Height | 4.6" |
| Width | 0.7" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Host Interface | PCI Express x1 |
| Number of SC Ports | 1 |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | The PEX1000MMSC2 PCIe Gigabit Fiber Network Card lets you connect a desktop PC directly to a fiber optic network, by adding a multimode SC fiber port to your computer or server through an available PCI Express slot. Perfect for integrating into new or existing fiber infrastructure over great distances, this card delivers full Gigabit bandwidth to your computer up to 550 meters away from your network source, using multimode 50/125 micron duplex SC fiber cable. Plus, for a wider spectrum of compatibility, this versatile card offers fiber integration with a computer up to 220 meters away when deployed to network frameworks consisting of multimode 62.5/125 micron cabling. With fiber connectivity, your network is not susceptible to electronic interference, which can be problematic with standard RJ45 copper networks, making this fiber card ideal for secure network setups. Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, making it easy to install in small form-factor computers or 1U server and rackmount applications. Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer |
| Product Type | Gigabit Ethernet Card |
| Product Name | 1 Port PCI Express Gigabit Fiber Network Card |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEX1000MMSC2 |
| Packaged Quantity | 1 Each |
| Media & Performance | |
| Maximum Data Transfer Rate | 2 Gbit/s |
| Media Type Supported | Optical Fiber |
| Network & Communication | |
| Network Technology | 1000Base-SX |
