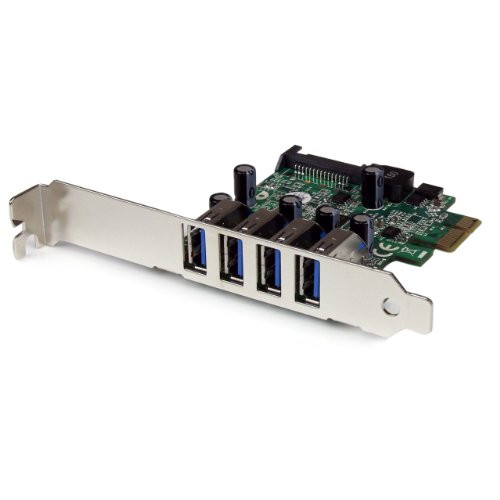

StarTech.com 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP - SATA Power (PEXUSB3S4V)
(No reviews yet)
Write a Review
- SKU:
- 18060414
- MPN:
- pexusb3s4v
- Availability:
- Usually ships the same or next business day. In stock at our CA, GA, IL warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 05/19/2023 10:05:24 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 3 | and pay only $48.13 each 48.13 |
| Buy 4 - 9 | and pay only $47.11 each 47.11 |
| Buy 10 or above | and pay only $45.34 each 45.34 |
- Stock Update:
- 05/19/2023 10:05:24 AM PST
Description
This item is brand-new, factory sealed.
The PEXUSB3S4V PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system. SuperSpeed USB 3.0 provides up to 5 Gbps of data bandwidth, while remaining backward compatible with existing USB 2.0 devices at 480Mbps.Using a "stacked" port layout that places the ports one on top of the other, more ports are able to fit into a smaller space. This 4-port PCIe USB 3.0 adapter enables all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system.
Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.Hardware
Bus Type:PCI Express
Card Type:Standard Profile (LP bracket incl.)
Chipset ID:NEC uPD720201
Interface:PCI Express
Port Style:Integrated on Card
Ports:4Connector(s)
Connector Type(s):1 - PCI Express x1 Male
External Ports:4 - USB 3.0 A (9 pin SuperSpeed) Female
Internal Ports:1 - SATA Power (15 pin) Plug
Performance
Type and Rate:USB 3.0 - 5 Gbit/sOS Compatibility
Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit)
System and Cable Requirements
Available PCI Express expansion slotIncluded in Package
1 - PCI Express USB 3.0 Card
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual Item Dimension (L"xW"xH"):
6.5 x 5.12 x 1.18
Weight:
1 lb
Warranty Information:
2 Year Warranty
Features
Package Contents:
Yes
OS Compatibility:
Yes
PC
Taiwan
- 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP
- 1 x Low Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
Environmental Certification:
RoHS
REACH
WEEE
TAA Compliant:
Yes
Additional Information:
OS Compatibility:
- Windows® XP, Vista, 7, 8, 8.1, 10
- Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Environmentally Friendly:
Yes
Platform Supported:
PC
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Weight (Approximate) | 2.40 oz |
| Length | 3" |
| Product Color | Green |
| Height | 2.7" |
| Width | 0.7" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Number of SATA Ports | 1 |
| Number of USB 3.2 Ports | 4 |
| Total Number of USB Ports | 4 |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | The PEXUSB3S4V PCI Express USB 3.2 Gen 1 Card (with SATA Power) adds 4 external USB 3.2 Gen 1 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices. Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details. The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.2 Gen 1 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket. Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply. Backed by a StarTech.com 2-year warranty and free lifetime technical support. UASP is supported in Windows 8 and Server 2012. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance. At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources. Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive. More from the Manufacturer |
| Product Type | USB Adapter |
| Product Name | 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEXUSB3S4V |
| Packaged Quantity | 1 |
| Media & Performance | |
| UASP Support | Yes |
| Software | |
| Operating System Supported |
|
| Technical Information | |
| Host Interface | PCI Express x1 |
