StarTech StarTech 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot (S25SLOTR)

(No reviews yet) Write a Review
SKU:
18139677
MPN:
s25slotr
Availability:
Usually ships the same or next business day. In stock at our CA, IN, MS, NJ, TX warehouses.
Shipping:
Calculated at Checkout
Stock Update:
12/17/2025 11:40:59 PM PST
  • Main
  • Alternate-Image2
  • Alternate-Image1
  • ALTIMAGE1
  • ALTIMAGE2
  • ALTIMAGE3
  • ALTIMAGE4
$53.10

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 2 and pay only $48.97 each 48.97
Buy 3 and pay only $45.95 each 45.95
Buy 4 - 9 and pay only $44.97 each 44.97
Buy 10 - 24 and pay only $43.26 each 43.26
Buy 25 or above and pay only $42.41 each 42.41
Stock Update:
12/17/2025 11:40:59 PM PST

Description



This item is brand-new, factory sealed.

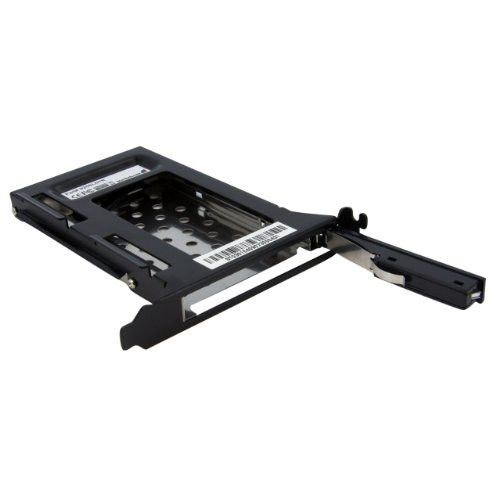

The S25SLOTR Trayless Hard Drive Rack can be installed into an available (full profile) PCI expansion card slot, providing easy access to a bare 2.5" SATA hard drive from the rear panel of a computer case.Unlike conventional hard drive enclosures, the S25SLOTR hard drive rack doesnt require that a drive be installed in a drive tray, saving the time and hassle involved in having to mount or install the hard drive for access to drive contents.Once installed in a PCI slot (and accompanying rear panel bracket), installing a 2.5" SATA HDD is as simple as inserting it into the trayless rack. To remove the hard drive, simply hit the eject button to unlock the access door, allowing the drive to be pulled out of the computer without having to dismount the drive. The enclosure supports up to 500GB maximum hard drive capacity.FeaturesCompletely OS IndependentDoor mounted LED indicator for Power and HD Activity, allows you to visually observe enclosure statusDriver free support and tool-less design for HD installationLatchable doorSupports almost all 2.5in hard drives, 12mm high drives not supportedSupports hot swap hard drive installationsSupports maximum data transfer rates up to 3.0 Gbps (using SATA II drive)Supports SATA II hard drives, backward compatible with SATA 150 hard drivesThe maximum supported hard drive capacity is 500GBVented aluminum and steel enclosureTechnical SpecificationsColor : BlackMax. HD Capacity : 500 GBEnclosure Type : Aluminum and SteelLED Indicators : 1 - Solid - Power On ,Blinking - ActivityNumber of Drives : 1Compatible Drives : 2.5" SATAHot Swap Capability : YesHost Connectors : 1 - 7 pin SATA DATA Male

Features

Package Contents:
  • 2.5in SATA Removable HDD Bay for PC Slot
  • 1 x 20in SATA Cable
  • 1 x LP4 SATA Breakout Cable
  • 1 x Hard Drive Protective Film
  • 1 x Mounting Screws
  • 1 x Instruction Manual



Certifications & Standards:
  • CE
  • FCC



Additional Information:
  • Utilize a free expansion card slot to add a removable 2.5" SATA hard drive bay
  • Vented aluminum/steel design and a 50,000+ insertion rating ensures reliability of the drive and drive rack
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support



Environmentally Friendly:
Yes



Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)



Country of Origin:
Taiwan



Specs

Controllers
Controller TypeSerial ATA/600
Physical Characteristics
Product Material
Form FactorInternal
Weight (Approximate)5.90 oz
Product ColorBlack
Height4.7"
Color FamilyBlack
Width0.8"
Depth5.7"
Warranty
Limited Warranty2 Year
I/O Expansions
Number of 2.5" Bays1
Number of Total Expansion Bays1
Interfaces/Ports
Host InterfaceSerial ATA/600
Drive InterfaceSATA/600
General Information
Brand NameStarTech.com
Manufacturer Website Addresshttp://www.startech.com
Marketing InformationThe S25SLOTR Trayless Hard Drive Rack can be installed into an available (full profile) PCI expansion card slot, providing easy access to a bare 2.5" SATA hard drive or solid state drive (SSD) from the rear panel of a computer case.
Unlike conventional hard drive enclosures, the S25SLOTR hard drive rack doesn't require that a drive be installed in a drive tray, saving the time and hassle involved in having to mount or install the hard drive for access to drive contents.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
Once installed in a PCI slot (and accompanying rear panel bracket), installing a 2.5" SATA HDD is as simple as inserting it into the trayless rack. To remove the hard drive, simply hit the eject button to unlock the access door, allowing the drive to be pulled out of the computer without having to dismount the drive.
More from the Manufacturer
More from the Manufacturer
Product TypeDrive Slot Adapter
Product Name2.5in SATA Removable HDD Bay for PC Slot
ManufacturerStarTech.com
Manufacturer Part NumberS25SLOTR
Packaged Quantity1 Each
Network & Communication
Wireless LANNo
Technical Information
Number of Hard Drives Supported1
Number of Hard Drives InstalledNo
Number of Solid State Drive InstalledNo
Number of Solid State Drive Supported1
