StarTech USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m (SV565DUTPU)

(No reviews yet) Write a Review
SKU:
18145862
MPN:
sv565dutpu
Availability:
Usually ships the same or next business day. In stock at our IN, MS, NJ, TX warehouses.
Shipping:
Calculated at Checkout
Stock Update:
04/18/2026 11:42:42 PM PST
  • Main
  • Top

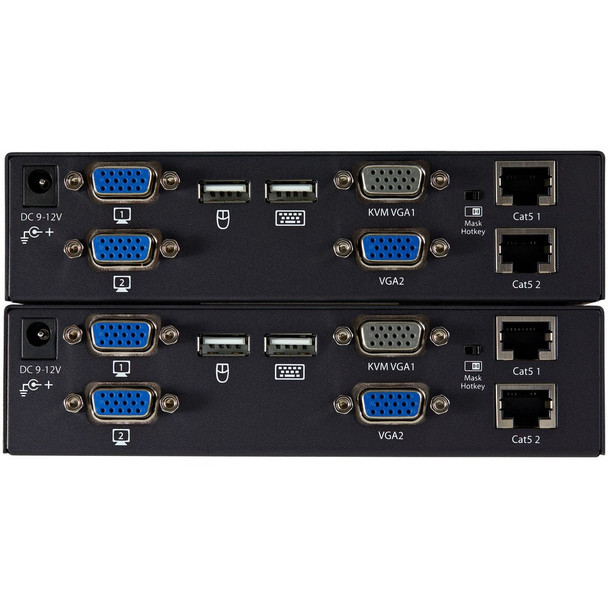

  • Rear
  • ALTIMAGE1
  • ALTIMAGE2
  • ALTIMAGE3
  • ALTIMAGE4
$516.93
Stock Update:
04/18/2026 11:42:42 PM PST

Description



This item is brand-new, factory sealed.

Operate a Dual VGA, USB-enabled PC up to 650ft away, as if it was installed locally. The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution. The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch. Backed by a StarTech.com 3-year warranty and free lifetime technical support.



Package Contents:
  • USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m
  • 2 x 6 ft 2-in-1 USB VGA KVM Cables
  • 2 x Packs Rubber Feet
  • 1 x Power Adapter
  • 1 x Instruction Manual

Features

Package Contents:
  • 1 x Local Unit
  • 1 x Remote Unit
  • 2 x 6 ft 2-in-1 USB VGA KVM Cables
  • 8 x Rubber Feet
  • 1 x Universal Power Adapter (NA/EU/UK/AU)
  • 1 x Instruction Manual



TAA Compliant:
Yes



Environmentally Friendly:
Yes



Environmental Compliance:

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)



Country of Origin:
Taiwan



Specs

Power Description
Input Voltage Range110V AC to 240V AC
Input Voltage
Power Consumption5.40 W
Physical Characteristics
Form FactorDesktop
Transmitter Weight (Approximate)1.18 lb
Receiver Width3.10"
Receiver Height1.60"
Product ColorBlack
Receiver Depth6.10"
Transmitter Depth6.10"
Receiver Weight (Approximate)1.18 lb
Color FamilyBlack
Transmitter Height1.60"
Transmitter Width3.10"
Warranty
Limited Warranty3 Year
Interfaces/Ports
VGAYes
Number of USB Ports4
Network (RJ-45)Yes
USBYes
Number of VGA Ports8
Number of Network (RJ-45) Ports4
Video
Maximum Video Resolution1920 x 1200
Graphic ModeWUXGA
General Information
Brand NameStarTech.com
Manufacturer Website Addresshttp://www.startech.com
Marketing InformationThe SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution. The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch. This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support. More from the Manufacturer
More from the Manufacturer
Product TypeKVM Console/Extender
Product NameUSB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m
ManufacturerStarTech.com
Manufacturer Part NumberSV565DUTPU
Packaged Quantity1 Kit
Technical Information
Number of Computers Supported2
KVM TechnologyAnalog
Maximum Operating Distance650 ft
Connectivity TechnologyWired
Number of Local Users Supported2
